Kubernetes PersistentVolume and PVC with Examples

This walkthrough uses the pv-lab namespace. You will:

• Create a static hostPath PersistentVolume for lab use
• Bind a PersistentVolumeClaim
• Mount the claim in a Pod
• Confirm that data survives Pod deletion

How PersistentVolumes and Claims Work

A PersistentVolume (PV) is storage made available to the cluster. A PersistentVolumeClaim (PVC) is a request for that storage. Together they work like this:

• The PV registers storage in the cluster
• The PVC requests size, access mode, and class
• The Pod consumes storage through the claim name, not by naming the PV directly

Persistent storage can outlive an individual Pod. When you delete the Pod, the claim and PV normally remain until you remove them.

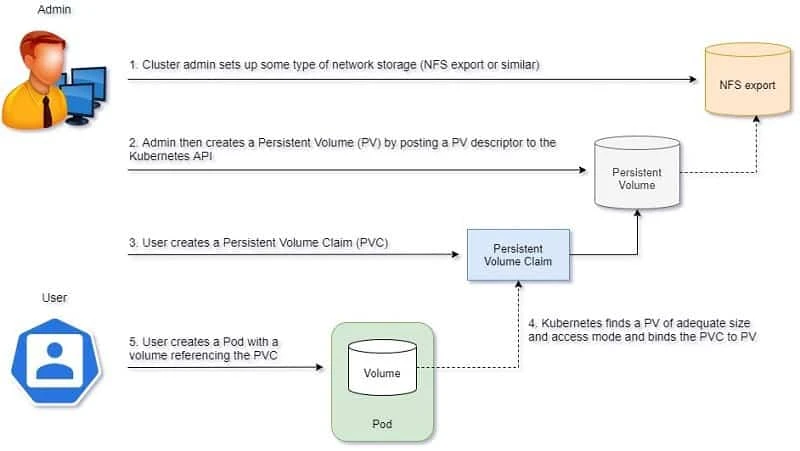

The relationship in one line:

Pod → PersistentVolumeClaim → PersistentVolume → storage backend

Kubernetes volume vs PersistentVolume

Pod-level volumes are defined inside Pod YAML. PersistentVolumes are separate cluster objects bound through claims.

For emptyDir, ConfigMap, Secret, projected, and hostPath mounts, see Kubernetes volumes. This article focuses on PV and PVC binding and consumption.

PersistentVolume and PVC YAML

A static PV declares capacity, access modes, reclaim policy, and a storage source. For this lab:

• hostPath maps to a directory on a single node
• Kubernetes documents hostPath PVs as suitable for single-node testing
• PV node affinity constrains Pods to the node that can access the storage

This lab pins the PV to worker01 so every Pod using the claim reaches the same node directory. Run kubectl get nodes and replace worker01 if your worker uses another hostname.

Save this manifest as lab-pv.yaml:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: lab-pv
  labels:
    type: local
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - worker01
  hostPath:
    path: /tmp/pv-lab-data
    type: DirectoryOrCreate

Key PV fields:

• spec.capacity.storage — size Kubernetes advertises for binding
• spec.accessModes — supported mount modes (see the access mode table below)
• spec.persistentVolumeReclaimPolicy — what happens after the claim is deleted
• spec.storageClassName — must match the claim when you use static binding with a named class
• spec.nodeAffinity — limits which node can run Pods that use this volume
• spec.hostPath.path — node directory used in this lab (not a production pattern)

For this hostPath lab, capacity.storage: 1Gi:

• Participates in PV/PVC matching
• Does not impose a 1 GiB filesystem quota
• Does not count toward Pod ephemeral-storage consumption

A hostPath directory can still consume more node disk space. Monitor and clean the node path separately.

Save this manifest as lab-pvc.yaml:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: lab-pvc
  namespace: pv-lab
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 500Mi
  storageClassName: manual

Key PVC fields:

• spec.accessModes — mount mode the claim requests
• spec.resources.requests.storage — minimum size the binder must satisfy
• spec.storageClassName — must match the PV when both objects set a class name

The claim must match an available PV:

• Requested storage and access mode must be compatible
• A claim can bind to a larger PV, but not to one smaller than its request
• storageClassName: manual on both objects avoids default StorageClass dynamic provisioning during this lab

Access modes

Access modes describe storage capabilities and binding requirements. Support depends on the underlying storage system.

ReadWriteOncePod notes for this lab:

• Supported only for CSI volumes
• Cannot be used with the hostPath PV in this walkthrough
• Became stable in Kubernetes v1.29, but remains CSI-only

Access modes define what the volume supports and what the scheduler and attach logic can allow. They do not automatically enforce write protection after a volume is mounted in every scenario.

Create and Bind a Static PV and PVC

Follow this binding sequence:

• Create the pv-lab namespace
• Register the PV and wait until it is Available
• Create the PVC and wait until it is Bound
• Inspect both objects to confirm the binding

Create the lab namespace first:

kubectl create namespace pv-lab

Sample output:

namespace/pv-lab created

Apply the PersistentVolume:

kubectl apply -f lab-pv.yaml

Sample output:

persistentvolume/lab-pv created

Wait for the PV:

kubectl wait --for=jsonpath='{.status.phase}'=Available pv/lab-pv --timeout=30s

Sample output:

persistentvolume/lab-pv condition met

Confirm the PV is Available:

kubectl get pv lab-pv

Sample output:

NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
lab-pv   1Gi        RWO            Retain           Available           manual         <unset>                          0s

Available means the PV is registered and waiting for a matching claim.

Apply the PersistentVolumeClaim:

kubectl apply -f lab-pvc.yaml

Sample output:

persistentvolumeclaim/lab-pvc created

Wait for binding before displaying Bound output:

kubectl wait --for=jsonpath='{.status.phase}'=Bound pvc/lab-pvc -n pv-lab --timeout=60s

Sample output:

persistentvolumeclaim/lab-pvc condition met

List the bound claim:

kubectl get pvc -n pv-lab

Sample output:

NAME      STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
lab-pvc   Bound    lab-pv   1Gi        RWO            manual         <unset>                 2s

The claim moved from Pending to Bound once the binder found lab-pv.

Confirm the PV is now Bound to the claim:

kubectl get pv lab-pv

Sample output:

NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM            STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
lab-pv   1Gi        RWO            Retain           Bound    pv-lab/lab-pvc   manual         <unset>                          3s

The PV phase is now Bound and the CLAIM column shows pv-lab/lab-pvc.

Inspect the bound claim:

kubectl describe pvc lab-pvc -n pv-lab

Sample output:

Name:          lab-pvc
Namespace:     pv-lab
StorageClass:  manual
Status:        Bound
Volume:        lab-pv
Capacity:      1Gi
Access Modes:  RWO
VolumeMode:    Filesystem

Volume: lab-pv confirms which PV satisfied the claim.

Inspect the PV side:

kubectl describe pv lab-pv

Sample output:

Name:            lab-pv
Status:          Bound
Claim:           pv-lab/lab-pvc
Reclaim Policy:  Retain
Access Modes:    RWO
Capacity:        1Gi
Source:
    Type:          HostPath (bare host directory volume)
    Path:          /tmp/pv-lab-data

How Kubernetes matches claims and volumes

The binder compares the claim against Available PVs. Main requirements:

• Requested storage size — PV capacity must be at least the claim request
• Compatible access mode — the PV must support the mode the claim requests
• storageClassName — must match when both objects set a class name
• Volume mode — Filesystem versus Block must align
• Optional label selector — claim can require PV labels
• PV availability — phase must be Available (not Bound or Released)

A claim can bind to a larger compatible PV, but not to one smaller than its request. This article does not cover internal control-plane binding implementation detail.

Mount the PVC and Verify Persistence

The Pod references the claim name, not the PV name:

• claimName in the Pod must match the PVC in the same namespace
• The scheduler applies the bound PV's node affinity to Pods using that claim
• Pod manifests do not need their own nodeSelector for this lab

Write data through the claim

Save pv-writer.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: pv-writer
  namespace: pv-lab
spec:
  containers:
    - name: app
      image: busybox:1.36
      command: ["sh", "-c", "echo lab-data-2026 > /data/persist.txt && sleep 3600"]
      volumeMounts:
        - name: data
          mountPath: /data
  volumes:
    - name: data
      persistentVolumeClaim:
        claimName: lab-pvc

spec.volumes[].persistentVolumeClaim.claimName must match the PVC name in the same namespace.

Apply the writer Pod:

kubectl apply -f pv-writer.yaml

Wait until the Pod is ready and the volume is mounted:

kubectl wait --for=condition=Ready pod/pv-writer -n pv-lab --timeout=90s

The Pod is ready when the volume is bound and mounted.

Verify the mounted file exists:

kubectl exec pv-writer -n pv-lab -- sh -c 'until [ -s /data/persist.txt ]; do sleep 1; done; cat /data/persist.txt'

Sample output:

lab-data-2026

The file was written on the mounted PVC path inside the container.

Recreate the Pod and read the data

Persistence depends on the PV and underlying storage, not on the container filesystem layer. To prove that:

• Delete the writer Pod but keep the PVC
• Create a replacement Pod that mounts the same claim
• Read the file from the mounted path with kubectl exec

kubectl delete pod pv-writer -n pv-lab --wait=true

The PVC and PV remain; only the Pod object is removed.

Create a reader Pod that only reads the file. Save pv-reader.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: pv-reader
  namespace: pv-lab
spec:
  containers:
    - name: app
      image: busybox:1.36
      command: ["sh", "-c", "sleep 3600"]
      volumeMounts:
        - name: data
          mountPath: /data
  volumes:
    - name: data
      persistentVolumeClaim:
        claimName: lab-pvc

Apply the reader Pod and wait until it is ready:

kubectl apply -f pv-reader.yaml

kubectl wait --for=condition=Ready pod/pv-reader -n pv-lab --timeout=90s

Read the persisted file from the replacement Pod:

kubectl exec pv-reader -n pv-lab -- sh -c 'until [ -s /data/persist.txt ]; do sleep 1; done; cat /data/persist.txt'

Sample output:

lab-data-2026

The same content appears after Pod replacement because the data lives on the bound volume behind the claim.

Delete the reader Pod when finished:

kubectl delete pod pv-reader -n pv-lab --ignore-not-found=true

Select a Static PV Using Labels

When several static PVs match size and class:

• Add labels on the PV
• Add a selector on the PVC to pick a specific volume

This demonstration can coexist with the main lab because:

• Selector resources use different names
• gold-pvc excludes lab-pv by requiring tier: gold

Both selector PVs use the same worker01 node affinity as lab-pv.

Create two PVs with different tier labels. Save both PV definitions as selector-pvs.yaml:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-gold
  labels:
    tier: gold
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - worker01
  hostPath:
    path: /tmp/pv-gold
    type: DirectoryOrCreate
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-silver
  labels:
    tier: silver
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - worker01
  hostPath:
    path: /tmp/pv-silver
    type: DirectoryOrCreate

Register both selector PVs:

kubectl apply -f selector-pvs.yaml

Sample output:

persistentvolume/pv-gold created
persistentvolume/pv-silver created

Apply the labeled claim as gold-pvc.yaml:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gold-pvc
  namespace: pv-lab
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 500Mi
  storageClassName: manual
  selector:
    matchLabels:
      tier: gold

Apply the claim:

kubectl apply -f gold-pvc.yaml

Wait for binding before displaying Bound output:

kubectl wait --for=jsonpath='{.status.phase}'=Bound pvc/gold-pvc -n pv-lab --timeout=60s

Sample output:

persistentvolumeclaim/gold-pvc condition met

List the bound selector claim:

kubectl get pvc gold-pvc -n pv-lab

Sample output:

NAME       STATUS   VOLUME    CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
gold-pvc   Bound    pv-gold   2Gi        RWO            manual         <unset>                 2s

Compare both selector PVs:

kubectl get pv pv-gold pv-silver

Sample output:

NAME        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM             STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
pv-gold     2Gi        RWO            Retain           Bound       pv-lab/gold-pvc   manual         <unset>                          85s
pv-silver   2Gi        RWO            Retain           Available                     manual         <unset>                          85s

pv-gold bound to the claim; pv-silver stayed Available because the selector excluded it. For general selector syntax, see Kubernetes labels and selectors.

To demonstrate Released with Retain:

• Delete the selector claim
• Wait until the bound PV reports Released
• Inspect the PV before deleting the selector PV objects

Remove the claim first:

kubectl delete pvc gold-pvc -n pv-lab --wait=true

Wait until the bound PV reports Released:

kubectl wait --for=jsonpath='{.status.phase}'=Released pv/pv-gold --timeout=30s

Sample output:

persistentvolume/pv-gold condition met

Inspect the Released PV:

kubectl get pv pv-gold

Sample output:

NAME      CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS     CLAIM             STORAGECLASS   AGE
pv-gold   2Gi        RWO            Retain           Released   pv-lab/gold-pvc   manual         85s

A PV using Retain:

• Moves to Released after the claim is deleted
• Stays unavailable for another claim until it is manually reclaimed

Then delete the selector PVs:

kubectl delete pv pv-gold pv-silver

PV and PVC Lifecycle

Phases describe binding and lifecycle state. They are separate from Pod STATUS.

PV and PVC phases

PersistentVolume phases

New PVs initially enter Pending, although the transition to Available is often too quick to notice with kubectl get.

PersistentVolumeClaim phases

A new claim may show Pending until a matching PV exists or the binder completes matching. After you apply a compatible PV, expect:

• Pending → Bound on the claim
• Available → Bound on the volume

Reclaim policies

Reclaim policy applies to the PV and controls what happens after the bound PVC is deleted.

Recycle is obsolete and should not be used.

With Retain, deleting the claim leaves the PV in Released. The selector demo above demonstrated this transition on pv-gold before those PV objects were deleted. To reuse a retained volume, you normally:

• Delete the PV object
• Clean the backend data
• Create a new PV before binding another claim

Backend-specific cleanup and PV reuse are outside this article.

Delete and clean up storage

Each delete step has a different effect:

• Delete the Pod — does not remove the PVC or PV; the claim stays Bound and the data remains on the volume
• Delete the PVC — with Retain, the PV moves to Released and data remains until an administrator handles it; with Delete, Kubernetes may remove the PV and underlying storage when the provisioner supports deletion
• Delete the PV — removes the Kubernetes record; effect on underlying files depends on volume type and whether a claim still references the volume

Troubleshoot a PVC Stuck in Pending

Start troubleshooting with:

• kubectl describe pvc for claim Events
• kubectl get pv for available volumes

kubectl describe pvc <claim-name> -n <namespace>

List available PVs:

kubectl get pv

Use PVCs with Deployments

A Deployment Pod can mount a PVC using the same pattern as a standalone Pod:

• persistentVolumeClaim under spec.volumes
• Matching volumeMounts on the container

Sharing one claim across replicas works only when:

• The storage backend supports the attachment pattern
• The access mode allows the intended number of node attachments
• You do not assume one ReadWriteOnce claim safely backs many replicas spread across nodes

For per-replica storage identity and ordered rollout with claims, see Kubernetes StatefulSets.

What's Next

• Kubernetes StorageClass and Dynamic Volume Provisioning
• Kubernetes subPath Volume Mounts with Examples
• Fix Pending PVC, FailedMount and Volume Attachment Errors

References

• Persistent Volumes — Kubernetes documentation
• PersistentVolumeClaim API

Summary

You registered a static PersistentVolume, confirmed it was Available, created a matching PersistentVolumeClaim, and then confirmed that both objects became Bound. The Pod mounted the claim by name through persistentVolumeClaim.claimName, and data written to the mount path survived Pod deletion because it lives on the volume behind the claim, not in the container image layer.

Access modes and reclaim policy matter as much as YAML shape:

• ReadWriteOnce permits read-write mounting from a single node
• Retain leaves a Released PV after claim deletion until an administrator handles reuse
• Label selectors let you pick a specific static PV when several compatible volumes exist

For Pod-level scratch and configuration mounts, use Pod volumes instead of PV objects. When replicas need stable storage identity or ordered binding, move to StatefulSet patterns. StorageClasses and dynamic provisioning build on the same PVC model for production clusters.
