Kubernetes Networking Model, CNI and kube-proxy

Kubernetes networking is easier to reason about as three traffic paths: containers inside one Pod, Pod IP to Pod IP, and Pod to Service ClusterIP. This rewrite walks those paths on a kubeadm cluster running Calico and kube-proxy, and keeps plugin-specific details labeled as examples rather than universal rules.

Kubernetes networking requirements

The platform model expects these properties:

• Every Pod receives its own cluster-routable IP.
• Containers in one Pod share a network namespace and can use localhost.
• Pods should communicate directly across nodes without application-visible NAT under the standard model.
• Nodes must be able to reach Pod IPs.
• Services provide stable virtual access while backend Pods change.

Your CNI product implements the Pod IP and node reachability parts. kube-proxy (or a replacement) implements most Service virtual IP behavior on Linux nodes.

Identify cluster address ranges

Separate three ranges before debugging routes:

Those ranges must not overlap. If a Service CIDR collides with a Pod or node network, packets can take the wrong path and ClusterIP proxying becomes unreliable.

On this kubeadm lab, read the cluster networking stanza from the kubeadm ConfigMap:

kubectl -n kube-system get cm kubeadm-config -o yaml | grep -A5 'networking:'

networking:
      dnsDomain: cluster.local
      podSubnet: 192.168.0.0/16
      serviceSubnet: 10.96.0.0/12

Confirm the controller-manager arguments match:

kubectl -n kube-system get pod kube-controller-manager-k8s-cp -o yaml | grep -E 'cluster-cidr|service-cluster-ip-range'

- --cluster-cidr=192.168.0.0/16
    - --service-cluster-ip-range=10.96.0.0/12

Service ClusterIPs in this cluster fall under 10.96.0.0/12 (for example 10.96.0.10 for kube-dns). Pod IPs fall under the Pod subnet; Calico IPAM may allocate smaller blocks inside that range on each node.

Networking inside one Pod

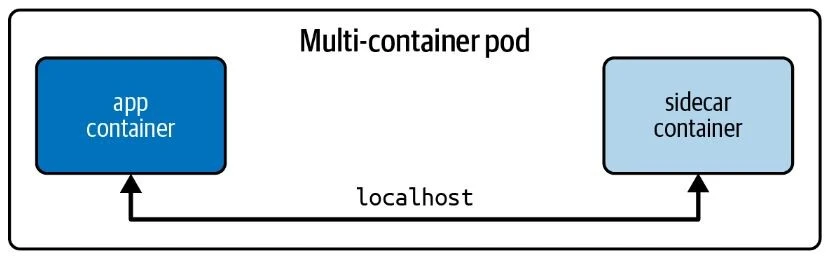

Containers in the same Pod share one network namespace:

• They share the Pod IP and the port space.
• They reach each other through localhost.
• Two containers cannot both bind the same port.
• Volumes and process namespaces are separate concerns from networking.

Create a two-container Pod so the client talks to nginx on loopback:

kubectl create ns net-model-demo

namespace/net-model-demo created

kubectl apply -f - <<'EOF'
apiVersion: v1
kind: Pod
metadata:
  name: shared-netns
  namespace: net-model-demo
spec:
  containers:
  - name: web
    image: nginx:1.27-alpine
    ports:
    - containerPort: 80
  - name: client
    image: busybox:1.36
    command:
    - sh
    - -c
    - |
      until wget -qO- http://127.0.0.1/; do
        sleep 1
      done
      sleep 3600
EOF

pod/shared-netns created

kubectl -n net-model-demo wait --for=condition=Ready pod/shared-netns --timeout=90s

pod/shared-netns condition met

kubectl -n net-model-demo logs shared-netns -c client --tail=5

<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

The client reached the web container without using a Service or a second Pod IP. Multi-container patterns beyond this networking detail are covered in sidecar and multi-container Pods.

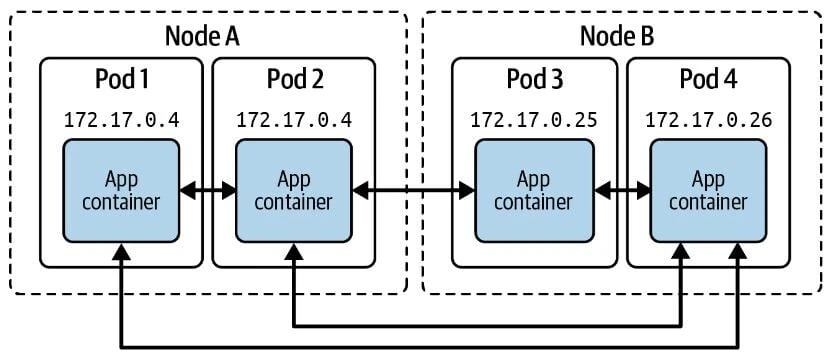

Pod-to-Pod traffic on the same node

When two Pods share a node, traffic stays on that host’s CNI data plane:

Source Pod interface
  ↓
Pod network namespace
  ↓
CNI-created host networking
  ↓
Destination Pod interface

Do not assume every plugin uses the same bridge, eBPF map, or veth naming. The portable idea is that the source uses the destination Pod IP, and the node-local CNI plumbing delivers the packet.

On this Calico lab, local Pods appear as cali… interfaces and host routes for those Pod IPs. Same-node Pod-to-Pod looks identical at the application layer: wget or curl to the peer Pod IP. The next section creates a cross-node lab to show how remote Pod CIDR reachability works.

Manifest and API checks with curl are covered in the curl command guide.

Pod-to-Pod traffic across nodes

Across nodes, the source node must know how to reach the destination Pod CIDR. The CNI implementation supplies routes, overlays, tunnels, or another data plane. The destination Pod IP remains the application-visible destination.

Create two nginx Pods on different nodes and a Service for later sections. Both Pods are pinned with nodeName: net-a on the worker and net-b on the control plane. nodeName bypasses the scheduler, so a control-plane NoSchedule taint does not block net-b:

kubectl apply -f - <<'EOF'
apiVersion: v1
kind: Pod
metadata:
  name: net-a
  namespace: net-model-demo
  labels:
    app: net-demo
    role: a
spec:
  nodeName: worker01
  containers:
  - name: web
    image: nginx:1.27-alpine
    ports:
    - containerPort: 80
---
apiVersion: v1
kind: Pod
metadata:
  name: net-b
  namespace: net-model-demo
  labels:
    app: net-demo
    role: b
spec:
  nodeName: k8s-cp
  containers:
  - name: web
    image: nginx:1.27-alpine
    ports:
    - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: net-demo
  namespace: net-model-demo
spec:
  selector:
    app: net-demo
  ports:
  - port: 80
    targetPort: 80
EOF

pod/net-a created
pod/net-b created
service/net-demo created

Wait until both Pods are Ready:

kubectl -n net-model-demo wait \
  --for=condition=Ready \
  pod/net-a pod/net-b \
  --timeout=120s

pod/net-a condition met
pod/net-b condition met

List the Pods and confirm they landed on different nodes:

kubectl -n net-model-demo get pods -o wide

NAME    READY   STATUS    RESTARTS   AGE   IP               NODE       NOMINATED NODE   READINESS GATES
net-a   1/1     Running   0          25s   192.168.5.7      worker01   <none>           <none>
net-b   1/1     Running   0          3s    192.168.62.164   k8s-cp     <none>           <none>

From net-a on worker01, fetch nginx on net-b by Pod IP:

NET_B_IP=$(
  kubectl -n net-model-demo get pod net-b \
    -o jsonpath='{.status.podIP}'
)

kubectl -n net-model-demo exec net-a -- \
  wget -qO- --timeout=3 "http://${NET_B_IP}/" | head -3

<!DOCTYPE html>
<html>
<head>

The client used the remote Pod IP directly. On this Calico example, worker01 has a route toward the control-plane Pod block via the node network:

ip route | grep -E '192.168.62|192.168.5'

192.168.5.0 dev cali8c36ee9f3dd scope link metric 1024
blackhole 192.168.5.0/26 proto 80
192.168.5.7 dev calif29d8e222be scope link metric 1024
192.168.62.128/26 via 192.168.56.108 dev enp0s8 proto 80 onlink

That via 192.168.56.108 line is Calico programming reachability for a remote Pod CIDR block. Other CNIs may show VXLAN devices, WireGuard interfaces, or pure L3 routes instead — treat the mechanism as plugin-specific, and treat “Pod IP reaches Pod IP” as the model.

CNI’s role in the data plane

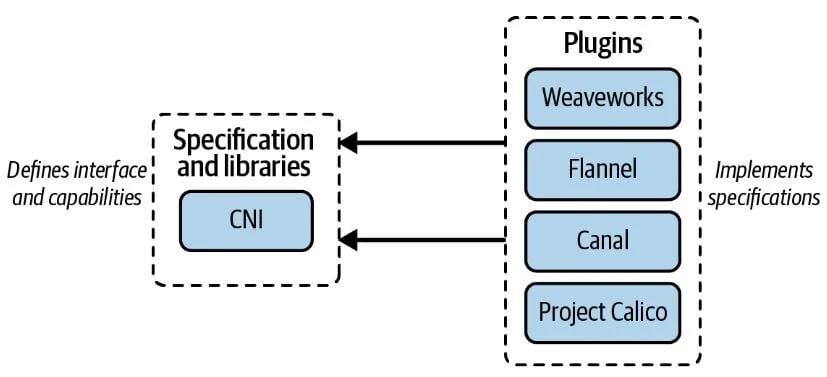

When the runtime creates a Pod sandbox, it invokes the configured CNI plugins. On each node you typically find:

• Plugin config under /etc/cni/net.d/
• Plugin binaries under /opt/cni/bin/
• Optional node agents and controllers from the networking product

List the CNI config on a worker:

ls /etc/cni/net.d/

10-calico.conflist
calico-kubeconfig

The Calico conflist is JSON. The following abridged interpretation highlights the relevant plugins and is not literal file syntax:

name: k8s-pod-network
plugins:
  - type: calico
    ipam:
      type: calico-ipam
    policy:
      type: k8s
  - type: portmap

Cluster networking products often add DaemonSets such as calico-node. Some also implement NetworkPolicy and, in certain modes, Service proxy replacement. Interface-level CNI versus CSI versus CRI boundaries are covered in CNI, CSI, and CRI interfaces.

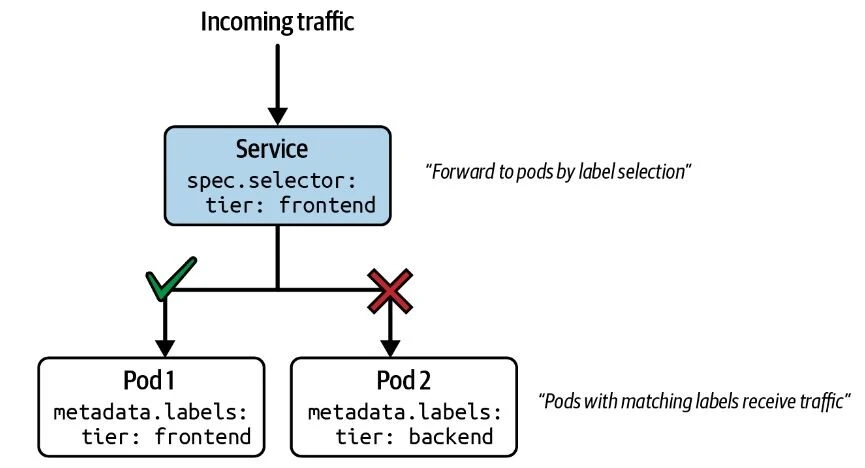

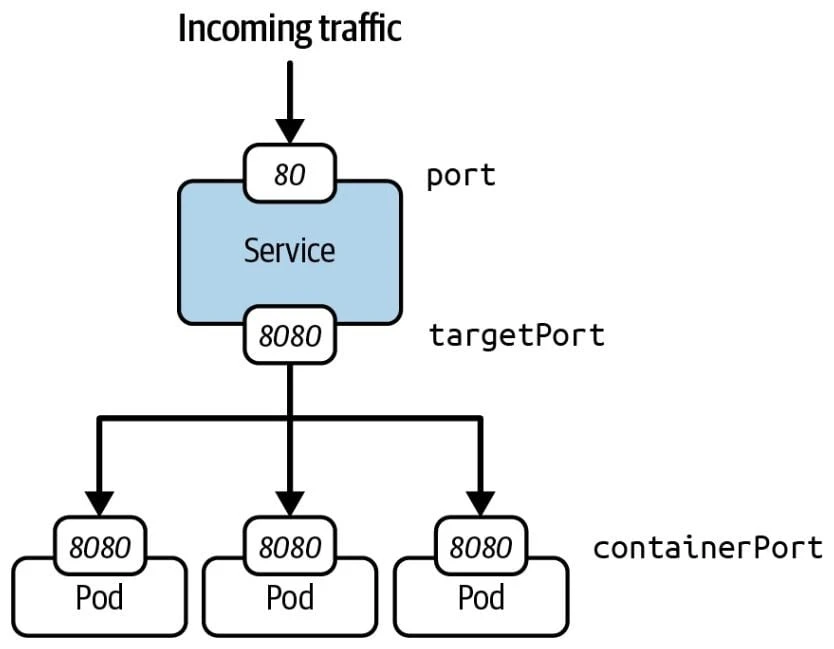

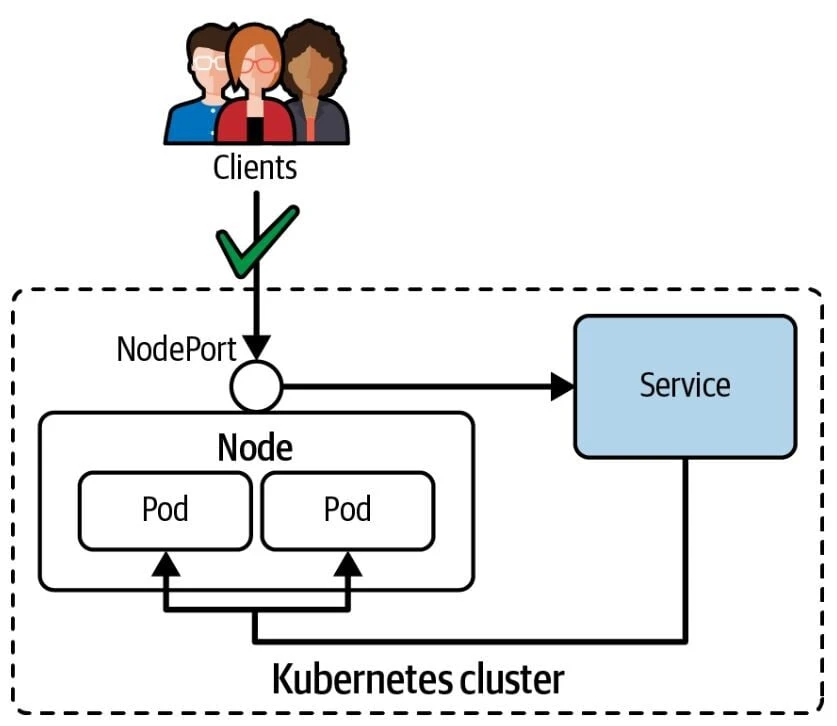

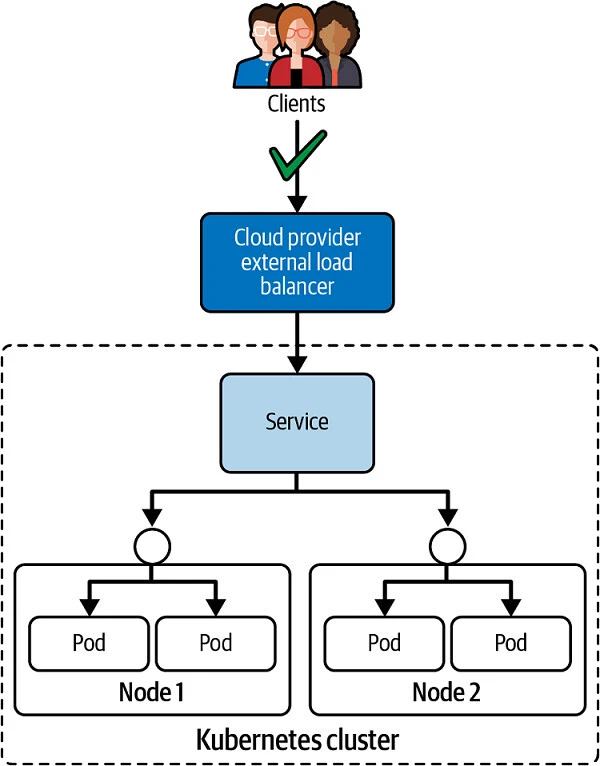

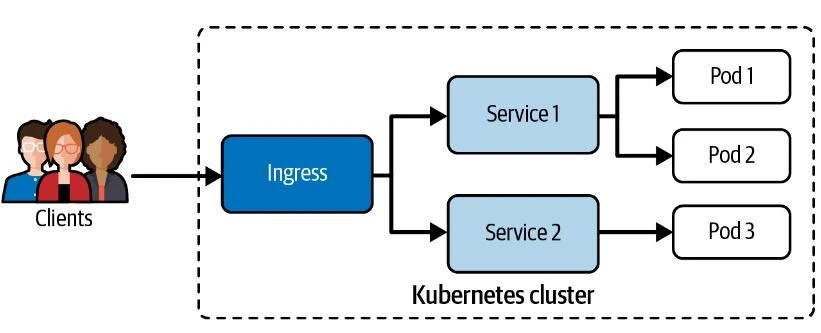

How Service ClusterIP works

A ClusterIP is usually a virtual address. It is not assigned to a normal Pod interface. Traffic takes this path:

Client Pod
  ↓
Service ClusterIP:port
  ↓
Service proxy data plane
  ↓
Ready endpoint from EndpointSlice
  ↓
Backend PodIP:targetPort

Inspect the demo Service:

kubectl -n net-model-demo get svc net-demo -o wide

NAME       TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE   SELECTOR
net-demo   ClusterIP   10.109.219.198   <none>        80/TCP    3s    app=net-demo

From net-a, call the ClusterIP:

SERVICE_IP=$(
  kubectl -n net-model-demo get service net-demo \
    -o jsonpath='{.spec.clusterIP}'
)

kubectl -n net-model-demo exec net-a -- \
  wget -qO- --timeout=3 "http://${SERVICE_IP}/" | head -3

<!DOCTYPE html>
<html>
<head>

The client addressed 10.109.219.198, which sits in the Service CIDR, and received a backend nginx response. Service object fields and types are covered in Services, Endpoints, and EndpointSlices.

kube-proxy and its modes

On Linux, kube-proxy can program Service forwarding with:

• iptables — current default when mode is empty
• nftables — stable modern mode and the recommended replacement for IPVS
• IPVS — still available, but deprecated since Kubernetes 1.35

Windows uses a kernelspace mode. kube-proxy watches Services and EndpointSlices, then updates node-level rules. It does not create Pod veth pairs or assign Pod CIDRs. Some CNI implementations replace kube-proxy with their own Service data plane.

This lab’s ConfigMap leaves mode empty, which selects the default iptables path:

kubectl -n kube-system get cm kube-proxy -o jsonpath='{.data.config\.conf}' | grep -E '^mode:|^clusterCIDR:'

clusterCIDR: 192.168.0.0/16
mode: ""

Confirm from kube-proxy logs:

kubectl -n kube-system logs ds/kube-proxy --tail=20 | grep -iE 'Using|iptables|ipvs|nftables'

I0727 12:47:08.728300       1 server_linux.go:49] "Using iptables proxy"
I0727 12:47:14.844109       1 server_linux.go:137] "Using iptables Proxier"

Avoid treating one mode as universally preferred. An empty mode currently selects iptables on Linux. nftables is the recommended modern alternative on supported systems. IPVS remains available but is deprecated. Change mode only after reading your Kubernetes version docs and validating the CNI compatibility matrix.

EndpointSlices in Service routing

EndpointSlices hold backend addresses and ports for a Service. Readiness affects whether an endpoint is eligible. Large Services may span multiple slices. kube-proxy or its replacement consumes those objects.

kubectl -n net-model-demo get endpointslices -l kubernetes.io/service-name=net-demo -o wide

NAME             ADDRESSTYPE   PORTS   ENDPOINTS                    AGE
net-demo-cf469   IPv4          80      192.168.5.7,192.168.62.164   78s

kubectl get ... -o wide lists endpoint addresses but does not show the ready condition. Confirm readiness explicitly:

kubectl -n net-model-demo get endpointslices \
  -l kubernetes.io/service-name=net-demo \
  -o jsonpath='{range .items[*].endpoints[*]}{.addresses[0]}{"\tready="}{.conditions.ready}{"\n"}{end}'

192.168.5.7	ready=true
192.168.62.164	ready=true

EndpointSlice readiness determines whether an endpoint is normally eligible for Service traffic.

Where DNS fits

CoreDNS resolves Service DNS names to Service ClusterIPs for normal Services, or to endpoint records for headless Services. After resolution, traffic still follows the ClusterIP or Pod-IP paths above. CoreDNS health and name-resolution failures belong in DNS and CoreDNS troubleshooting.

Where NetworkPolicy fits

NetworkPolicy selects Pods and declares allowed ingress and egress. Enforcement belongs to a supporting network implementation (this Calico install advertises Kubernetes policy in the CNI conflist). Policy can apply before or after address translation depending on the implementation. It never invents a route the CNI data plane cannot provide.

This lab currently has no NetworkPolicy objects:

kubectl get networkpolicies -A

No resources found

Policy YAML and examples live in NetworkPolicy with examples.

Inspect the active networking stack

Use API objects first, then node-local CNI and routes when you need the data plane.

List Pods with IPs and nodes:

kubectl get pods -A -o wide | head -8

NAMESPACE            NAME                                       READY   STATUS    RESTARTS      AGE   IP               NODE       NOMINATED NODE   READINESS GATES
calico-system        calico-apiserver-59bcc9778f-2gsfr          1/1     Running   0             77m   192.168.62.146   k8s-cp     <none>           <none>
calico-system        calico-apiserver-59bcc9778f-xtqp6          1/1     Running   0             79m   192.168.62.141   k8s-cp     <none>           <none>
calico-system        calico-kube-controllers-65898666fc-9nng8   1/1     Running   0             79m   192.168.62.140   k8s-cp     <none>           <none>
calico-system        calico-node-94m77                          1/1     Running   0             90m   192.168.56.108   k8s-cp     <none>           <none>

Networking DaemonSets on this cluster:

kubectl get daemonsets -A | grep -iE 'NAME|calico-node|kube-proxy'

NAMESPACE       NAME              DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
calico-system   calico-node       2         2         2       2            2           kubernetes.io/os=linux   89m
kube-system     kube-proxy        2         2         2       2            2           kubernetes.io/os=linux   90m

Services and EndpointSlices:

kubectl get services -A | head -10

NAMESPACE       NAME                              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                  AGE
calico-system   calico-api                        ClusterIP   10.103.228.134   <none>        443/TCP                  89m
default         kubernetes                        ClusterIP   10.96.0.1        <none>        443/TCP                  90m
kube-system     kube-dns                          ClusterIP   10.96.0.10       <none>        53/UDP,53/TCP,9153/TCP   90m

kubectl get endpointslices -A | head -8

NAMESPACE        NAME                                    ADDRESSTYPE   PORTS        ENDPOINTS                       AGE
calico-system    calico-api-n76qx                        IPv4          5443         192.168.62.141,192.168.62.146   92m
calico-system    calico-kube-controllers-metrics-6vwlr   IPv4          9094         192.168.62.140                  91m
calico-system    calico-typha-v8zfp                      IPv4          5473         192.168.56.108                  92m
calico-system    goldmane-f2f72                          IPv4          7443         192.168.62.143                  92m
calico-system    whisker-hmr79                           IPv4          8081         192.168.62.142                  92m
default          kubernetes                              IPv4          6443         192.168.56.108                  93m
kube-system      kube-dns-vll48                          IPv4          53,53,9153   192.168.62.144,192.168.62.145   93m

On a node, confirm CNI config and Pod routes as shown earlier (ls /etc/cni/net.d/, ip route). Together, those views answer which product owns Pod networking and which process owns Service virtual IPs.

Troubleshooting

What's Next

• Kubernetes Services, Endpoints and EndpointSlices
• Troubleshoot a Kubernetes Service That Is Not Working
• Services, CoreDNS and Name Resolution

References

• Cluster Networking
• Network Plugins (CNI)
• Virtual IPs and Service Proxies
• EndpointSlices
• kube-proxy

Summary

Kubernetes networking is a layered contract: Pods get IPs, containers in one Pod share localhost, Pods talk by Pod IP across the cluster, and Services publish stable virtual addresses in a separate CIDR. CNI implements the Pod and node data plane; kube-proxy or a replacement turns ClusterIPs into forwarding toward ready endpoints.

On this Calico lab, cross-node Pod traffic used the peer Pod IP while Calico installed routes for remote Pod CIDR blocks, and kube-proxy in iptables mode handled ClusterIP access using EndpointSlice backends. Plugin interface names and route protocols are examples, not universal constants.

When something fails, decide which path broke — same-Pod, Pod-to-Pod, or Pod-to-Service — then inspect CNI health, routes, kube-proxy mode, and EndpointSlices before changing YAML elsewhere. Next, practice Service object details or NetworkPolicy once the data plane paths above are clear.
