Kubernetes Liveness, Readiness and Startup Probes

Probes are how the kubelet checks container health. This walkthrough configures HTTP probes on a web Deployment in probe-lab, then shows shorter TCP, exec, and gRPC examples so you can match the probe type to what your application actually exposes.

How Kubernetes Probes Work

A probe is a diagnostic performed periodically by the kubelet against a container. An exec probe runs a command inside the container, while HTTP, TCP, and gRPC probes make network requests to the Pod. HTTP and gRPC probes target the Pod IP, TCP checks originate from the node, and exec commands run inside the container.

Kubernetes supports HTTP GET, TCP socket, exec, and gRPC probes. Built-in gRPC probes have been stable since Kubernetes v1.27. Native gRPC probes are a Kubernetes feature and do not need a special container-runtime capability.

Liveness vs Readiness vs Startup

Use the probes for different failure modes:

• Readiness — temporary inability to serve requests. Traffic should pause, but a restart may not help.
• Liveness — the process is alive but stuck. Restart only when that restart can recover the application.
• Startup — initialization takes longer than normal liveness timing allows.

When a startup probe is defined, liveness and readiness checks do not run until startup succeeds.

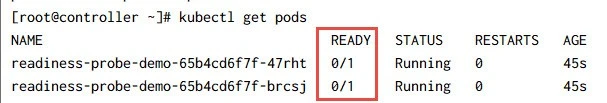

A Pod can show phase Running while the Ready condition is false. kubectl get pods may display 0/1 in the READY column even though STATUS is Running. Phase and readiness are separate signals — see Kubernetes Pods and Pod lifecycle for conditions and STATUS meanings.

Configure Kubernetes Probe Types

HTTP Probe

This Deployment uses nginx with a ConfigMap that returns HTTP 200 on /startup, /ready, and /health. Each probe targets a different path on the named port http.

Save probe-nginx.conf:

server {
  listen 80;
  root /usr/share/nginx/html;
  default_type text/plain;

  location = /startup {
    try_files /startup-ok =503;
  }

  location = /ready {
    try_files /ready-ok =503;
  }

  location = /health {
    try_files /health-ok =500;
  }
}

Create the ConfigMap and Deployment:

kubectl create namespace probe-lab

kubectl create configmap probe-nginx-conf -n probe-lab --from-file=default.conf=probe-nginx.conf

Save web-probes.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
  namespace: probe-lab
spec:
  replicas: 1
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      containers:
        - name: nginx
          image: nginx:1.27.0
          command: ["/bin/sh", "-c"]
          args:
            - |
              printf 'startup ok\n' > /usr/share/nginx/html/startup-ok
              printf 'ready ok\n' > /usr/share/nginx/html/ready-ok
              printf 'health ok\n' > /usr/share/nginx/html/health-ok
              exec nginx -g 'daemon off;'
          ports:
            - name: http
              containerPort: 80
          volumeMounts:
            - name: nginx-conf
              mountPath: /etc/nginx/conf.d/default.conf
              subPath: default.conf
          startupProbe:
            httpGet:
              path: /startup
              port: http
              scheme: HTTP
            periodSeconds: 2
            failureThreshold: 30
          readinessProbe:
            httpGet:
              path: /ready
              port: http
            periodSeconds: 5
            failureThreshold: 3
          livenessProbe:
            httpGet:
              path: /health
              port: http
            periodSeconds: 10
            failureThreshold: 3
      volumes:
        - name: nginx-conf
          configMap:
            name: probe-nginx-conf

The startup command recreates the marker files whenever the container restarts.

Important httpGet fields:

• path — URL path the kubelet requests
• port — number or named port from the container spec
• scheme — HTTP or HTTPS
• httpHeaders — optional extra headers (not shown here)

Apply the manifest:

kubectl apply -f web-probes.yaml

Sample output:

deployment.apps/web created

Wait until the Deployment reports available:

kubectl wait --for=condition=Available deployment/web -n probe-lab --timeout=120s

kubectl get pods -n probe-lab -l app=web

Sample output:

NAME                   READY   STATUS    RESTARTS   AGE
web-6f48c76c7c-qbrhv   1/1     Running   0          3s

Inspect probe configuration on the Pod:

kubectl describe pod -n probe-lab -l app=web

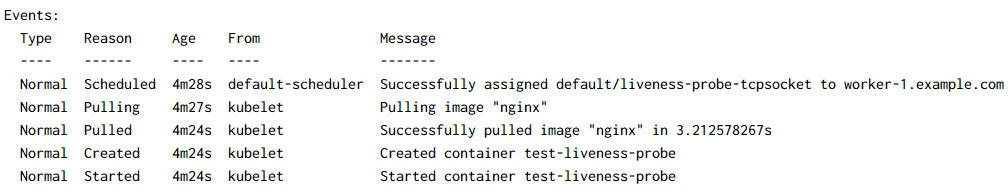

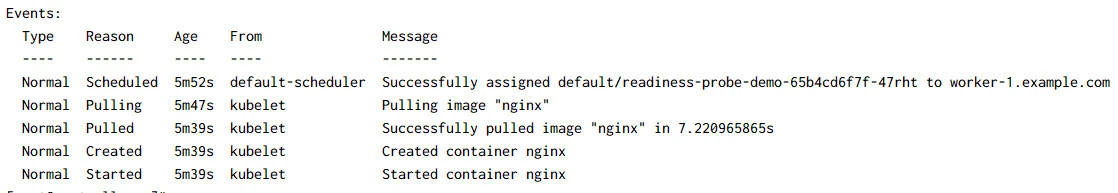

The Liveness, Readiness, and Startup sections list probe type, path, port, and timing. Events at the bottom show probe failures when they occur.

Watch READY change during later tests:

kubectl get pods -n probe-lab -l app=web --watch

Stop the watch with Ctrl+C when you finish observing changes.

TCP Socket Probe

A TCP probe succeeds when the kubelet opens a TCP connection to the port. It does not read HTTP bodies or validate application logic.

livenessProbe:
  tcpSocket:
    port: 80
  periodSeconds: 5

Use TCP when the process listens on a port but does not expose a dedicated HTTP health path. An open socket does not prove the application returns correct responses.

exec Probe

An exec probe runs a command inside the container namespace. Exit code 0 means success. Any non-zero exit code means failure.

livenessProbe:
  exec:
    command:
      - cat
      - /tmp/healthy
  periodSeconds: 5

The command and any binaries it calls must exist in the container image. A typical pattern creates /tmp/healthy during container start, then probes with cat.

Shell quoting, command versus args, and entrypoint interaction are covered in commands, args and environment variables.

gRPC Probe

gRPC probes use the gRPC Health Checking Protocol. The application must implement the health service on the target port.

livenessProbe:
  grpc:
    port: 50051
    service: health
  periodSeconds: 5

The port field must be numeric. Named ports are not supported for gRPC probes. If the service name is wrong or the health RPC is not implemented, the probe fails.

Lab example with agnhost. Save the manifest as grpc-probe.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: grpc-probe
  namespace: probe-lab
spec:
  containers:
    - name: agnhost
      image: registry.k8s.io/e2e-test-images/agnhost:2.53
      args:
        - grpc-health-checking
        - --port=50051
      ports:
        - containerPort: 50051
      readinessProbe:
        grpc:
          port: 50051
        periodSeconds: 2
        failureThreshold: 3
      livenessProbe:
        grpc:
          port: 50051
        periodSeconds: 5

kubectl apply -f grpc-probe.yaml

Sample output:

pod/grpc-probe created

kubectl wait --for=condition=Ready pod/grpc-probe -n probe-lab --timeout=60s

Sample output:

pod/grpc-probe condition met

kubectl describe pod grpc-probe -n probe-lab

The Readiness and Liveness sections should show grpc <pod>:50051. Without a readiness probe, the container can become Ready before its first gRPC liveness check succeeds; readiness controls the Pod Ready condition, while liveness controls container restarts. The wait command above verifies that the gRPC health service actually returns SERVING. The agnhost grpc-health-checking command supports --port, so the --port=50051 argument is valid. This article does not cover implementing the gRPC health service in application code.

Tune Probe Timing and Thresholds

Approximate startup allowance is initialDelaySeconds + (failureThreshold × periodSeconds). Probe execution and timeout timing can make the observed wall-clock interval vary slightly.

For the HTTP Deployment manifest above:

0 + (30 × 2 seconds) = approximately 60 seconds

Kubernetes documents startup sizing using the initial delay plus the failure-threshold and period window. Liveness and startup probes require successThreshold: 1. Readiness can use a higher successThreshold when you want several consecutive successes before marking the Pod ready.

There is no single timing preset that fits every application. Tune from observed startup time and failure behavior rather than copying defaults blindly.

How Probe Failures Affect the Pod

Readiness probe failure

When readiness fails repeatedly:

• The container keeps running.
• The Pod Ready condition becomes False.
• Endpoints for matching Services and EndpointSlices drop the Pod until readiness succeeds again.

Traffic stops, but the process is not restarted.

Liveness probe failure

When liveness fails past failureThreshold:

• The kubelet stops and restarts the container.
• RESTARTS increases on kubectl get pods.
• Repeated failures can lead to CrashLoopBackOff backoff between restarts.

Startup probe failure

When startup fails past its threshold:

• The container is restarted before liveness and readiness run.
• Fix slow startup by widening startup timing, not by disabling liveness without analysis.

Test Readiness and Liveness Failures

This controlled demo uses the web Deployment from the HTTP section. Readiness and liveness are tested on the same running container by removing marker files the nginx config serves.

Confirm the Pod is ready:

kubectl get pods -n probe-lab -l app=web

Sample output:

NAME                   READY   STATUS    RESTARTS   AGE
web-6f48c76c7c-qbrhv   1/1     Running   0          3s

Readiness failure test

POD=$(kubectl get pod -n probe-lab -l app=web -o jsonpath='{.items[0].metadata.name}')

kubectl exec -n probe-lab "$POD" -- rm -f /usr/share/nginx/html/ready-ok

kubectl wait --for=condition=Ready=false pod/"$POD" -n probe-lab --timeout=30s

kubectl get pod "$POD" -n probe-lab

Expected state:

NAME                   READY   STATUS    RESTARTS   AGE
web-6f48c76c7c-qbrhv   0/1     Running   0          2m

Restore readiness:

kubectl exec -n probe-lab "$POD" -- sh -c "printf 'ready ok\n' > /usr/share/nginx/html/ready-ok"

kubectl wait --for=condition=Ready pod/"$POD" -n probe-lab --timeout=30s

A readiness failure marks the container and Pod not ready without restarting it.

Liveness failure test

BEFORE=$(kubectl get pod "$POD" -n probe-lab -o jsonpath='{.status.containerStatuses[0].restartCount}')

kubectl exec -n probe-lab "$POD" -- rm -f /usr/share/nginx/html/health-ok

Wait for the restart instead of immediately assuming RESTARTS=1:

DEADLINE=$((SECONDS + 120))

while true; do
CURRENT=$(kubectl get pod "$POD" -n probe-lab -o jsonpath='{.status.containerStatuses[0].restartCount}')

  if [ "$CURRENT" -gt "$BEFORE" ]; then
    break
  fi

  if [ "$SECONDS" -ge "$DEADLINE" ]; then
    echo "Timed out waiting for the liveness restart" >&2
    exit 1
  fi

  sleep 2
done

kubectl get pod "$POD" -n probe-lab

The Pod name remains unchanged while the container restart count increases. The container startup command then recreates health-ok.

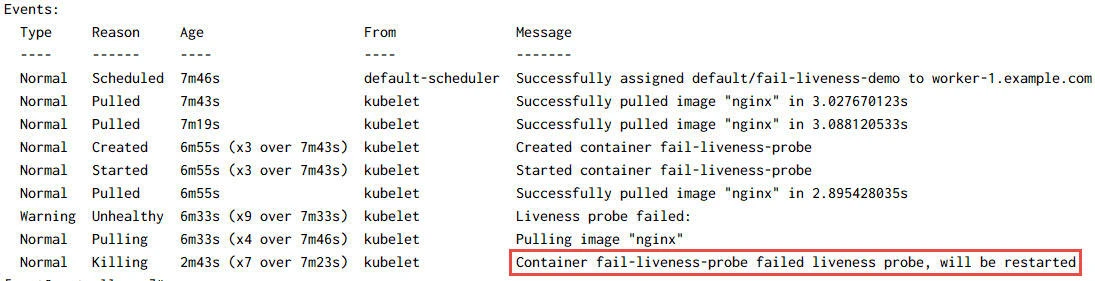

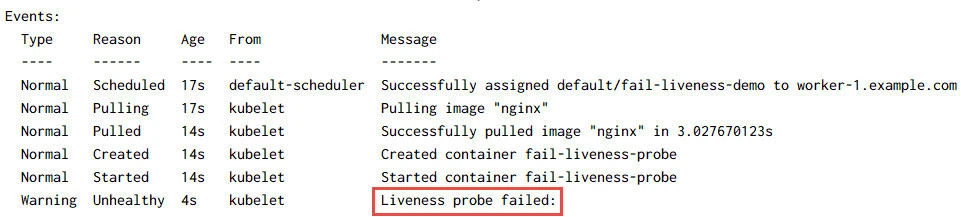

Inspect probe events:

kubectl describe pod "$POD" -n probe-lab

Sample Events lines:

Warning  Unhealthy  ...  Liveness probe failed: HTTP probe failed with statuscode: 500

The kubelet restarted the container because the liveness probe could not read a healthy response from /health.

Choose the Correct Probe

Common Probe Configuration Mistakes

For describe, logs, conditions, and restart-count workflows, use Kubernetes Pods and Pod lifecycle. When restarts coincide with memory limits, see OOMKilled and exit code 137. Kubernetes Services explains how ready Pods become Service endpoints.

What's Next

• Kubernetes ConfigMap with Examples
• Kubernetes Secrets with Examples
• Kubernetes Requests, Limits and QoS Classes

References

• Configure Liveness, Readiness and Startup Probes — official task guide
• Pod lifecycle — probe behavior in Pod conditions

Summary

You configured liveness, readiness, and startup probes on one Deployment, using separate HTTP paths so each check can target a different concern. Readiness failures removed the Pod from the ready set without killing the container. Liveness failures increased the restart count when the kubelet could not reach the health endpoint.

The main configuration mistake is using liveness for problems a restart cannot fix. Pair readiness with Service traffic decisions, startup with slow initialization, and liveness only when restarting the container is a valid recovery step. Validate probe YAML with kubectl apply --dry-run=server before production changes — see kubectl apply, edit, patch and replace for server-side dry-run mechanics.

When probes look correct but traffic still misbehaves, read Pod conditions and Service endpoints together.
