Kubernetes subPath Volume Mounts with Examples

This walkthrough uses the subpath-lab namespace. You will mount one subdirectory from a shared volume, replace only nginx.conf while keeping other files under /etc/nginx, and prove that a ConfigMap mounted with subPath does not update until you recreate the Pod.

What Is subPath in Kubernetes?

• volumeMounts.mountPath defines where a volume appears inside the container
• subPath selects a specific file or directory inside that volume instead of mounting the volume root
• Without subPath, Kubernetes mounts the volume at mountPath and hides image files at that path
• With subPath, only the chosen file or directory appears at mountPath
• subPath is set on each containers[].volumeMounts entry

Pod-level volumes and volumeMounts basics are covered in Kubernetes volumes.

mountPath vs subPath

Example mounting only the website directory from a volume at /usr/share/nginx/html:

volumeMounts:
  - name: application-data
    mountPath: /usr/share/nginx/html
    subPath: website

Only the website subtree from the volume appears at /usr/share/nginx/html. Other paths on the volume are not visible at that mount point.

Why Use subPath?

A normal volumeMount replaces everything at mountPath. subPath solves common cases where you need a narrower mount:

• Mount one configuration file at a fixed path the application expects, such as /etc/nginx/nginx.conf
• Keep other files from the container image in the same directory, such as mime.types and conf.d
• Mount different subdirectories from one shared volume at different container paths
• Give each Pod its own subdirectory with subPathExpr when the path comes from metadata or environment variables

The trade-off is update behaviour. ConfigMap and Secret files mounted through subPath do not receive live projected-file updates. The labs below show that limitation and the mount rules to follow.

Mount Different Directories from One Volume

• One volume can supply multiple mount points when each volumeMounts entry uses a different subPath
• An init container prepares the source layout before the application container starts

An init container prepares this layout on an emptyDir volume:

data/
├── html/
└── logs/

Save multi-subpath.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: multi-subpath
  namespace: subpath-lab
spec:
  initContainers:
    - name: setup
      image: busybox:1.36
      command: ["sh", "-c", "mkdir -p /data/html /data/logs && echo page > /data/html/index.html && echo ok > /data/logs/access.log"]
      volumeMounts:
        - name: data
          mountPath: /data
  containers:
    - name: app
      image: busybox:1.36
      command: ["sh", "-c", "echo html:$(cat /var/www/html/index.html) logs:$(cat /var/log/app/access.log) && sleep 3600"]
      volumeMounts:
        - name: data
          mountPath: /var/www/html
          subPath: html
        - name: data
          mountPath: /var/log/app
          subPath: logs
  volumes:
    - name: data
      emptyDir: {}

Create the namespace and apply the Pod:

kubectl create namespace subpath-lab

kubectl apply -f multi-subpath.yaml

kubectl wait --for=condition=Ready pod/multi-subpath -n subpath-lab --timeout=90s

kubectl logs multi-subpath -n subpath-lab

Sample output:

html:page logs:ok

Both mounts reference volume name data with different subPath values.

Mount Individual ConfigMap and Secret Files

Use subPath when the application reads one file at a fixed path instead of a whole mounted directory.

Replace only nginx.conf

Create a ConfigMap with a minimal nginx.conf:

kubectl create configmap nginx-conf -n subpath-lab --from-file=nginx.conf=/dev/stdin <<'EOF'
worker_processes 2;
events { worker_connections 1024; }
http {
  include /etc/nginx/mime.types;
  default_type application/octet-stream;
  server { listen 80; location / { return 200 'ok'; } }
}
EOF

Save nginx-subpath.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: nginx-subpath
  namespace: subpath-lab
spec:
  containers:
    - name: nginx
      image: nginx:1.27-alpine
      volumeMounts:
        - name: nginx-config
          mountPath: /etc/nginx/nginx.conf
          subPath: nginx.conf
          readOnly: true
  volumes:
    - name: nginx-config
      configMap:
        name: nginx-conf

kubectl apply -f nginx-subpath.yaml

kubectl wait --for=condition=Ready pod/nginx-subpath -n subpath-lab --timeout=90s

Read the mounted file:

kubectl exec nginx-subpath -n subpath-lab -- head -1 /etc/nginx/nginx.conf

Sample output:

worker_processes 2;

For a ConfigMap or Secret volume:

• Without items, each key normally becomes a file with the same name, so subPath uses that filename
• When items[].path remaps a key, subPath must reference the projected path inside the volume—not the original key

ConfigMap creation and env-var usage are covered in Kubernetes ConfigMaps.

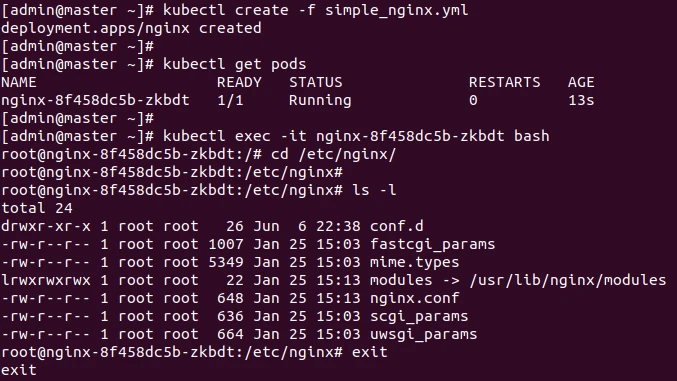

Preserve files from the container image

Without subPath:

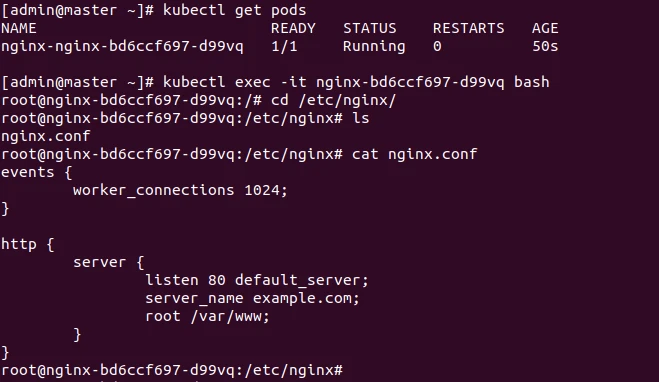

• Mounting a whole ConfigMap volume at /etc/nginx hides mime.types, conf.d, and other image files at that path

With subPath:

• Only nginx.conf is replaced
• Other files under /etc/nginx remain from the image

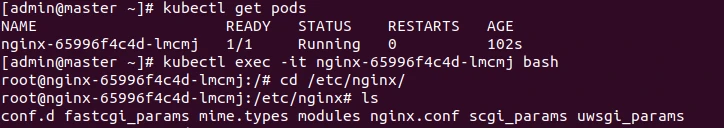

List other files still present under /etc/nginx:

kubectl exec nginx-subpath -n subpath-lab -- ls /etc/nginx

Sample output:

conf.d
fastcgi.conf
fastcgi_params
mime.types
modules
nginx.conf
scgi_params
uwsgi_params

mime.types and conf.d remain from the image beside the mounted nginx.conf.

Mount one Secret key

• Mount one Secret key as one file with a read-only mount
• The destination filename can differ from the Secret key name

volumeMounts:
  - name: creds
    mountPath: /etc/creds/db-password
    subPath: password
    readOnly: true
volumes:
  - name: creds
    secret:
      secretName: db-cred

The destination filename db-password can differ from the Secret key password. Secret creation and rotation belong in Kubernetes Secrets.

Understand ConfigMap and Secret Update Limitations

• A ConfigMap or Secret mounted as a normal directory volume can receive eventual projected-file updates
• The application must reread the file to observe the new content
• A subPath file mount remains bound to the original projected file and does not receive those updates
• Recreate a bare Pod, or update and roll out the Pod template of its Deployment, StatefulSet, or other controller
• Updating the ConfigMap or Secret alone does not refresh an existing subPath mount
• mountPath, subPath, and subPathExpr are part of the container's volume-mount configuration and cannot be changed on an existing Pod
• Changing them also requires Pod replacement
• Container volumeMounts are immutable on an existing Pod

Create a ConfigMap and Pod that mount one file with subPath:

kubectl create configmap app-conf -n subpath-lab --from-literal=app.properties="version=1"

Save cm-subpath.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: cm-subpath
  namespace: subpath-lab
spec:
  containers:
    - name: app
      image: busybox:1.36
      command: ["sh", "-c", "cat /etc/app.properties && sleep 3600"]
      volumeMounts:
        - name: cfg
          mountPath: /etc/app.properties
          subPath: app.properties
          readOnly: true
  volumes:
    - name: cfg
      configMap:
        name: app-conf

kubectl apply -f cm-subpath.yaml

kubectl wait --for=condition=Ready pod/cm-subpath -n subpath-lab --timeout=60s

Read the file before the update:

kubectl exec cm-subpath -n subpath-lab -- cat /etc/app.properties

Sample output:

version=1

Change the ConfigMap data:

kubectl create configmap app-conf -n subpath-lab --from-literal=app.properties="version=2" -o yaml --dry-run=client | kubectl apply -f -

Read the same file in the running Pod:

kubectl exec cm-subpath -n subpath-lab -- cat /etc/app.properties

Sample output:

version=1

The mounted file still shows version=1 even though the ConfigMap object changed. Delete and recreate the Pod:

kubectl delete pod cm-subpath -n subpath-lab --wait=true

kubectl apply -f cm-subpath.yaml

kubectl wait --for=condition=Ready pod/cm-subpath -n subpath-lab --timeout=60s

kubectl exec cm-subpath -n subpath-lab -- cat /etc/app.properties

Sample output:

version=2

Plan for Pod recreation or rollout when you mount ConfigMap or Secret keys through subPath.

Follow File and Directory Mount Rules

• subPath is relative to the referenced volume root; do not use an absolute path
• It must not contain path traversal such as ..
• The selected source must have the correct type: file-to-file or directory-to-directory
• Ensure the selected file or directory exists before the application container starts
• For a file mount, the destination mountPath includes the destination filename
• The destination parent directory must exist in the container filesystem
• When ConfigMap or Secret items is configured, use the projected path as subPath
• Kubernetes treats subPath as a relative path inside the volume and rejects absolute or relative traversal components
• Source directories and files must exist before mounting them

For example, when items remaps a key:

volumes:
  - name: nginx-config
    configMap:
      name: nginx-conf
      items:
        - key: nginx.conf
          path: custom/nginx.conf

The corresponding mount would use:

subPath: custom/nginx.conf

ConfigMap keys become filenames unless items maps them to different relative paths.

Use subPathExpr for Dynamic Subdirectories

• subPath is a literal path
• subPathExpr expands $(VAR_NAME) from the container environment
• The two fields are mutually exclusive
• This example uses the Downward API to set POD_NAME
• An init container creates the selected directory before the application starts

Save this manifest as expr-demo.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: expr-demo
  namespace: subpath-lab
spec:
  initContainers:
    - name: prepare
      image: busybox:1.36
      env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
      command:
        - sh
        - -c
        - mkdir -p "/data/${POD_NAME}"
      volumeMounts:
        - name: data
          mountPath: /data
  containers:
    - name: app
      image: busybox:1.36
      env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
      command:
        - sh
        - -c
        - echo hello > /logs/hello.txt && sleep 3600
      volumeMounts:
        - name: data
          mountPath: /logs
          subPathExpr: $(POD_NAME)
  volumes:
    - name: data
      emptyDir: {}

kubectl apply -f expr-demo.yaml

kubectl wait --for=condition=Ready pod/expr-demo -n subpath-lab --timeout=90s

kubectl exec expr-demo -n subpath-lab -- cat /logs/hello.txt

Sample output:

hello

Field and environment expansion details live in container command, args, and environment.

Troubleshoot Common subPath Problems

Inspect Events for mount failures:

kubectl describe pod nginx-subpath -n subpath-lab

Look for messages about invalid paths, missing sources, or file versus directory mismatches in the Events section.

When Should You Use subPath?

After the labs above, use this checklist:

Use subPath when:

• You need one configuration file at a fixed path
• You must preserve other files in the destination directory from the image
• One volume should supply different subdirectories at different mountPath values
• Multiple containers in one Pod need different portions of the same volume
• The subdirectory name should come from metadata or environment variables through subPathExpr

Avoid subPath when:

• The application needs live ConfigMap or Secret file updates without restarting
• Mounting the full volume at a dedicated directory is safe
• The application can read configuration from a separate mounted directory

What's Next

• Fix Pending PVC, FailedMount and Volume Attachment Errors
• Kubernetes Networking Model, CNI and kube-proxy
• Kubernetes Services, Endpoints and EndpointSlices

References

• Volumes — using subPath
• ConfigMap — Kubernetes documentation
• Secrets — Kubernetes documentation

Summary

• subPath mounts one file or subdirectory from a Pod volume instead of replacing everything at mountPath
• The labs split one emptyDir across /var/www/html and /var/log/app, and replaced only nginx.conf while mime.types and conf.d stayed on disk from the image
• ConfigMap and Secret files mounted through subPath do not refresh when the source object changes
• The update lab showed version=1 persisting after the ConfigMap moved to version=2 until the Pod was recreated
• Use directory mounts or application reload patterns when you need live config without restart
