Kubernetes Authentication, Authorization and Admission Control

When kubectl apply fails, the error might be bad credentials, missing RBAC permission, or a policy that rejected the manifest. Those are three different stages. This walkthrough follows one write request from your workstation through the API server so you can tell authentication, authorization, and admission apart. Raw API checks use the curl command with -k, bearer tokens, and -w for HTTP status codes.

Follow a Kubernetes API Request

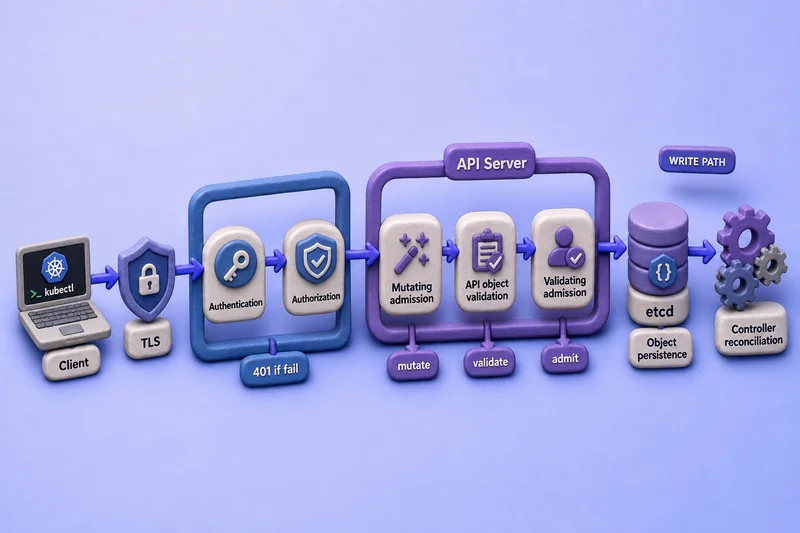

A typical write path flows through the API server gates in this order:

Read the figure left to right: the client reaches the API server over TLS, then passes authentication and authorization before mutating admission reshapes the object. API object validation runs on the mutated object, validating admission accepts or rejects it, and only then is the object stored in etcd for controller reconciliation. Individual authenticators, authorizers, and admission mechanisms vary by cluster configuration, but authentication precedes authorization, mutation completes before API object validation, and validating admission evaluates the resulting object before storage.

Read operations such as get, list, and watch still pass through authentication and authorization. They generally skip admission.

Authentication

Identities and Credentials

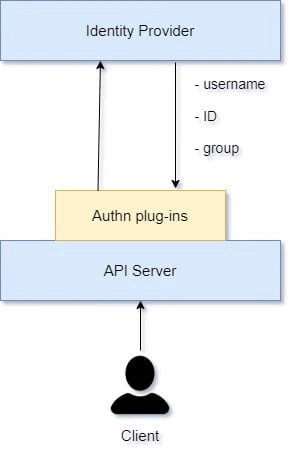

Authentication answers who is calling. The API server validates credentials from your kubeconfig, a bearer token, or another configured method, then maps the caller to:

• Username
• UID when the method supplies one
• Groups
• Additional identity attributes

For CKAD, CKA, and CKS you mainly work with two caller categories:

• Normal users — identities managed outside the Kubernetes API (certificates, OIDC, proxies)
• ServiceAccounts — identities represented by API objects and used by Pods and in-cluster clients

Kubernetes does not expose a User API object for creating ordinary human accounts. You provision users through your organization's identity system and grant them cluster access with RBAC. For token mounting, projection, and Pod identity, see Kubernetes ServiceAccounts.

The API server can be configured with several authentication methods. You do not configure them in this lesson; you only need to recognize what your client presents:

• Client certificates (common in kubeconfig for kubectl)
• Bearer tokens (static, bootstrap, or ServiceAccount tokens)
• OpenID Connect tokens
• Authentication proxies that pass identity headers
• ServiceAccount tokens signed by the API server

kubectl reads a context from kubeconfig that ties together a cluster URL, a user credential, and a default namespace. The users[].name field in kubeconfig is only a local AuthInfo reference name—it is not necessarily the authenticated Kubernetes username.

Confirm the Authenticated Identity

Ask the API server which identity your current credentials map to:

kubectl auth whoami

Sample output:

ATTRIBUTE   VALUE
Username    kubernetes-admin
Groups      [kubeadm:cluster-admins system:authenticated]

kubectl auth whoami asks the API server for the subject attributes associated with the current credentials. The result shows the username and groups that authorization evaluates. The user name stored in kubeconfig is only the local AuthInfo reference and may differ from the authenticated username. With client-certificate authentication, Kubernetes normally derives the authenticated username from the certificate subject CN; OIDC, proxies, and token authenticators derive it differently.

kubectl auth whoami is available in kubectl 1.36, although its command reference still labels it experimental.

Diagnose HTTP 401

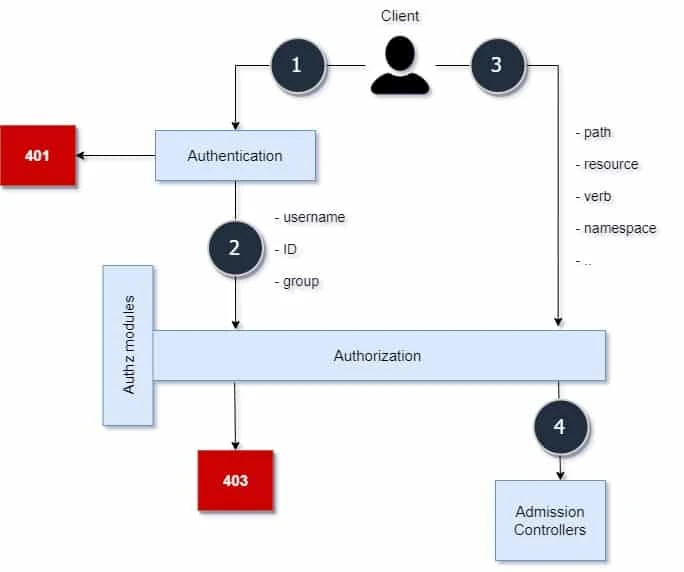

When credentials are missing or invalid, the API server returns 401 Unauthorized. Authentication only establishes identity—it does not grant any permission.

Resolve the current cluster endpoint from kubeconfig and call the API with a deliberately invalid bearer token:

APISERVER=$(kubectl config view --minify -o jsonpath='{.clusters[0].cluster.server}')

curl -sk -H 'Authorization: Bearer invalid-token' -o /tmp/status.json -w '%{http_code}\n' "$APISERVER/api/v1/namespaces"

Sample output:

401

Display the response body:

cat /tmp/status.json

Formatted response body:

{
  "kind": "Status",
  "apiVersion": "v1",
  "status": "Failure",
  "message": "Unauthorized",
  "reason": "Unauthorized",
  "code": 401
}

The actual cat output may be compact JSON.

An invalid bearer token is rejected with 401. A request that supplies no credential may instead become system:anonymous when anonymous authentication is enabled; authorization can then reject that known anonymous identity with 403. Kubernetes explicitly distinguishes an invalid token from an absent credential when anonymous authentication is enabled.

Because -k disables API-server certificate verification, this command isolates the client-authentication result rather than testing the TLS trust stage.

A successfully authenticated caller can still be denied later. Never treat 401 as an RBAC problem until you confirm the client credential is valid.

Authorization

Request Attributes

Authorization runs after authentication. The API server evaluates request attributes such as:

• User and groups
• API group
• Resource and subresource
• Namespace
• Resource name
• Verb (get, list, create, update, patch, delete, …)
• Non-resource URL paths such as /healthz

RBAC is the authorization mode you will see on most clusters, but Kubernetes also supports other authorizers (Node, webhook, and legacy modes on some installs). This article does not include Role or ClusterRole YAML—that belongs in Kubernetes RBAC.

Test Access with kubectl auth can-i

kubectl auth can-i asks the API server whether the current identity may perform an action. It exercises authorization only; your credentials must already be valid.

Check permission on a namespaced resource:

kubectl auth can-i create deployments.apps -n default

Sample output from the kubeadm administrator used in this lab:

yes

For a genuinely cluster-scoped check:

kubectl auth can-i get nodes

Sample output:

yes

List the permissions reported for the current user in one namespace:

kubectl auth can-i --list -n default

Sample output (trimmed):

Resources                                       Non-Resource URLs   Resource Names   Verbs
*.*                                             []                  []               [*]
                                                [*]                 []               [*]
selfsubjectaccessreviews.authorization.k8s.io   []                  []               [create]
                                                [/api/*]            []               [get]
                                                [/healthz]          []               [get]

The table reports namespaced resource permissions for default along with any non-resource URL permissions. Non-resource URLs such as /healthz are cluster-scoped and are not limited by the namespace flag. A no answer means authorization would block that verb before admission runs.

If your user may impersonate ServiceAccounts, you can test another identity. The caller must have impersonation permission to use --as:

kubectl auth can-i create pods --as=system:serviceaccount:default:default

Sample output:

no

On this unmodified kubeadm lab, the default ServiceAccount in default cannot create Pods. The result can differ when that ServiceAccount has additional bindings. Impersonation is useful for debugging RBAC without switching kubeconfig files.

Diagnose HTTP 403

Read the status code together with the message. They are not interchangeable.

On this kubeadm lab, anonymous authentication is enabled, but system:anonymous is not authorized to access /apis, so the request returns 403. Other clusters may return 401 when anonymous authentication is disabled or may return a different result when anonymous access is explicitly authorized.

curl -sk -o /tmp/anon.json -w '%{http_code}\n' "$APISERVER/apis"

Sample output from this lab:

403

cat /tmp/anon.json

Formatted response body:

{
  "message": "forbidden: User \"system:anonymous\" cannot get path \"/apis\"",
  "reason": "Forbidden",
  "code": 403
}

Admission controllers can also return 403 with messages such as exceeded quota or Pod Security violations. Always read the full error string to see whether RBAC or admission stopped the request. Kubernetes supports multiple authorization modes, and a denied authorization decision returns HTTP 403.

Admission Control

Mutating and Validating Phases

Admission runs after authentication and authorization on write operations. It answers whether the object itself is acceptable and may modify it before storage.

Admission mainly handles:

• create
• update
• delete
• Certain connect subresources

Admission plugins and webhooks split into two phases:

Authorization always precedes admission for an allowed API request, including control-plane requests made through the API server.

Built-in Plugins, CEL Policies, and Webhooks

Kubernetes 1.36 makes MutatingAdmissionPolicy stable and enabled by default. It provides an in-process CEL-based alternative to a mutating webhook. ValidatingAdmissionPolicy provides declarative validation without an external webhook service.

Course examples you have already met:

• Default ServiceAccount assignment, projected API credentials, and ServiceAccount imagePullSecrets handling for Pods
• LimitRange default requests and limits — see ResourceQuota and LimitRange
• ResourceQuota totals checked at admission
• Pod Security Admission labels and enforcement
• Custom mutating and validating webhooks (configured by cluster admins, not in CKAD manifests)

This lesson does not configure any admission controller. You only need to recognize when a 403 or validation error comes from policy after RBAC already allowed the verb.

Read Requests and Admission

Normal reads bypass admission. A caller who can get a Secret still needed authentication and authorization; admission does not filter reads.

Walk Through Deployment and Pod Creation

Take one command:

kubectl apply -f deployment.yaml

Here is what happens conceptually across separate API requests:

1. kubectl sends a create or patch request for the Deployment using the selected credentials.
2. Authentication identifies the caller.
3. Authorization checks the Deployment verb in the target namespace.
4. Admission policies and API validation process the Deployment request.
5. The accepted Deployment is stored.
6. The Deployment controller submits a new API request to create a ReplicaSet using the controller's identity.
7. The ReplicaSet controller submits separate Pod creation requests.
8. Pod admission then applies relevant mechanisms such as LimitRanger, ResourceQuota, Pod Security Admission, and matching admission policies or webhooks.
9. Accepted Pods continue to scheduling and kubelet processing.

LimitRanger applies defaults and constraints to incoming Pod requests, while ResourceQuota can reject Pod creation after the Deployment itself has already been stored. This distinction is essential to explaining why a Deployment can exist while its ReplicaSet reports FailedCreate. See Deployment not creating Pods.

Workload hardening such as runAsNonRoot, dropped capabilities, and volume permissions lives in SecurityContext examples and SecurityContext capabilities—not in the API request path above.

Diagnose the Failed Stage

A Deployment being admitted does not prove that the controller-generated Pod requests will also pass admission. When several stages could apply, start with kubectl auth can-i for the verb, then read the exact forbidden message for admission keywords such as quota, LimitRange, or pod-security.

What's Next

• Kubernetes Security Architecture and Attack Surface
• Kubernetes NetworkPolicy with Examples
• Audit Kubernetes Against the CIS Benchmark with kube-bench

References

• Authenticating — Kubernetes documentation
• Authorization — authorization modes and attributes
• Admission controllers — built-in admission plugins
• Dynamic admission control — mutating and validating webhooks overview
• Mutating Admission Policy — declarative CEL-based mutating policies

Summary

Every API write passes through authentication, authorization, and admission before etcd stores the object. Authentication maps credentials to a username and may also supply a UID, groups, and extra attributes; it answers who is calling. Authorization checks whether that identity may perform the verb on the resource; RBAC is the usual mechanism, tested quickly with kubectl auth can-i. Admission shapes or rejects the object itself through mutating and validating stages—LimitRanger, ResourceQuota, Pod Security Admission, MutatingAdmissionPolicy, and ValidatingAdmissionPolicy are common examples.

HTTP 401 means the server could not authenticate the request. HTTP 403 means the caller was identified but the request was denied by authorization—such as RBAC, Node, or webhook authorization—or an admission mechanism returned a forbidden response. Read the message to identify the stage. Controllers reconcile stored objects afterward, but every API write a controller makes is a separate authenticated, authorized, and admitted request.

For credentials inside the cluster, continue with ServiceAccounts and Role YAML in the RBAC guide. Namespace policy errors at admission are covered in the ResourceQuota lesson.
