Kubernetes Horizontal Pod Autoscaler with Examples

Horizontal Pod Autoscaler (HPA) changes how many Pods a Deployment or StatefulSet runs based on observed metrics. This rewrite uses Metrics Server, a small HTTP app with a CPU request, and a repeatable load generator so you can watch scale-up and scale-down on a real cluster.

How HPA works

HPA is a control loop, not an instant trigger:

Metrics API
   ↓
HPA controller
   ↓
Target utilization calculation
   ↓
Scale subresource
   ↓
Deployment / StatefulSet replica count

On each sync period the controller:

• Reads current metrics for Pods selected by the scale target
• Computes a desired replica count
• Patches the object's /scale subresource

The Deployment controller then creates or deletes Pods to match. CPU utilization targets are percentages of each container's CPU request, so missing requests break utilization scaling.

Verify Metrics Server and resource metrics

Confirm the aggregated Metrics API is Available:

kubectl get apiservice v1beta1.metrics.k8s.io

NAME                     SERVICE                      AVAILABLE   AGE
v1beta1.metrics.k8s.io   kube-system/metrics-server   True        52s

AVAILABLE must be True. Exercise the API with kubectl top:

kubectl top nodes

NAME       CPU(cores)   CPU(%)   MEMORY(bytes)   MEMORY(%)
k8s-cp     600m         20%      3641Mi          55%
worker01   32m          3%       1219Mi          65%

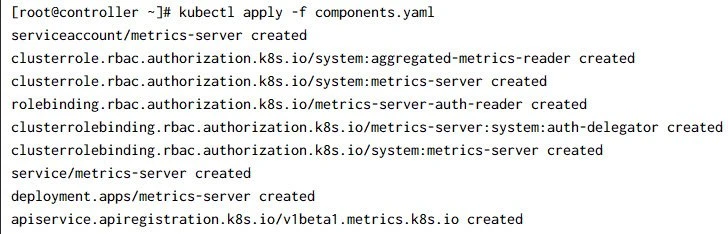

When this fails with Metrics API not available, install and patch Metrics Server as shown in monitor Pod and container resources before continuing. This lab runs registry.k8s.io/metrics-server/metrics-server:v0.9.0.

Prepare a scalable Deployment

Create a namespace and a Deployment that can burn CPU when requested, plus a Service for the load client:

kubectl create namespace hpa-lab

namespace/hpa-lab created

kubectl apply -f - <<'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
  name: php-apache
  namespace: hpa-lab
  labels:
    app: php-apache
spec:
  replicas: 1
  selector:
    matchLabels:
      app: php-apache
  template:
    metadata:
      labels:
        app: php-apache
    spec:
      containers:
      - name: php-apache
        image: registry.k8s.io/hpa-example
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: 200m
            memory: 64Mi
          limits:
            cpu: 500m
            memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
  name: php-apache
  namespace: hpa-lab
spec:
  selector:
    app: php-apache
  ports:
  - port: 80
    targetPort: 80
EOF

Wait until the Deployment is Available:

kubectl -n hpa-lab wait \
  --for=condition=Available deployment/php-apache \
  --timeout=120s

deployment.apps/php-apache condition met

Then confirm metrics include the app. kubectl top may need one additional Metrics Server scrape after the Pod becomes Ready; Metrics Server normally collects metrics every 15 seconds.

kubectl -n hpa-lab top pods

NAME                          CPU(cores)   MEMORY(bytes)
php-apache-79b59ffff8-skwr8   17m          23Mi

The CPU request of 200m is the denominator for utilization. At idle, usage is a small fraction of that request.

Create an HPA imperatively

kubectl autoscale creates an autoscaling/v2 HorizontalPodAutoscaler. Prefer the current --cpu flag (percentage utilization):

kubectl -n hpa-lab autoscale deployment php-apache --cpu=50% --min=1 --max=5

horizontalpodautoscaler.autoscaling/php-apache autoscaled

Inspect the object:

kubectl -n hpa-lab get hpa

Early on, metrics may still show as unknown until the next scrape:

NAME         REFERENCE               TARGETS              MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: <unknown>/50%   1         5         0          0s

After Metrics Server reports values, idle utilization settles near zero against the 50% target:

NAME         REFERENCE               TARGETS       MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 0%/50%   1         5         1          16s

Columns mean:

Export the generated YAML as a starting point for declarative config:

kubectl -n hpa-lab get hpa php-apache -o yaml

You should see apiVersion: autoscaling/v2, scaleTargetRef pointing at Deployment/php-apache, and a Resource metric with averageUtilization: 50.

Define HPA with autoscaling/v2

Declarative HPA keeps the same fields under version control. Apply (or replace) the object:

kubectl apply -f - <<'EOF'
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: php-apache
  namespace: hpa-lab
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: php-apache
  minReplicas: 1
  maxReplicas: 5
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 50
  behavior:
    scaleDown:
      stabilizationWindowSeconds: 30
      policies:
      - type: Percent
        value: 100
        periodSeconds: 15
EOF

Core fields:

Stay on autoscaling/v2. Do not write new manifests against deprecated beta HPA API versions. The manifest above includes a short behavior.scaleDown block so this lab can observe scale-down without waiting five minutes.

Generate load and observe scale-up

Run a client Pod that hits the Service in a tight loop. Use an image with wget (busybox works; agnhost does not treat /bin/sh as its entrypoint):

kubectl apply -f - <<'EOF'
apiVersion: v1
kind: Pod
metadata:
  name: load-gen
  namespace: hpa-lab
spec:
  restartPolicy: Never
  containers:
  - name: load
    image: busybox:1.36
    command:
    - /bin/sh
    - -c
    - while true; do wget -q -O- http://php-apache >/dev/null; done
EOF

Watch HPA and Deployment while load runs. Leave this in a second terminal while you create and delete load-gen:

watch -n 10 '
kubectl -n hpa-lab get hpa php-apache
kubectl -n hpa-lab get deployment php-apache
'

Sampled output from this lab:

NAME         REFERENCE               TARGETS        MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 90%/50%   1         5         1          6m12s
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
php-apache   2/2     2            2           7m11s

A few syncs later utilization spiked further and replicas rose again:

NAME         REFERENCE               TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 246%/50%   1         5         2          6m23s
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
php-apache   4/4     4            4           7m22s

kubectl -n hpa-lab get pods -l app=php-apache -o wide

NAME                          READY   STATUS    RESTARTS   AGE     IP             NODE
php-apache-79b59ffff8-cj2mk   1/1     Running   0          6s      192.168.5.44   worker01
php-apache-79b59ffff8-pngrh   1/1     Running   0          21s     192.168.5.42   worker01
php-apache-79b59ffff8-pv9rv   1/1     Running   0          6s      192.168.5.43   worker01
php-apache-79b59ffff8-skwr8   1/1     Running   0          7m23s   192.168.5.38   worker01

There is always a delay between load and scaling. Metrics Server aggregates over a scrape window, and the HPA controller evaluates on its own interval. Do not expect a one-second reaction.

Observe scale-down

Stop the load:

kubectl -n hpa-lab delete pod load-gen

With the lab behavior.scaleDown.stabilizationWindowSeconds: 30, replicas fell after utilization dropped:

NAME         REFERENCE               TARGETS       MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 1%/50%   1         5         5          7m58s
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
php-apache   3/3     3            3           8m57s

Then:

NAME         REFERENCE               TARGETS       MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 0%/50%   1         5         3          8m14s
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
php-apache   1/1     1            1           9m13s

Scale-down is deliberately calmer than scale-up:

• Recent recommendations inside the stabilization window can keep replica counts high briefly
• minReplicas is the floor even when utilization is near zero
• Without a custom behavior, the default scale-down stabilization is about five minutes

Autoscale with memory metrics

You can target memory on the same HPA using autoscaling/v2. Two common styles:

Example that keeps CPU utilization and adds an absolute memory average (one HPA only):

kubectl -n hpa-lab patch hpa php-apache \
  --type=merge \
  -p='{
    "spec": {
      "metrics": [
        {
          "type": "Resource",
          "resource": {
            "name": "cpu",
            "target": {
              "type": "Utilization",
              "averageUtilization": 50
            }
          }
        },
        {
          "type": "Resource",
          "resource": {
            "name": "memory",
            "target": {
              "type": "AverageValue",
              "averageValue": "100Mi"
            }
          }
        }
      ]
    }
  }'

horizontalpodautoscaler.autoscaling/php-apache patched

kubectl -n hpa-lab get hpa php-apache

On this lab, after adding both metrics, kubectl get hpa showed:

NAME         REFERENCE               TARGETS                              MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   cpu: 0%/50%, memory: 26708Ki/100Mi   1         5         4          9m13s

Kubernetes evaluates every configured metric and uses the highest replica recommendation. Do not create a second HPA for the same Deployment — that produces AmbiguousSelector and ScalingActive=False. Avoid artificial memory-pressure loops that risk node OOM; size memory targets from quiet kubectl top readings instead.

Configure scaling behavior

The behavior field separates scale-up and scale-down policy. This lab used a practical scale-down rule:

behavior:
  scaleDown:
    stabilizationWindowSeconds: 30
    policies:
    - type: Percent
      value: 100
      periodSeconds: 15

Tolerance (ignore tiny metric noise) exists as an advanced, version-sensitive option on recent HPA APIs. Treat it as optional; most tutorials start with utilization targets and stabilization windows only.

Supported scale targets

HPA updates the scale subresource. Common targets:

• Deployment
• StatefulSet
• Other resources that implement scale (ReplicaSet, some custom resources)

Confirm the subresource exists:

kubectl -n hpa-lab get --raw /apis/apps/v1/namespaces/hpa-lab/deployments/php-apache/scale

Trimmed output:

{
  "kind": "Scale",
  "apiVersion": "autoscaling/v1",
  "spec": { "replicas": 1 },
  "status": { "replicas": 1, "selector": "app=php-apache" }
}

Do not point HPA at a bare Pod. A single Pod has no replica scale subresource for HPA to manage.

HPA vs VPA

This article does not install or configure Vertical Pod Autoscaler. Use HPA when more copies of the same Pod help; use VPA when a single Pod needs different CPU or memory sizing.

Troubleshooting

What's Next

• Kubernetes PodDisruptionBudget with Drain Examples
• Kubernetes Static Pods and Mirror Pods
• Kubernetes Volumes with Practical Examples

References

• Horizontal Pod Autoscaling
• HorizontalPodAutoscaler Walkthrough
• HorizontalPodAutoscaler autoscaling/v2 API
• Metrics Server

Summary

You verified Metrics Server, created a Deployment with CPU requests, and attached an HPA with kubectl autoscale and autoscaling/v2. Under synthetic HTTP load, CPU utilization rose above the target and the controller increased replicas through the Deployment scale subresource. After the load stopped, scale-down returned to minReplicas, with timing shaped by the stabilization window in behavior.

Memory metrics belong on the same HPA object when you need them; a second HPA on the same Pods fails with AmbiguousSelector. HPA remains the horizontal tool in the control plane — pair it with Metrics Server and honest resource requests, and leave VPA, custom metrics, and cluster autoscaling for their own workflows.

Clean up with kubectl delete namespace hpa-lab when you finish. Keep Metrics Server if other lessons need kubectl top.
