HCP Terraform Workspaces and Projects

Once your state and runs live in HCP Terraform, the interesting question stops being "where is my state" and becomes "how do I lay this out". A real organization has networking, databases, and applications, several environments of each, and different people allowed to touch different parts.

HCP Terraform gives you two containers for that, one nested inside the other:

Organization
├── Project: Application
│   ├── Workspace: network
│   ├── Workspace: database
│   └── Workspace: application
└── Project: Platform
    └── Workspace: shared-services

• The organization is the billing and membership boundary
• Projects group workspaces and scope who can reach them
• Workspaces hold the infrastructure

This lesson maps to objectives 8a and 8c of the Terraform Associate (004) exam. Everything below was run against a real organization from an Ubuntu VM, in ~/terraform-labs/hcp-terraform-workspaces-projects/.

If you have not connected the CLI to HCP Terraform yet, the HCP Terraform tutorial covers terraform login and the first remote run.

What is an HCP Terraform workspace?

A workspace is everything Terraform needs to manage one collection of infrastructure.

Locally that job is done by a directory:

• Configuration files
• A state file beside them
• Variables in .tfvars
• Credentials in your shell

A workspace holds the same four things, in a place your whole team can reach:

Two extras come with the managed version:

• Run history — every plan and apply leaves a record with its logs and the change that caused it
• State versions — you can look at what state contained last Tuesday

The resource count on the workspace page is read from current state and includes data sources, not only managed resources.

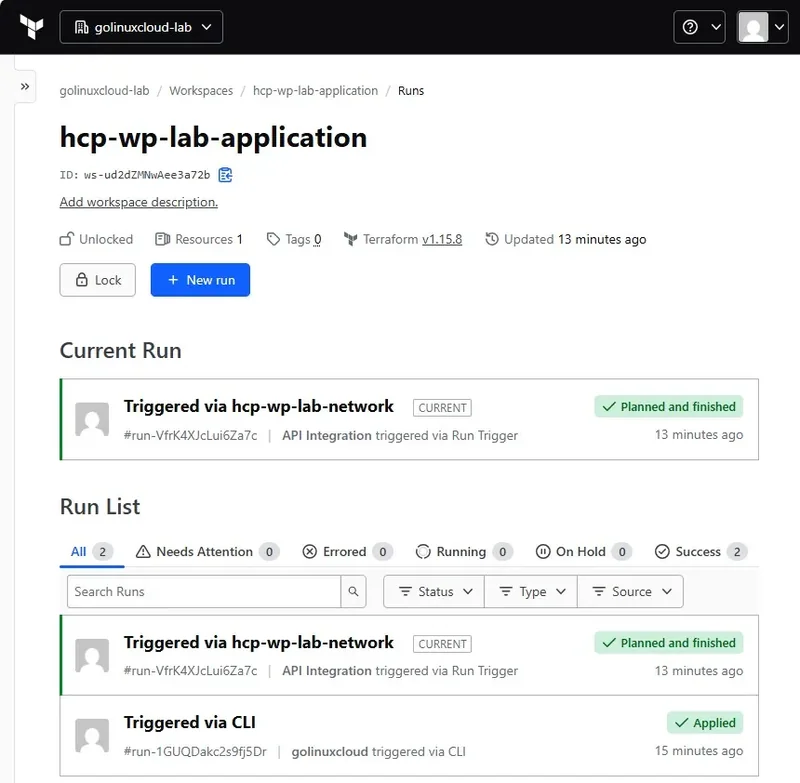

The run list is where that history surfaces, one row per run with who or what started it:

Both runs here ended successfully, but they reached the workspace by different routes:

• One was started by a person typing terraform apply
• The other was started by another workspace finishing its own apply — the run trigger mechanism covered later on

The header strip is worth reading too, since it summarizes the workspace at a glance: unlocked, one resource in state, and pinned to Terraform 1.15.8.

Separate workspaces behave like separate working directories — a run in one cannot see the state of another unless you deliberately share it.

terraform workspace show

Sample output:

hcp-wp-lab-network

That name is the HCP Terraform workspace this directory drives, not a local label. Keep that in mind, because the same command means something different in a purely local project.

What is an HCP Terraform project?

A project is a folder that holds workspaces, and more importantly a boundary you can attach permissions to:

• Instead of granting a team access to fourteen workspaces one at a time, you grant it access to the project that contains them
• HashiCorp's own advice is to define projects around the groups that need distinct access rules — business units, departments, or technical teams

Every workspace belongs to exactly one project. When you create a workspace without saying which, it goes into the organization's Default Project, which you can rename but cannot delete.

Organization: golinuxcloud-lab
├── Project: Application          (owned by the app team)
│   ├── hcp-wp-lab-network
│   ├── hcp-wp-lab-application
│   ├── hcp-wp-lab-app-dev
│   └── hcp-wp-lab-app-test
└── Project: Default Project      (where unassigned workspaces land)

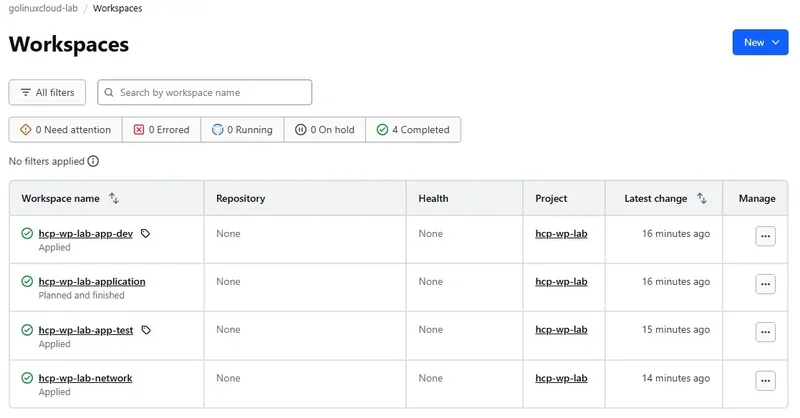

The organization workspace list makes the grouping visible, because every workspace names the project it belongs to:

The Project column is the useful one for auditing a layout you inherited:

• A column full of Default Project means nobody has organized anything yet
• The Repository and Health columns read None on all four — these workspaces are CLI-driven, not VCS-connected, and health assessments are a paid feature that stays off

Projects carry a few settings of their own that are easy to miss:

• Default execution mode — a project inherits the organization mode and can override it, and new workspaces in the project inherit the project's choice
• Project tags — key-value tags that workspaces in the project inherit, with a limit of 10 project tags and 10 workspace tags
• Auto-destroy inactive workspaces — a scheduled destroy after a period with no state change, available on paid editions and intended for development only
• Team access — the reason most people reach for projects, though project permissions require the Essentials edition or above

Deleting a project only works when it is empty, so you move or delete its workspaces first.

Resist the urge to create a project per resource group or a project per workspace — if a project would only ever hold one workspace, it is a folder with no purpose.

HCP workspace vs project vs Terraform CLI workspace

Terraform uses the word "workspace" for two unrelated things, and the collision causes more confusion than any other part of HCP Terraform. Hold the three concepts apart like this:

Project
→ groups HCP Terraform workspaces and scopes access to them

HCP Terraform workspace
→ one collection of infrastructure: configuration, variables, state, runs, settings

Terraform CLI workspace
→ multiple named state instances for one working directory and backend

The practical differences matter more than the definitions:

You can watch the distinction bite. This directory binds itself to one named workspace, so the CLI reports exactly one:

terraform workspace list

Sample output:

* hcp-wp-lab-network

There is nothing to switch between, and Terraform says so plainly when you ask for another one:

terraform workspace new hcp-wp-lab-scratch

Sample output:

workspaces not supported

That error is not a permissions problem or a missing feature:

• The cloud block pinned this directory to a single workspace by name
• CLI workspace commands have nothing to do in that binding

Later in this article the same commands work, because the binding changes from a name to a set of tags. If you want the local-only feature in full, the Terraform CLI workspaces lesson covers terraform.tfstate.d and when named state instances are worth using.

Create and organize workspaces from the CLI

You can create workspaces in the UI, through the API, or by initializing a directory that names one.

The CLI path keeps the workspace name next to the configuration it belongs to, which is why it suits a repository of small components. The binding lives in a cloud block:

terraform {
  cloud {
    organization = "golinuxcloud-lab"

    workspaces {
      project = "hcp-wp-lab"
      name    = "hcp-wp-lab-network"
    }
  }
}

resource "terraform_data" "network_id" {
  input = "net-lab-0a1b2c3d"
}

output "network_id" {
  value = terraform_data.network_id.output
}

The project argument decides where the workspace lands, so the workspace never has to be moved out of Default Project afterwards. Initializing the directory sets up the connection:

terraform init

Sample output:

Initializing HCP Terraform...

Initializing provider plugins...
- terraform.io/builtin/terraform is built in to Terraform

HCP Terraform has been successfully initialized!

Neither the project nor the workspace existed before terraform init, and both existed afterwards.

Terraform 1.6+ supports this implicit project creation workflow:

• When workspaces.project names a project that does not yet exist, HCP Terraform attempts to create it during initialization
• For production organization design, creating projects deliberately first is still useful when you want to configure permissions, execution mode, tags, or auto-destroy settings before workspaces arrive

With the directory bound, a plan and apply run on HCP Terraform's workers and stream back to you:

terraform apply -auto-approve

Sample output:

Running apply in HCP Terraform. Output will stream here.

To view this run in a browser, visit:
https://app.terraform.io/app/golinuxcloud-lab/hcp-wp-lab-network/runs/run-dPAaub3mnxU4PrFe

Waiting for the plan to start...

Terraform v1.15.8
on linux_amd64
Initializing plugins and modules...

  # terraform_data.network_id will be created
  + resource "terraform_data" "network_id" {
      + input  = "net-lab-0a1b2c3d"
    }

Plan: 1 to add, 0 to change, 0 to destroy.

terraform_data.network_id: Creation complete after 0s [id=3ecec6e2-51a8-34df-9edf-557a8b3da41d]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Outputs:
network_id = "net-lab-0a1b2c3d"

The run URL is the useful part:

• It names the organization and the workspace the run went to
• That is the quickest way to catch a cloud block pointing somewhere unintended

Everything else reads like a local apply.

A second component gets a second directory and a second workspace in the same project, differing only in the cloud block and the resources:

terraform {
  cloud {
    organization = "golinuxcloud-lab"

    workspaces {
      project = "hcp-wp-lab"
      name    = "hcp-wp-lab-application"
    }
  }
}

resource "terraform_data" "app_release" {
  input = "app-1.4.0"
}

After initializing and applying that directory too, both workspaces hold infrastructure. Ask each one what it manages, starting with the application workspace:

terraform state list

Sample output:

terraform_data.app_release

Only its own resource appears. Run the same command in the network directory to see the other side of the boundary:

terraform state list

Sample output:

terraform_data.network_id

Two workspaces in one project, two separate states, no overlap. That isolation is what lets two people apply at the same time without fighting over a lock.

Naming and grouping. HashiCorp recommends:

• Splitting a monolithic configuration into components and giving each one a workspace
• Naming workspaces so the component and the environment are both visible — such as networking-prod-us-east and networking-staging-us-east
• Remembering that workspace names must be unique across the whole organization — a bare network is a name you will regret the first time a second team needs one

Group with the project and be specific with the name.

Workspace settings that matter

A workspace has many settings pages and most of them are situational. These are the ones that change how runs behave, and they are worth knowing before you create your twentieth workspace:

The defaults are quietly opinionated. The workspace created earlier from the CLI came out with:

• Remote execution inherited from its project rather than set on the workspace
• Terraform version set to HCP Terraform's current default release at workspace creation — 1.15.8 in this lab
• Auto-apply off
• Run-trigger auto-apply off separately
• Health assessments off
• Remote State Sharing closed — no other workspace can read its state

That last default is the one that surprises people, and the run triggers section below explains when it bites.

Two settings deserve special care because they change behavior for other people:

• Moving a workspace to another project changes who can see it, since permissions follow the project
• Setting a working directory changes what the CLI uploads on a remote run — Terraform then expects the whole configuration directory to be available and may upload parent directories

Connect workspaces with run triggers

Splitting infrastructure into components creates a coordination problem: when the network changes, the application that sits on it may need to run too. A run trigger is the explicit way to say so:

network workspace succeeds
          ↓
application workspace queues a run

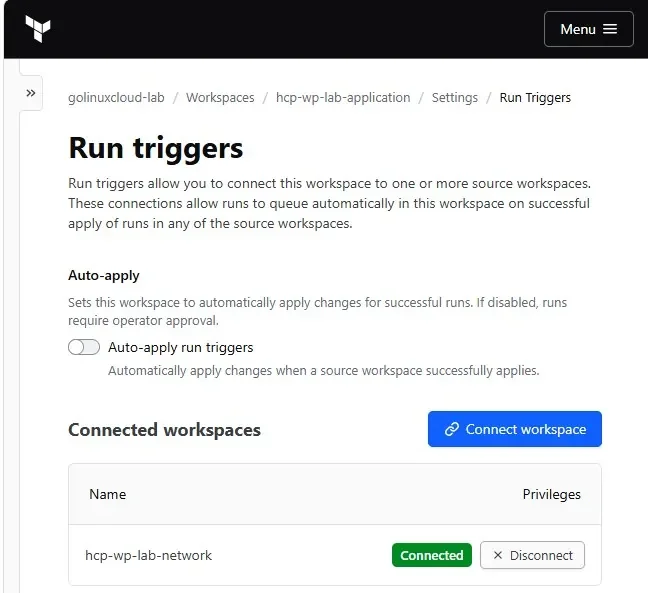

You configure it on the target workspace, the one that should react, under Settings then Run Triggers, by adding the source workspace it should watch:

Two things on that page decide the behavior:

• The connected workspaces list holds the sources — up to 20 of them; creating a connection needs admin access on this workspace plus permission to read runs on the source
• The Auto-apply run triggers toggle sits above it and ships disabled, which is why a triggered run stops and waits for approval instead of changing infrastructure on its own

In the lab I connected hcp-wp-lab-network as a source for hcp-wp-lab-application, then applied a change in the network directory:

terraform apply -auto-approve

Sample output:

Apply complete! Resources: 0 added, 1 changed, 0 destroyed.

That successful apply was enough. A new run appeared in the application workspace within seconds, and its page names the workspace responsible:

The run stopped at Planned and finished with nothing to add, change, or destroy, because the application configuration did not depend on the value the network workspace had just changed.

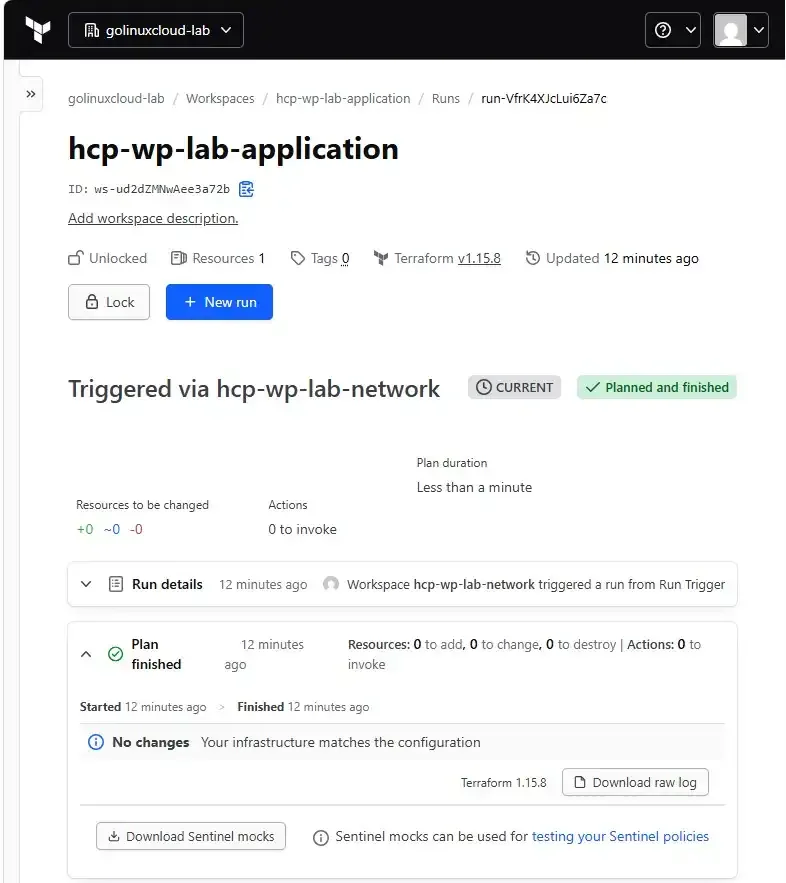

Its run details line records which workspace triggered it — the trail you follow when a cascade fires and you need to know why. Nobody approved anything and nothing was applied here.

The detail that catches people out is what a trigger does not move:

• Nothing about the network's outputs reached the application workspace
• All that crossed the boundary was the fact that an apply had succeeded

Use triggers where a real dependency exists and the direction is stable — such as a shared network that applications sit on.

Do not:

• Chain five workspaces into a pipeline nobody can read
• Use a trigger to paper over a value that should have been passed as a variable or an output

The Terraform data sources lesson covers the read side of that boundary.

Organize environments across projects and workspaces

There is no single correct hierarchy for dev, test, and production. The layout that works is the one where the access boundary and the deployment boundary match:

projects    → by team, application, or business unit
workspaces  → by independently managed configuration, usually component + environment

Two shapes are both common and both defensible:

• One project per application with app-dev, app-test, and app-prod workspaces inside it — suits a team that owns all its environments
• One project per environment, with production in a project only a few people can reach — suits an organization where production access is the thing being controlled

Pick based on who needs to be kept out, not on which diagram looks tidier.

When several environments share one configuration, you do not need one directory each. Swap the name argument for tags and Terraform links the directory to every workspace carrying them:

terraform {
  cloud {
    organization = "golinuxcloud-lab"

    workspaces {
      project = "hcp-wp-lab"

      tags = {
        layer = "app"
        env   = "nonprod"
      }
    }
  }
}

resource "terraform_data" "environment" {
  input = terraform.workspace
}

output "workspace_name" {
  value = terraform_data.environment.output
}

Nothing carries those tags yet, so a non-interactive init has nothing to attach to:

terraform init -input=false

Sample output:

Initializing HCP Terraform...

Error: No existing workspaces.

Use the "terraform workspace" command to create and select a new workspace.

That error is what a pipeline sees when the workspaces do not exist yet. Run init interactively and Terraform offers to create the first one for you:

terraform init

Sample output:

There are no workspaces with the configured tags (env=nonprod, layer=app)
  in your HCP Terraform organization. To finish initializing, Terraform needs at
  least one workspace available.

  Terraform can create a properly tagged workspace for you now. Please enter a
  name to create a new HCP Terraform workspace.

  Enter a value: hcp-wp-lab-app-dev

HCP Terraform has been successfully initialized!

Terraform created that workspace in the named project and attached both tags, env = nonprod and layer = app, so the next init in this directory finds it by tag rather than prompting. Adding the second environment is now a CLI operation:

terraform workspace new hcp-wp-lab-app-test

Sample output:

Created and switched to workspace "hcp-wp-lab-app-test"!

You're now on a new, empty workspace. Workspaces isolate their state,
so if you run "terraform plan" Terraform will not see any existing state
for this configuration.

Here the CLI workspace commands do work, because the directory addresses a set of workspaces rather than one. Applying now creates infrastructure in whichever one is selected:

terraform apply -auto-approve

Sample output:

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Outputs:
workspace_name = "hcp-wp-lab-app-test"

Note what terraform.workspace evaluated to: the full HCP Terraform workspace name, not a short environment label.

Configurations that branch on terraform.workspace need rewriting when they move to HCP Terraform:

• The value changes from test to something like hcp-wp-lab-app-test
• Old dev/prod comparisons quietly stop matching

Switch to the other workspace to prove the states really are separate:

terraform workspace select hcp-wp-lab-app-dev

Terraform confirms the switch in one line, and the state question is the interesting one. Ask what the newly selected workspace manages:

terraform state list

Sample output:

State management commands require a state file. Run this command
in a directory where Terraform has been run or use the -state flag
to point the command to a specific state location.

Same directory, same configuration, and yet no state at all — this workspace has never been applied.

After an apply here the output reads hcp-wp-lab-app-dev, and the test workspace is untouched. One configuration, two environments, two independent states.

Common design mistakes

Most HCP Terraform layouts that hurt to work with went wrong in the first week. These are the patterns worth avoiding:

The last one is easy to catch before it bites:

• If a configuration contains terraform.workspace == "prod", rewrite it as an input variable set per workspace while you still remember it is there
• Variables per workspace are the intended replacement, and they are a topic of their own

Clean up the lab

Everything here created real objects in a real organization, so unwind them in order. Destroy the infrastructure in each directory first, starting with the two single-workspace components:

for d in network application; do (cd ~/terraform-labs/hcp-terraform-workspaces-projects/$d && terraform destroy -auto-approve); done

The tags directory needs one destroy per selected workspace, since each holds its own state:

cd ~/terraform-labs/hcp-terraform-workspaces-projects/tags-multi && for w in hcp-wp-lab-app-dev hcp-wp-lab-app-test; do terraform workspace select $w && terraform destroy -auto-approve; done

Empty workspaces still count against your organization, and a project cannot be deleted while it contains any, so delete the four workspaces in the UI under each workspace's Destruction and Deletion settings, then delete the hcp-wp-lab project from its own settings page. Finish by removing the API token from the machine:

terraform logout

That leaves the credentials file present but empty, which is the expected result rather than a failure. The lab directories only hold cloud blocks and a terraform_data resource each, so delete them whenever you are done experimenting.

References

• HCP Terraform workspaces
• Projects overview
• Manage projects
• Workspace settings
• Run triggers
• Terraform state in HCP Terraform and remote state sharing
• tfe_outputs data source
• Connect to HCP Terraform with the cloud block

Summary

HCP Terraform gives you two containers and they answer different questions:

• A workspace answers "what is this collection of infrastructure and what state does it have" — holding the configuration source, variables, state versions, run history, and the settings that decide how runs execute
• A project answers "who should be able to touch this group of workspaces" — every workspace lives in exactly one, defaulting to Default Project until you say otherwise

Binding a directory to a workspace takes one cloud block, and the run URL that a remote apply prints is the fastest confirmation that you bound it to the right one.

The word "workspace" doing double duty is the single biggest source of confusion. The lab made the difference concrete:

• In a directory pinned with name, terraform workspace new simply answers workspaces not supported — there is nothing to switch between
• Change that binding to tags and the same commands start creating and selecting real HCP workspaces, each with its own state
• A freshly selected workspace reported no state file at all until it was applied

Watch out for terraform.workspace while you are there — it evaluates to the full HCP workspace name, so configurations that compared it against dev or prod need rewriting when they move.

For layout:

• Split configurations into components small enough to own
• Name workspaces so the component and environment are both visible
• Choose between project-per-application and project-per-environment based on who you need to keep out rather than on tidiness

Connect genuinely dependent workspaces with run triggers:

• A trigger queues a run and carries no data
• Triggered runs wait for a human unless you opt into their separate auto-apply setting

When one workspace really does need another's values:

• Read them with tfe_outputs and a token allowed to see that workspace's outputs
• Or fall back to terraform_remote_state and open Remote State Sharing on the source workspace first — new workspaces do not share their full state with anyone by default
