Configure autofs to Automount NFS Shares in Linux

autofs mounts network filesystems when a user or process accesses a path, then unmounts them after an idle timeout. Nothing is mounted until somebody touches the path, which is the single behaviour that separates autofs from an /etc/fstab entry.

The lab uses two hosts, and only one of them runs autofs. vm2.lab.example is a plain NFS server that exports a directory and is otherwise untouched by this guide. vm1.lab.example is the client, where you install autofs, write the map files, and watch the mounts appear and disappear on their own.

The work splits in two and crosses hosts only once:

1. On the server, once — create the exports and confirm they are offered to the client.
2. On the client, everything after that — install autofs, write the master map and the indirect, direct, and wildcard map files, then trigger the mounts, verify them, tune the idle timeout, and troubleshoot.

Indirect, direct, and wildcard are all autofs map types, so all three are configured on the client even though the data they mount lives on the server. Nothing sends you back to the server after step one.

On Debian and Ubuntu, install autofs and nfs-common on the client and use the distribution service unit name; the map file syntax matches RHEL. This article uses dnf, autofs, and nfs-server on a two-VM RHEL 10 lab.

Set the host names once so the commands below read the same on any lab:

export NFS_SERVER=vm2.lab.example
export NFS_CLIENT=vm1.lab.example
export NFS_EXPORT=/nfs/projects

The concepts come first, then the hands-on work starts on $NFS_SERVER with the exports, and every section after that runs on $NFS_CLIENT. The server needs /nfs/projects exported to the client with the nfs firewalld service open before any map will work.

What Is autofs?

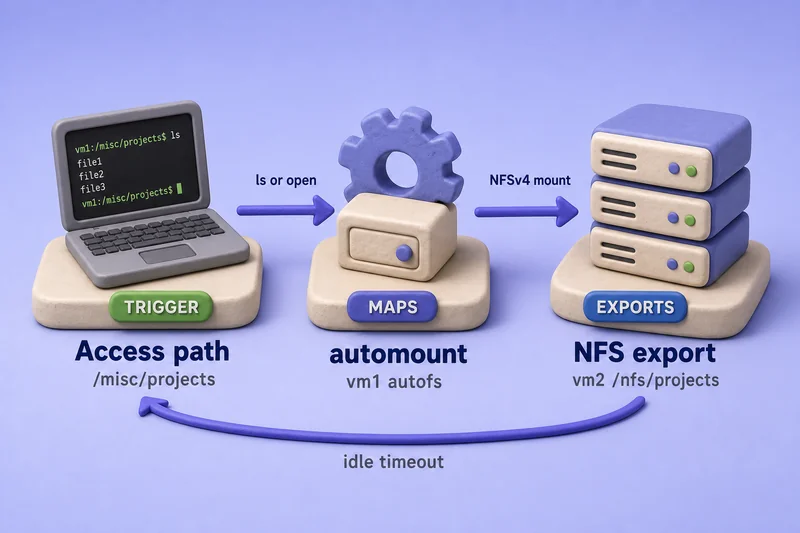

autofs is the Linux automount service. The automount daemon reads map files, creates automount points, and mounts the backing filesystem when something accesses the path. Follow one mount from the access that triggers it to the export that satisfies it:

The client holds no permanent NFS mount, so findmnt shows nothing for that path until the first access, and nothing again once the idle timer expires. That is the whole difference from /etc/fstab, which mounts at boot or on mount -a and keeps the filesystem mounted until you umount it.

NFS is a common autofs backend, but the maps you edit are autofs configuration—not NFS server setup.

autofs Quick Reference

Understand autofs Configuration

autofs uses a two-level layout:

master map
   ↓
automount map
   ↓
key + options + source

Prepare the NFS Server Exports

Build the server side first, because autofs has nothing to mount until an export exists. Everything in this section runs on $NFS_SERVER, and every section after it runs on the client.

The indirect and direct maps mount /nfs/projects, which comes from NFS server and client in Linux. The wildcard map later needs a second export holding one directory per user, so create that now:

sudo mkdir -p /exports/users/alice /exports/users/bob
echo '/exports/users vm1.lab.example(rw,sync)' | sudo tee -a /etc/exports
sudo exportfs -ra

Confirm the live export table lists both paths against the client host:

sudo exportfs -v

/nfs/projects 	vm1.lab.example(sync,wdelay,hide,no_subtree_check,sec=sys,rw,secure,root_squash,no_all_squash)
/exports/users	vm1.lab.example(sync,wdelay,hide,no_subtree_check,sec=sys,rw,secure,root_squash,no_all_squash)

Both exports name vm1.lab.example, so the client is permitted to mount them. If either line is missing, autofs will fail later with a mount error rather than a map error. The rest of the guide runs on the client.

Install autofs on the Client

RHEL 10 expects autofs installed and running before map files are useful. On $NFS_CLIENT, install the client packages and start the service:

sudo dnf install -y autofs nfs-utils

Complete!

Enable and start autofs before you add map files:

sudo systemctl enable --now autofs

Created symlink '/etc/systemd/system/multi-user.target.wants/autofs.service' → '/usr/lib/systemd/system/autofs.service'.

Confirm the daemon is running:

systemctl is-active autofs

active

Create matching nfsdemo / projects (UID/GID 1010) on the client when the server export uses group write with root_squash:

sudo groupadd -g 1010 projects 2>/dev/null || true
sudo useradd -u 1010 -g projects -m nfsdemo 2>/dev/null || true

After you edit map files, reload the running daemon:

sudo systemctl reload autofs

Configure an Indirect Map

An indirect map mounts keys under one parent directory. On the client, create the parent (not the key subdirectory):

sudo mkdir -p /misc

Register master-map entries in a drop-in file instead of overwriting /etc/auto.master. The packaged master file already includes /etc/auto.master.d/*.autofs:

sudo touch /etc/auto.direct /etc/auto.users

Add the master-map drop-in that references all three map files:

sudo tee /etc/auto.master.d/nfs-lab.autofs <<'EOF'
/misc	/etc/auto.misc
/-	/etc/auto.direct
/users	/etc/auto.users
EOF

The indirect map file lists the key, NFS options, and export:

projects	-fstype=nfs,vers=4.2,rw	vm2.lab.example:/nfs/projects

Create the indirect map file on the client:

sudo tee /etc/auto.misc <<'EOF'
projects	-fstype=nfs,vers=4.2,rw	vm2.lab.example:/nfs/projects
EOF

Reload autofs so the new maps are active:

sudo systemctl reload autofs

A process that accesses /misc/projects triggers a mount of vm2.lab.example:/nfs/projects at that path.

Verify an Indirect Automount

Starting autofs does not mount NFS yet. On the client, confirm only the automount parent exists before access:

findmnt /misc/projects 2>&1 || echo 'no NFS mount yet'

findmnt: no entry for /misc/projects
no NFS mount yet

The parent indirect mount may already be registered:

findmnt /misc

TARGET SOURCE         FSTYPE OPTIONS
/misc  /etc/auto.misc autofs rw,relatime,fd=6,pgrp=34651,timeout=300,minproto=5,maxproto=5,indirect,pipe_ino=148340

Access the indirect path as nfsdemo to trigger the mount:

sudo -u nfsdemo ls /misc/projects

After access, the NFS filesystem appears:

findmnt /misc/projects

TARGET         SOURCE                          FSTYPE OPTIONS
/misc/projects vm2.lab.example:/nfs/projects nfs4   rw,relatime,vers=4.2,rsize=262144,wsize=262144,namlen=255,hard,fatal_neterrors=none,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.56.116,local_lock=none,addr=192.168.56.117

vm2.lab.example:/nfs/projects in SOURCE confirms the indirect map mounted the NFS export on first access. hard in the options line is normal NFS client behavior; avoid soft in production maps because soft timeouts can risk silent data loss on busy shares.

Configure a Direct Map

A direct map uses the full path as the key. It is still autofs configuration, so it belongs on the client alongside the indirect map, and the /- entry in /etc/auto.master.d/nfs-lab.autofs already points at /etc/auto.direct.

/mnt/direct-projects	-fstype=nfs,vers=4.2,rw	vm2.lab.example:/nfs/projects

Write the direct map file on the client:

sudo tee /etc/auto.direct <<'EOF'
/mnt/direct-projects	-fstype=nfs,vers=4.2,rw	vm2.lab.example:/nfs/projects
EOF

Pick up the new direct-map line:

sudo systemctl reload autofs

You do not need to create /mnt/direct-projects beforehand; autofs can create the trigger path when it is missing. If the directory already exists, autofs can still mount there—the underlying directory contents are hidden while the NFS filesystem is mounted on that path.

Direct vs Indirect Maps

Verify the direct map on the client:

sudo -u nfsdemo ls /mnt/direct-projects

Confirm the direct-map NFS source:

findmnt /mnt/direct-projects

TARGET               SOURCE                          FSTYPE OPTIONS
/mnt/direct-projects vm2.lab.example:/nfs/projects nfs4   rw,relatime,vers=4.2,rsize=262144,wsize=262144,namlen=255,hard,fatal_neterrors=none,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.56.116,local_lock=none,addr=192.168.56.117

Configure Wildcard Maps

A wildcard map substitutes the key into the source path, so one entry serves every directory under a shared parent export. This map consumes the /exports/users export created on the server earlier, and the /users master entry is already in /etc/auto.master.d/nfs-lab.autofs, so only the map file is missing:

sudo tee /etc/auto.users <<'EOF'
*	-fstype=nfs,vers=4.2,rw	vm2.lab.example:/exports/users/&
EOF

Reload so the wildcard map is active:

sudo systemctl reload autofs

* matches any single key. & in the source expands to that key, so access to /users/alice mounts vm2.lab.example:/exports/users/alice.

Trigger and verify:

sudo -u nfsdemo ls /users/alice

The wildcard source should appear in findmnt:

findmnt /users/alice

TARGET       SOURCE                             FSTYPE OPTIONS
/users/alice vm2.lab.example:/exports/users/alice nfs4   rw,relatime,vers=4.2,rsize=262144,wsize=262144,namlen=255,hard,fatal_neterrors=none,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.56.116,local_lock=none,addr=192.168.56.117

Centralized LDAP or SSSD map delivery is a separate workflow — see LDAP NFS home directories with autofs when maps come from the directory rather than local files.

Configure Automatic Unmount Timeout

autofs removes idle mounts after a timeout, and the timeout is a client setting in /etc/autofs.conf rather than anything on the NFS server. On RHEL 10 the packaged default is five minutes:

grep '^timeout' /etc/autofs.conf

timeout = 300

Lower the value for lab testing:

sudo sed -i 's/^timeout = 300/timeout = 30/' /etc/autofs.conf

Confirm the file shows the new timeout:

grep '^timeout' /etc/autofs.conf

timeout = 30

Restart autofs so the daemon reads /etc/autofs.conf:

sudo systemctl restart autofs

Trigger a mount, wait longer than the timeout without accessing the path, then inspect the mount table:

sudo -u nfsdemo ls /misc/projects >/dev/null
sleep 35
findmnt /misc/projects 2>&1 || echo 'unmounted after idle timeout'

unmounted after idle timeout

Only the indirect automount parent remains:

findmnt /misc

TARGET SOURCE         FSTYPE OPTIONS
/misc  /etc/auto.misc autofs rw,relatime,fd=6,pgrp=34651,timeout=30,minproto=5,maxproto=5,indirect,pipe_ino=148340

Use a longer production timeout unless you deliberately want aggressive cleanup of idle NFS mounts.

Reload autofs After Configuration Changes

After editing map files on the client, reload the service there:

sudo systemctl reload autofs

The service should still be active after reload:

systemctl is-active autofs

active

active after reload means the daemon re-read maps without a full restart. Use systemctl reload autofs after map files, direct maps, or master-map drop-in changes. Changes to daemon-wide settings in /etc/autofs.conf, such as timeout, require restarting autofs so the daemon starts with the new configuration (see the timeout section above).

Check recent autofs messages when a map does not behave as expected:

journalctl -u autofs --no-pager -n 8

Aug 08 17:25:04 vm1.lab.example systemd[1]: Started autofs.service - Automounts filesystems on demand.

Use autofs with NFS Home Directories

A common pattern maps /home/username to an NFS export per user with a wildcard indirect map under /home or a direct map per path. The mechanics match the /users wildcard example above: the server must export each home directory, UIDs must align, and the client map must use & or explicit keys.

Local file maps in this article stop at that pattern. Directory-served maps through OpenLDAP and SSSD belong in LDAP NFS home directories with autofs.

autofs vs /etc/fstab

autofs is not inherently faster than fstab; it changes mount timing and resource use. For persistent always-on NFS, see fstab UUID and LABEL and mount NFS share in Linux.

Troubleshoot autofs

Start on the client, because that is where autofs runs and where the logs are. Only the export check in the third row sends you back to the server:

Manual NFS mount is the control test when autofs fails:

sudo mkdir -p /tmp/nfs-manual

If this mount succeeds, NFS connectivity is fine and the map or autofs service is the problem:

sudo mount -t nfs -o vers=4.2 "$NFS_SERVER:$NFS_EXPORT" /tmp/nfs-manual

A successful manual mount confirms NFS reachability:

findmnt /tmp/nfs-manual

TARGET          SOURCE                          FSTYPE OPTIONS
/tmp/nfs-manual vm2.lab.example:/nfs/projects nfs4   rw,relatime,vers=4.2,rsize=262144,wsize=262144,namlen=255,hard,fatal_neterrors=none,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.56.116,local_lock=none,addr=192.168.56.117

If manual mount works but autofs does not, the problem is in map syntax or the autofs service—not basic NFS connectivity.

sudo umount /tmp/nfs-manual

Complete autofs Example

On the NFS server (vm2.lab.example)

1. Complete NFS server setup — /nfs/projects exported to vm1.lab.example(rw,sync)
2. Add /exports/users export and alice / bob subdirectories for the wildcard map
3. sudo exportfs -ra and sudo exportfs -v — confirm both exports list vm1.lab.example

On the autofs client (vm1.lab.example)

1. sudo dnf install -y autofs nfs-utils and sudo systemctl enable --now autofs
2. Create nfsdemo / projects (UID/GID 1010) matching the server
3. sudo tee /etc/auto.master.d/nfs-lab.autofs with /misc, /-, and /users entries
4. Create /etc/auto.misc, /etc/auto.direct, and /etc/auto.users with vers=4.2,rw (no soft or intr)
5. sudo systemctl reload autofs after each map batch
6. findmnt /misc/projects — no NFS line before access
7. sudo -u nfsdemo ls /misc/projects — trigger indirect mount
8. sudo -u nfsdemo ls /mnt/direct-projects and sudo -u nfsdemo ls /users/alice — trigger direct and wildcard maps
9. Lower timeout in /etc/autofs.conf, restart autofs, wait past idle time, confirm NFS mounts disappear
10. sudo systemctl reload autofs after further map edits

References

• autofs(5) — Linux manual page
• autofs(8) — Linux manual page
• Red Hat — Setting up an NFS server

Summary

You configured autofs on vm1.lab.example to mount NFS exports from vm2.lab.example only when a user accesses the configured path. Indirect maps place keys under a parent such as /misc/projects, direct maps bind a full path like /mnt/direct-projects, and wildcard maps substitute the key into the source with * and &.

The verification pattern that surprises most readers is that systemctl start autofs alone does not NFS-mount anything useful until path access occurs—use findmnt before and after ls to see the difference. Set timeout in /etc/autofs.conf when you need idle unmount behavior; reload autofs after map or master-map edits, and restart after /etc/autofs.conf changes.

For always-on NFS mounts, use /etc/fstab (fstab guide). For building the server exports this article assumed, use NFS server and client in Linux. For LDAP-delivered home maps, continue with LDAP NFS home directories with autofs.
