Secure HTTPS File Transfer with curl and Apache on RHEL

You need two hosts: an RHEL-family Apache file server on vm1.lab.example and a client on vm2.lab.example. Server-side steps use dnf, httpd, firewalld, and SELinux. The client curl commands work on any Linux host with curl installed. The server terminates TLS, accepts WebDAV PUT on /web/, and requires a username and password before httpd starts listening. The client verifies the server certificate with --cacert, then uploads and downloads with curl. If you already transfer files with scp or rsync over SSH, use this pattern when port 443 and a web endpoint are the required path.

Quick answer

Pass only the username to -u; curl prompts for the password instead of reading it from the command line. Use the hostname that matches the certificate (vm1.lab.example here), not the bare IP, when you pass --cacert.

How the HTTPS file transfer works

Three layers stack on top of each other:

1. Transport — TLS on port 443 encrypts the connection. curl must trust the server certificate (--cacert, system CA store, or a public CA) and the URL hostname must match the certificate name.
2. Protocol — curl -T sends an HTTP PUT request. Apache needs WebDAV (Dav On) on /web/ so PUT creates or replaces files on disk.
3. Access control — HTTP basic authentication limits who can read or write /web/. Pass -u username and enter the password when curl prompts.

Store WebDAV files outside Apache's normal DocumentRoot so /web/ is the only intended HTTP entry point. Files are not also reachable under https://SERVER/secret/ or another default site path.

Mutual TLS (--cert and --key on the client) is a separate pattern used when the server requires a client certificate during the TLS handshake. This setup uses TLS verification plus HTTP basic auth instead.

Install Apache and WebDAV

On RHEL, Rocky Linux, AlmaLinux, or Fedora, install httpd, mod_ssl, httpd-tools (for htpasswd), openssl, and policycoreutils-python-utils (needed for semanage on SELinux systems). WebDAV modules ship with httpd and load from /etc/httpd/conf.modules.d/00-dav.conf.

dnf install -y httpd mod_ssl httpd-tools openssl policycoreutils-python-utils

Confirm mod_ssl and the DAV modules are loaded:

httpd -M | grep -E 'ssl_module|dav_module|dav_fs_module'

Sample output:

dav_module (shared)
 dav_fs_module (shared)
 ssl_module (shared)

dav_module provides WebDAV support, while dav_fs_module lets WebDAV store files on the local filesystem.

Filesystem WebDAV also needs a lock database. Create it and give apache ownership:

mkdir -p /var/lib/dav
chown apache:apache /var/lib/dav

DavLockDB belongs at server configuration level, not inside <Location>.

Create the WebDAV directory

Put upload data outside /var/www/html so it is not also published as part of the default website tree:

mkdir -p /var/www/webdav
echo 'download-me' > /var/www/webdav/sample.txt
chown apache:apache /var/www/webdav
chmod 775 /var/www/webdav

On RHEL with SELinux enforcing, label the directory so httpd can write uploaded files:

semanage fcontext -a -t httpd_sys_rw_content_t "/var/www/webdav(/.*)?"
restorecon -Rv /var/www/webdav

If semanage reports the rule already exists, run only restorecon.

Create the TLS certificate

Generate a key and certificate for the hostname clients use in the URL. This example uses vm1.lab.example on the file server:

openssl req -x509 -nodes -newkey rsa:2048 -days 365 \
  -keyout /etc/pki/tls/certs/vm1.lab.example.key \
  -out /etc/pki/tls/certs/vm1.lab.example.crt \
  -subj "/CN=vm1.lab.example" \
  -addext "subjectAltName=DNS:vm1.lab.example"
chmod 600 /etc/pki/tls/certs/vm1.lab.example.key

The certificate contains vm1.lab.example as a DNS name, so curl must use that hostname in the HTTPS URL.

Point Apache at those files. On RHEL, edit the two certificate directives in /etc/httpd/conf.d/ssl.conf:

SSLCertificateFile /etc/pki/tls/certs/vm1.lab.example.crt
SSLCertificateKeyFile /etc/pki/tls/certs/vm1.lab.example.key

Replace the default localhost.crt paths if they are still referenced there. Do not start httpd yet; create the WebDAV user and authenticated configuration first.

Create the WebDAV user

Create a password file and user filetransfer on the file server:

htpasswd -c /etc/httpd/webdav.htpasswd filetransfer

htpasswd prompts for the password twice instead of reading it from the command line:

New password:
Re-type new password:
Adding password for user filetransfer

Restrict permissions so only root and apache can read the file:

chmod 640 /etc/httpd/webdav.htpasswd
chown root:apache /etc/httpd/webdav.htpasswd

Configure authenticated WebDAV

Map /web/ to the directory outside DocumentRoot and require basic auth before you start Apache:

cat > /etc/httpd/conf.d/file-transfer-webdav.conf <<'EOF'
DavLockDB /var/lib/dav/DavLock

Alias /web/ /var/www/webdav/

<Directory /var/www/webdav>
    Options Indexes
    AllowOverride None
    AuthType Basic
    AuthName "HTTPS file transfer"
    AuthUserFile /etc/httpd/webdav.htpasswd
    Require valid-user
</Directory>

<Location /web/>
    Dav On
</Location>
EOF

Dav On is what allows curl -T (HTTP PUT). Require valid-user means no unauthenticated read or write access to /web/.

Start Apache

Validate the full configuration:

apachectl configtest

Sample output:

Syntax OK

Enable and start the service:

systemctl enable --now httpd

Open HTTPS in the firewall when firewalld is active:

firewall-cmd --permanent --add-service=https
firewall-cmd --reload

Confirm httpd is listening on 443:

ss -tlnp | grep ':443'

Sample output:

LISTEN 0 511 *:443 *:* users:(("httpd",pid=18011,fd=6))

Trust the certificate on the client

--cacert tells curl which PEM file to use when verifying the server. Copy that file to the client through a channel you already trust, such as your configuration management system, an internal PKI portal, or SSH if you have it. Do not download the trust material over an unverified HTTPS connection; that would undermine the bootstrap step.

If SSH access to the file server is available, copy the certificate into your home directory on the client:

scp admin@192.168.56.116:/etc/pki/tls/certs/vm1.lab.example.crt ~/vm1.lab.example.crt

The account must be able to read the PEM file on the server, or an administrator must place a copy in a path you can reach.

If DNS does not already resolve vm1.lab.example, add a hosts entry once. That step requires sudo on the client:

grep -q 'vm1.lab.example' /etc/hosts || echo '192.168.56.116 vm1.lab.example' | sudo tee -a /etc/hosts

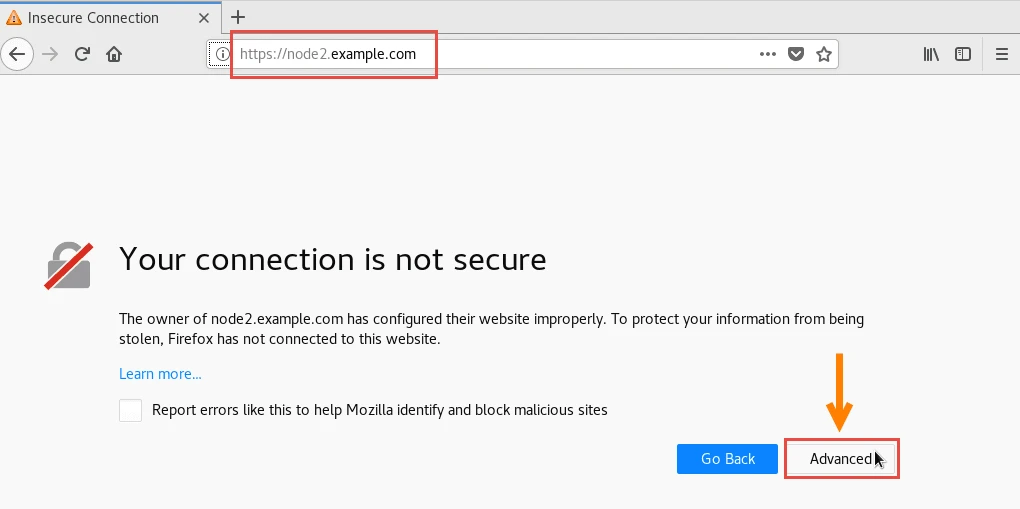

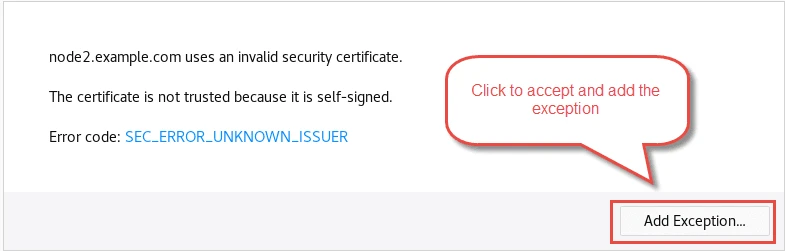

Test TLS verification with a read-only GET before you upload anything. Without a trusted certificate, curl rejects the self-signed server cert:

curl https://vm1.lab.example/web/sample.txt

Sample output:

curl: (60) SSL certificate problem: self-signed certificate
More details here: https://curl.se/docs/sslcerts.html

curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it.

Point curl at the copied certificate and supply credentials:

curl --cacert ~/vm1.lab.example.crt -u filetransfer https://vm1.lab.example/web/sample.txt

Enter the WebDAV password when prompted. Sample output:

download-me

That confirms both TLS verification and basic authentication work before you run an upload.

A request with --cacert but without -u should return 401:

curl -sS -o /dev/null -w '%{http_code}\n' --cacert ~/vm1.lab.example.crt https://vm1.lab.example/web/sample.txt

Sample output:

401

When many scripts on one host call the same internal server, you can install the certificate in the system trust store so plain curl works for every user. That requires root or sudo on the client. On RHEL and Fedora, as root:

cp ~/vm1.lab.example.crt /etc/pki/ca-trust/source/anchors/vm1.lab.example.crt

Rebuild the bundle:

update-ca-trust extract

After that, curl against https://vm1.lab.example/... verifies the server without --cacert on RHEL and Fedora clients.

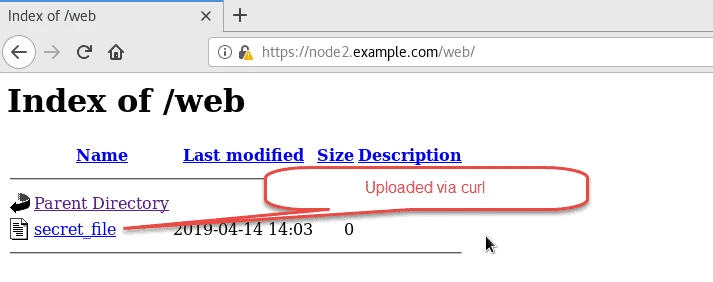

Upload a file securely with curl

On the client, create a local file and upload it with verified TLS and basic auth:

echo 'upload-from-client' > /tmp/client_upload.txt
curl --cacert ~/vm1.lab.example.crt -u filetransfer -T /tmp/client_upload.txt https://vm1.lab.example/web/client_upload.txt

-T (--upload-file) sends the file with HTTP PUT. --cacert verifies the server certificate. -u filetransfer makes curl prompt with Enter host password for user 'filetransfer': instead of putting the password on the command line, where other users could see it in a process listing.

Sample output after you enter the password:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html>
<head>
<title>201 Created</title>
</head><body>
<h1>Created</h1>
<p>Resource /web/client_upload.txt has been created.</p>
</body></html>

Because client_upload.txt did not already exist, 201 Created means Apache created the new resource successfully. Replacing an existing file may return a different successful status such as 204 No Content.

On the file server, confirm the uploaded content:

cat /var/www/webdav/client_upload.txt

Sample output:

upload-from-client

Seeing the expected content confirms that the file uploaded successfully.

Download a file securely with curl

Download the sample file with the same certificate trust and credentials:

curl --cacert ~/vm1.lab.example.crt -u filetransfer -o /tmp/downloaded.txt https://vm1.lab.example/web/sample.txt

-o writes the response body to /tmp/downloaded.txt instead of printing it to the terminal. Enter the WebDAV password when curl prompts for it.

Check the saved file:

cat /tmp/downloaded.txt

Sample output:

download-me

For more curl flags and HTTP methods, see the curl command cheat sheet.

Troubleshooting

References

• curl TLS options — everything curl
• curl client certificates — everything curl
• curl(1)
• Apache mod_auth_basic documentation
• httpd SSL/TLS — Red Hat Documentation
• Apache mod_ssl documentation
• Apache mod_dav documentation

Summary

Secure HTTPS file transfer stacks TLS encryption, certificate verification, and access control on an RHEL-family file server. You install Apache with mod_ssl and WebDAV, store uploads in /var/www/webdav outside DocumentRoot, map only /web/ with basic auth configured before httpd starts, and copy the server PEM to ~/vm1.lab.example.crt on the client through a trusted channel for curl --cacert.

Uploads use curl -T with -u username; downloads use curl -o with the same flags. Enter the password when prompted rather than on the command line. Both commands target https://vm1.lab.example so the hostname matches the certificate. Test TLS with a read-only GET before you upload. A 401 response means credentials are missing; an SSL error usually means --cacert points at the wrong file or the URL uses an IP instead of the certificate hostname.

On a host with a public CA certificate, plain curl is enough for TLS. Internal servers need --cacert with a CA or trusted server PEM, or a private CA in the system trust store. Reserve -k for lab debugging. For day-to-day server-to-server copies without a web front door, SSH-based tools remain simpler; use this pattern when HTTPS on port 443 is the required transport.
