Kubernetes Operator Metrics with Prometheus and controller-runtime

Metrics are the fastest way to tell whether a Kubernetes Operator is healthy in production. Logs explain individual events, but Prometheus metrics show whether the reconciler is falling behind, returning errors, hot-looping, timing out webhooks, or being throttled by the Kubernetes API server.

Most people searching for Kubernetes Operator metrics with Prometheus want a practical answer:

• Which metrics does controller-runtime expose?
• How do I expose /metrics from my operator?
• How do I create a Service and ServiceMonitor?
• How do I secure the endpoint?
• Which PromQL alerts should I start with?
• How do I add custom metrics without creating a cardinality problem?

This guide answers those questions as a step-by-step integration for Kubebuilder or Operator SDK projects using controller-runtime, prometheus-operator, and Grafana.

This is not a guide to the Kubernetes metrics.k8s.io Metrics API used by kubectl top, and it is not an HPA custom metrics tutorial. Here we are exposing the operator manager's /metrics endpoint and making Prometheus scrape it.

What you will build

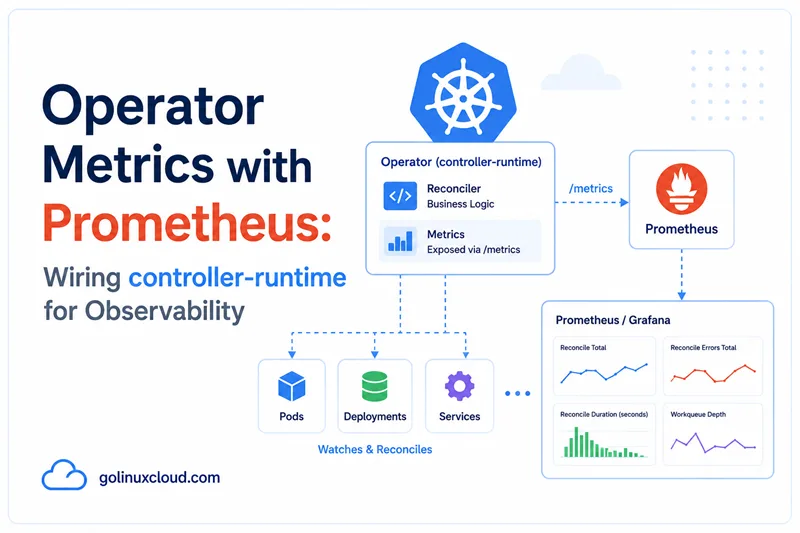

By the end, your operator metrics path should look like this:

controller-runtime manager
  -> /metrics on 8080 or 8443
  -> Kubernetes Service
  -> ServiceMonitor
  -> Prometheus target
  -> PromQL alerts and Grafana panels

The article assumes Prometheus is usually already installed in the cluster. That is the common production case because platform teams normally provide kube-prometheus-stack, prometheus-operator, or an equivalent managed Prometheus setup.

If your cluster does not have Prometheus yet, install it first or use an existing Prometheus stack. For a lab, the shortest path is usually a Helm install of kube-prometheus-stack; for production, follow your platform team's monitoring standard.

Check whether your cluster already has the Prometheus Operator CRDs:

kubectl get crd servicemonitors.monitoring.coreos.com prometheusrules.monitoring.coreos.com

Sample output when the CRDs are installed:

NAME                                      CREATED AT
servicemonitors.monitoring.coreos.com    2026-06-15T10:03:36Z
prometheusrules.monitoring.coreos.com    2026-06-15T10:03:37Z

If the CRDs are missing, kubectl returns:

Error from server (NotFound): customresourcedefinitions.apiextensions.k8s.io "servicemonitors.monitoring.coreos.com" not found
Error from server (NotFound): customresourcedefinitions.apiextensions.k8s.io "prometheusrules.monitoring.coreos.com" not found

That means a ServiceMonitor manifest will not apply yet. Install Prometheus Operator first, or use a plain Prometheus scrape_configs job instead of ServiceMonitor.

Lab environment used for the examples

I tested the Kubernetes commands in a disposable kind cluster with a Kubebuilder-style sample operator already running.

kind get clusters

Sample output:

crd-conv
demo
go-operator

The active cluster for the test was kind-demo:

kubectl get nodes

Sample output:

NAME                 STATUS   ROLES           AGE   VERSION
demo-control-plane   Ready    control-plane   12d   v1.35.0

The sample operator was named demoapp-operator. Replace that with your operator name and namespace in the commands below.

kubectl get deploy,svc -n demoapp-operator-system

Sample output:

NAME                                                  READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/demoapp-operator-controller-manager   1/1     1            1           9d

NAME                                                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/demoapp-operator-controller-manager-metrics-service   ClusterIP   10.96.196.45    <none>        8443/TCP   9d
service/demoapp-operator-webhook-service                      ClusterIP   10.96.196.179   <none>        443/TCP    9d

This was enough to validate the metrics Service, EndpointSlice, secure endpoint behavior, RBAC check, ServiceMonitor, and PrometheusRule manifests. A full Prometheus server was not installed in this kind cluster, so the final Prometheus target page is shown as the expected production check rather than a local screenshot.

Step-by-step wiring checklist

Use this as the shortest path from operator code to working Prometheus targets:

If the Prometheus target is missing, do not start with Go code. Start with selectors: Service selector, ServiceMonitor selector, and Prometheus serviceMonitorSelector.

Step 1: Check the default controller-runtime metrics

The exact set can vary by version and enabled features, but the high-value metrics fall into a few families.

Reconcile metrics

controller_runtime_reconcile_total{controller="database", result="success"}
controller_runtime_reconcile_total{controller="database", result="error"}
controller_runtime_reconcile_total{controller="database", result="requeue"}
controller_runtime_reconcile_total{controller="database", result="requeue_after"}
controller_runtime_reconcile_errors_total{controller="database"}
controller_runtime_reconcile_time_seconds_bucket{controller="database", le="..."}

Use these to answer:

• Is the reconciler running?
• Is it returning errors?
• Is reconcile latency rising?
• Is the controller requeueing more than normal?

Workqueue metrics

workqueue_depth{name="database"}
workqueue_queue_duration_seconds_bucket{name="database", le="..."}
workqueue_work_duration_seconds_bucket{name="database", le="..."}
workqueue_unfinished_work_seconds{name="database"}
workqueue_retries_total{name="database"}

Use these to answer:

• Is the operator falling behind?
• Are items sitting in the queue too long?
• Are resources stuck in retry loops?

REST client metrics

rest_client_requests_total{method="GET", code="200"}
rest_client_requests_total{method="PATCH", code="409"}
rest_client_requests_total{method="PATCH", code="429"}
rest_client_request_duration_seconds_bucket{verb="GET", le="..."}

Use these to answer:

• Is the operator overloading the Kubernetes API?
• Are requests being throttled?
• Are conflict retries normal or excessive?
• Are API calls becoming slow?

Leader election metrics

leader_election_master_status{name="database-operator"}

For a highly available operator, the sum across replicas should normally be 1. A value of 0 means no active leader; a value greater than 1 suggests a dangerous leader election problem. See leader election explained.

Webhook metrics

If your operator runs admission webhooks, watch webhook request rate and latency:

controller_runtime_webhook_requests_total{webhook="/validate-v1-database"}
controller_runtime_webhook_latency_seconds_bucket{webhook="/validate-v1-database", le="..."}

Webhook metrics matter because a slow or broken webhook can block unrelated Kubernetes writes.

Step 2: Expose the metrics endpoint

Manager configuration

In controller-runtime, metrics are configured through manager options. A simplified example:

import (
    metricsserver "sigs.k8s.io/controller-runtime/pkg/metrics/server"
    ctrl "sigs.k8s.io/controller-runtime"
)

mgr, err := ctrl.NewManager(ctrl.GetConfigOrDie(), ctrl.Options{
    Scheme: scheme,
    Metrics: metricsserver.Options{
        BindAddress: ":8080",
        SecureServing: false,
    },
    HealthProbeBindAddress: ":8081",
})

For production, prefer secure metrics if your scaffold supports it:

Metrics: metricsserver.Options{
    BindAddress:   ":8443",
    SecureServing: true,
}

Kubebuilder and Operator SDK scaffolds change over time, so check your generated main.go and config/default patches. Some projects expose plain HTTP internally; others use secure metrics with authentication and TLS.

In a running cluster, confirm the manager process is actually using the metrics address you expect:

kubectl get deploy demoapp-operator-controller-manager \
  -n demoapp-operator-system \
  -o jsonpath='{.spec.template.spec.containers[0].args}'

Sample output from the kind test cluster:

["--metrics-bind-address=:8443","--leader-elect","--health-probe-bind-address=:8081","--webhook-cert-path=/tmp/k8s-webhook-server/serving-certs"]

That output means this operator uses secure metrics on 8443, not plain HTTP on 8080.

Service for metrics

Prometheus usually discovers Services. Expose the manager metrics port with a Service:

apiVersion: v1
kind: Service
metadata:
  name: database-operator-metrics
  namespace: database-operator-system
  labels:
    app.kubernetes.io/name: database-operator
spec:
  selector:
    control-plane: controller-manager
  ports:
    - name: metrics
      port: 8080
      targetPort: 8080

For secure metrics, the Service may expose 8443 with a port name such as https-metrics:

ports:
  - name: https-metrics
    port: 8443
    targetPort: 8443

The ServiceMonitor must reference this port name exactly.

Verify the Service exists:

kubectl get svc demoapp-operator-controller-manager-metrics-service \
  -n demoapp-operator-system

Sample output:

NAME                                                  TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
demoapp-operator-controller-manager-metrics-service   ClusterIP   10.96.196.45   <none>        8443/TCP   9d

Then verify the Service has a live endpoint. On Kubernetes 1.33+, prefer EndpointSlice over the older Endpoints API:

kubectl get endpointslices -n demoapp-operator-system \
  -l kubernetes.io/service-name=demoapp-operator-controller-manager-metrics-service

Sample output:

NAME                                                        ADDRESSTYPE   PORTS   ENDPOINTS    AGE
demoapp-operator-controller-manager-metrics-service-zm5mh   IPv4          8443    10.244.0.2   9d

If the endpoint list is empty, Prometheus will not be able to scrape the operator. Fix the Service selector before changing any Prometheus configuration.

Step 3: Scrape with ServiceMonitor

In clusters using prometheus-operator, the cleanest production path is a ServiceMonitor.

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: database-operator
  namespace: database-operator-system
  labels:
    release: prometheus
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: database-operator
  namespaceSelector:
    matchNames:
      - database-operator-system
  endpoints:
    - port: metrics
      interval: 30s
      path: /metrics

For secure metrics:

endpoints:
  - port: https-metrics
    scheme: https
    path: /metrics
    interval: 30s
    bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
    tlsConfig:
      insecureSkipVerify: true

Use a real CA bundle instead of insecureSkipVerify: true when you can. It is shown here because many internal operator scaffolds use generated serving certificates during early setup.

Apply the ServiceMonitor:

kubectl apply -f operator-metrics-servicemonitor.yaml

Sample output from the kind validation after the ServiceMonitor CRD was installed:

servicemonitor.monitoring.coreos.com/demoapp-operator created

Confirm Kubernetes accepted it:

kubectl get servicemonitor demoapp-operator -n demoapp-operator-system

Sample output:

NAME               AGE
demoapp-operator   15s

Three common ServiceMonitor mistakes:

• The ServiceMonitor selector does not match the Service labels.
• The endpoint port does not match the Service port name.
• The ServiceMonitor itself is not selected by the Prometheus serviceMonitorSelector.

If a Prometheus instance is installed, check whether it selects this ServiceMonitor:

kubectl get prometheus -A -o yaml | grep -A6 serviceMonitorSelector

Then query Prometheus:

up{namespace="demoapp-operator-system"}

A value of 1 means the target is being scraped. A missing series means discovery failed; a value of 0 means Prometheus discovered the target but cannot scrape it successfully.

Step 4: Secure the metrics endpoint

Production metrics can expose object names, API paths, error patterns, and runtime details. Treat the endpoint as operational data, not a public endpoint.

Common secure patterns:

RBAC example for scraping secure metrics:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: database-operator-metrics-reader
rules:
  - nonResourceURLs:
      - /metrics
    verbs:
      - get

Bind that role to the Prometheus ServiceAccount that performs the scrape. If your scaffold generated a metrics-reader role, reuse it rather than inventing another one.

Example binding for a Prometheus ServiceAccount named prometheus-k8s in the monitoring namespace:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: database-operator-metrics-reader
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: database-operator-metrics-reader
subjects:
  - kind: ServiceAccount
    name: prometheus-k8s
    namespace: monitoring

Before the binding, the kind test returned no:

kubectl auth can-i get /metrics --as=system:serviceaccount:monitoring:prometheus-k8s

no

After applying the binding, the same check returned yes:

yes

For a secure metrics endpoint, an unauthenticated request should fail. This is good:

kubectl port-forward -n demoapp-operator-system svc/demoapp-operator-controller-manager-metrics-service 18443:8443

curl -k -i https://127.0.0.1:18443/metrics

Sample response:

HTTP/1.1 401 Unauthorized
Content-Type: text/plain; charset=utf-8

Unauthorized

If this returns metrics without authentication in production, treat it as an exposure problem unless the endpoint is otherwise isolated by network policy and cluster boundaries.

Step 5: Add custom operator metrics

Framework metrics explain how the controller runtime behaves. Custom metrics explain what your operator is achieving.

Good custom metrics:

• number of managed resources by readiness state,
• failed resources by bounded reason,
• external API call latency,
• reconcile stage duration,
• backup, restore, upgrade, or rollout outcomes,
• rate of degraded CustomResources.

Bad custom metrics:

• labels with CR names,
• labels with UIDs,
• labels with pod names,
• labels with request IDs,
• one time series per managed object when object count is unbounded.

Example custom metrics:

package controllers

import (
    "time"

    "github.com/prometheus/client_golang/prometheus"
    crmetrics "sigs.k8s.io/controller-runtime/pkg/metrics"
)

var (
    databaseReady = prometheus.NewGaugeVec(
        prometheus.GaugeOpts{
            Name: "database_operator_ready_resources",
            Help: "Number of Database resources by namespace and readiness state.",
        },
        []string{"namespace", "ready"},
    )

    reconcileStageSeconds = prometheus.NewHistogramVec(
        prometheus.HistogramOpts{
            Name:    "database_operator_reconcile_stage_seconds",
            Help:    "Time spent in each reconcile stage.",
            Buckets: prometheus.ExponentialBuckets(0.01, 2, 10),
        },
        []string{"stage"},
    )
)

func init() {
    crmetrics.Registry.MustRegister(databaseReady, reconcileStageSeconds)
}

func observeStage(stage string, start time.Time) {
    reconcileStageSeconds.WithLabelValues(stage).Observe(time.Since(start).Seconds())
}

Use labels such as namespace, ready, reason, and stage only when the number of possible values is bounded and useful.

Step 6: Add Prometheus alerts

Start small. These five alerts cover most operator incidents without creating a wall of noise.

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: database-operator-alerts
  namespace: database-operator-system
  labels:
    release: prometheus
spec:
  groups:
    - name: database-operator
      rules:
        - alert: OperatorDown
          expr: up{job="database-operator"} == 0
          for: 5m
          labels:
            severity: critical
          annotations:
            summary: Database operator metrics target is down
            description: Prometheus cannot scrape the database operator metrics endpoint.

        - alert: OperatorReconcileErrors
          expr: sum(rate(controller_runtime_reconcile_errors_total{controller="database"}[5m])) > 0.1
          for: 10m
          labels:
            severity: warning
          annotations:
            summary: Database operator reconcile errors are increasing
            description: Reconcile errors are occurring at {{ $value }} errors per second.

        - alert: OperatorReconcileSlow
          expr: |
            histogram_quantile(0.99,
              sum by (le) (
                rate(controller_runtime_reconcile_time_seconds_bucket{controller="database"}[5m])
              )
            ) > 30
          for: 10m
          labels:
            severity: warning
          annotations:
            summary: Database operator p99 reconcile latency is high
            description: p99 reconcile latency is {{ $value }} seconds.

        - alert: OperatorWorkqueueBacklog
          expr: sum(workqueue_depth{name="database"}) > 100
          for: 15m
          labels:
            severity: warning
          annotations:
            summary: Database operator workqueue backlog is sustained
            description: Workqueue depth is {{ $value }} for more than 15 minutes.

        - alert: OperatorAPIThrottling
          expr: sum(rate(rest_client_requests_total{code="429"}[5m])) > 0.5
          for: 10m
          labels:
            severity: warning
          annotations:
            summary: Kubernetes API is throttling the operator
            description: Operator API requests are receiving HTTP 429 responses.

Apply the rule after the PrometheusRule CRD exists:

kubectl apply -f operator-prometheus-rules.yaml

Sample output from the kind validation:

prometheusrule.monitoring.coreos.com/demoapp-operator-alerts created

Confirm it exists:

kubectl get prometheusrule demoapp-operator-alerts -n demoapp-operator-system

Sample output:

NAME                      AGE
demoapp-operator-alerts   15s

Tune thresholds after you have baseline data. A busy cluster may need higher workqueue thresholds, while a small operator may page on much lower values.

Step 7: Build a starter Grafana dashboard

Build one operational dashboard first. It should fit on one screen.

Keep diagnostic panels in a second dashboard. The first dashboard should answer "is the operator healthy?" in less than a minute.

Troubleshooting missing metrics

Detect reconcile hot loops

A hot loop is a reconciler that keeps firing without useful state change. It often produces success results, so logs and error alerts may look clean.

Prometheus symptoms:

• rate(controller_runtime_reconcile_total[5m]) is far above normal.
• workqueue_depth or workqueue_unfinished_work_seconds stays elevated.
• rest_client_requests_total{code="429"} starts rising.
• Custom resource count is stable, but reconcile volume is not.

Common causes:

• missing GenerationChangedPredicate,
• updating .status on every reconcile even when nothing changed,
• returning requeue: true without a backoff or state transition,
• watching owned resources that are updated by the controller itself,
• broad watches that enqueue too many unrelated objects.

Fixes usually live in controller wiring and status handling. See watches, events, and predicates and status subresource and conditions.

Cardinality rules for operators

Prometheus cardinality is the easiest way to make an otherwise useful metrics setup expensive and unreliable.

Prefer bounded labels:

• controller
• namespace when tenant count is bounded
• kind
• result
• reason
• stage
• operation

For per-object information, use Kubernetes Events, logs, traces, or status conditions instead of Prometheus labels.

Checklist: production operator metrics

See also

• controller-runtime architecture
• The reconcile loop explained
• Watches, events, and predicates
• Status subresource and conditions
• Health and readiness probes
• Leader election explained
• OpenTelemetry tracing for operators
• Multi-tenancy patterns
• RBAC minimum permissions
• Kubernetes Operator tutorial - full course hub

Upstream references

• Kubebuilder metrics reference
• prometheus-operator ServiceMonitor API
• Prometheus client_golang
• Prometheus alerting rules
• kube-state-metrics

Bottom line: a production operator needs more than logs. Expose controller-runtime metrics, scrape them with a correctly selected ServiceMonitor, secure the endpoint, alert on the five core failure signals, and add only bounded custom metrics that explain whether your operator is doing useful work.
