AWS CodeDeploy and CodePipeline Tutorial: Deploy Applications Using CI/CD Pipeline

After integrating code repositories and automated builds in the previous tutorial AWS CodeCommit and CodeBuild Tutorial, the next step in a CI/CD workflow is automating application deployments using services like AWS CodeDeploy and CodePipeline., the next step in a CI/CD workflow is automating application deployments. AWS provides powerful services like AWS CodeDeploy and AWS CodePipeline that allow developers to deploy applications reliably across environments.

In this tutorial, we will focus on AWS CodeDeploy, which automates application deployments to Amazon EC2 instances and other compute platforms. You will learn how to configure deployment groups, install deployment agents, and implement different deployment strategies.

AWS CodeDeploy Overview

AWS CodeDeploy is a deployment automation service that simplifies the process of releasing application updates to cloud infrastructure. It enables developers to deploy code consistently across environments such as development, testing, and production without manually copying files or executing scripts on servers.

What is AWS CodeDeploy

AWS CodeDeploy is a fully managed deployment service that automates application deployments to Amazon EC2 instances, AWS Lambda functions, and Amazon ECS services. It helps organizations deliver application updates quickly while minimizing downtime during deployments.

CodeDeploy also integrates with other AWS DevOps tools such as CodeCommit, CodeBuild, and CodePipeline, making it a core component of CI/CD pipelines.

Key Features of CodeDeploy

AWS CodeDeploy offers several features that help streamline application deployments:

• Automated application deployments
• Support for EC2, Lambda, and ECS workloads
• Blue/Green and In-place deployment strategies
• Automatic rollback on deployment failures
• Integration with AWS DevOps services
• Monitoring and logging through CloudWatch

These capabilities allow teams to manage deployments safely and efficiently.

Deployment Types Supported by CodeDeploy

AWS CodeDeploy supports different deployment platforms:

Each platform uses deployment strategies tailored to the specific compute environment.

CodeDeploy vs Manual Deployment

Manual deployments often involve logging into servers and copying application files, which can introduce human errors and downtime. CodeDeploy automates this process and ensures deployments follow a consistent workflow.

Using CodeDeploy reduces operational overhead and improves deployment reliability.

When to Use AWS CodeDeploy

AWS CodeDeploy is ideal when organizations want to automate application releases and minimize downtime during deployments. It is particularly useful when applications are deployed across multiple EC2 instances or environments.

It also integrates seamlessly with CI/CD pipelines, enabling automated deployments whenever new code changes are pushed to repositories.

Deploy Applications to EC2 Using AWS CodeDeploy

In this scenario, we will deploy an application to EC2 instances using AWS CodeDeploy. This process involves creating a CodeDeploy application, defining a deployment group, configuring target instances, and executing a deployment.

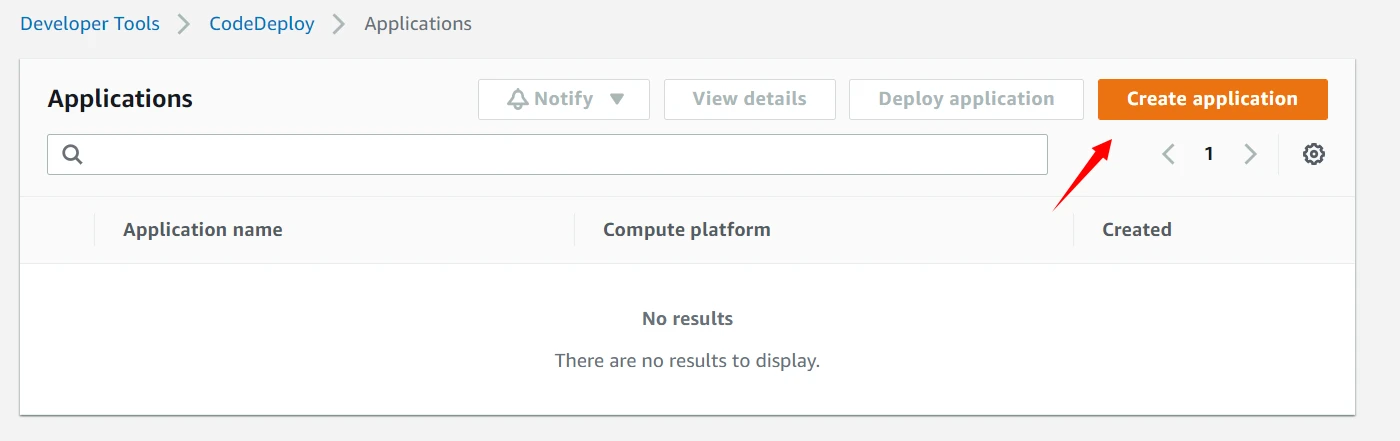

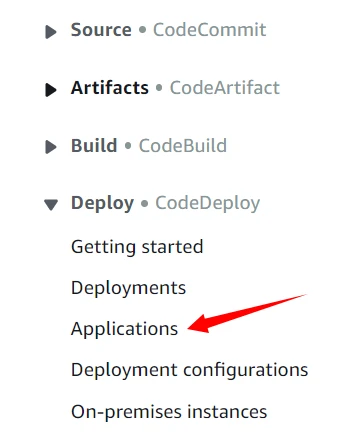

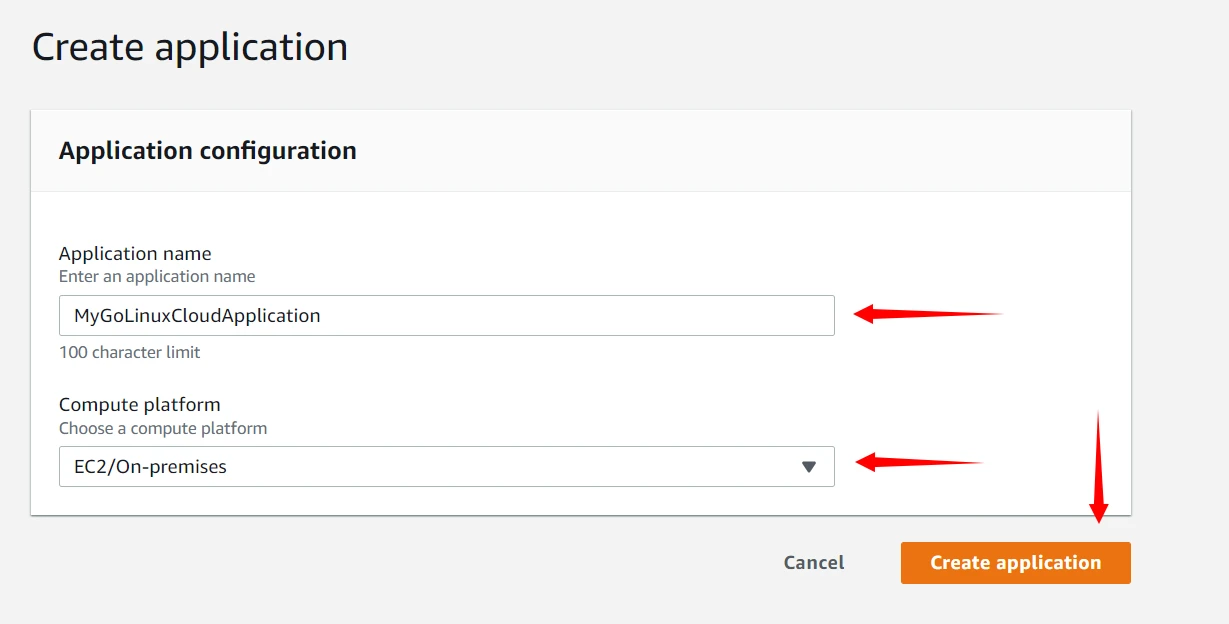

Create an Application in CodeDeploy

To start using CodeDeploy, you must first create an application container that holds deployment configurations.

Steps:

1. Open the AWS Management Console.
2. Navigate to AWS CodeDeploy.
3. Click Create application.
4. Provide an application name.
5. Select EC2/On-Premises as the compute platform.

This application will serve as the base configuration for deployments.

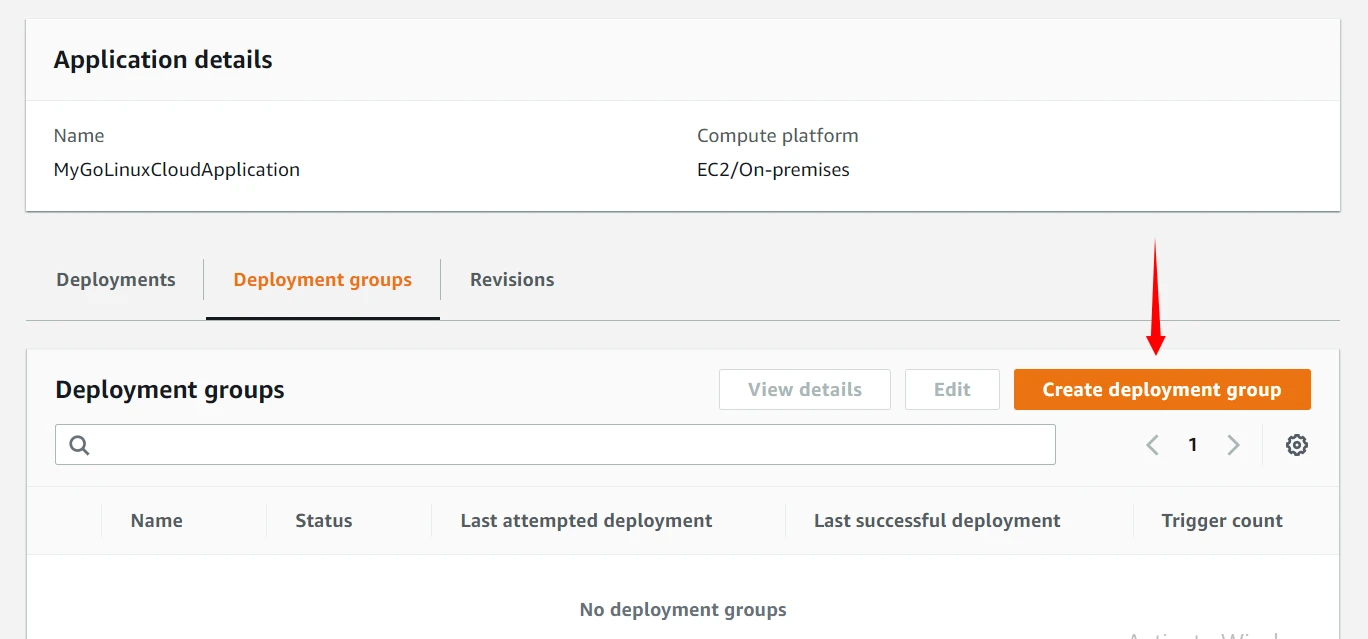

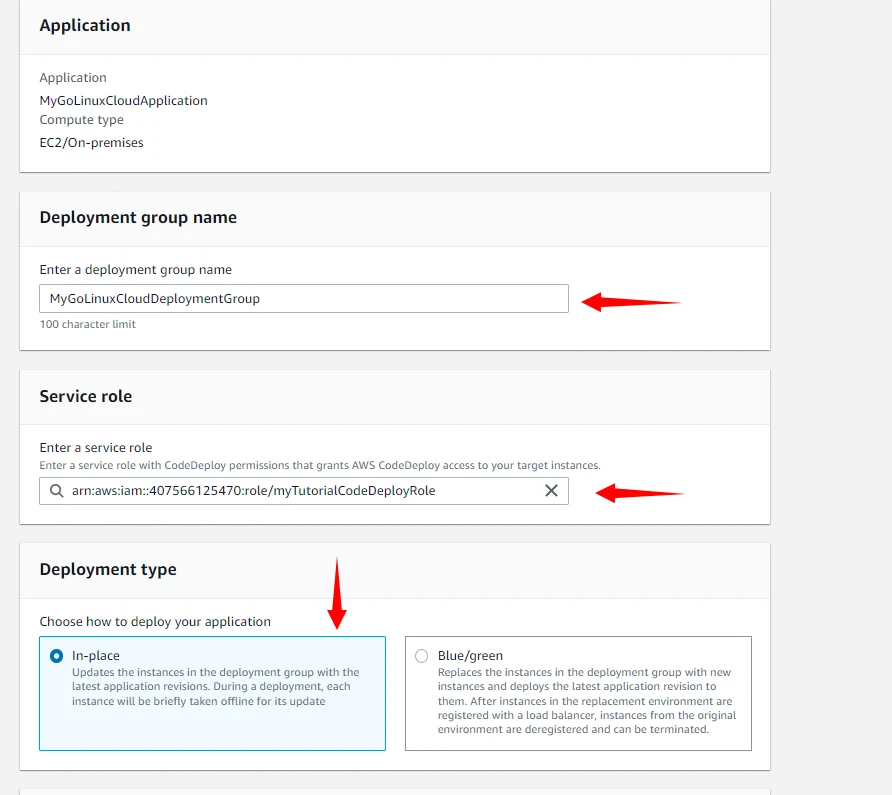

Create a Deployment Group

A deployment group defines which instances will receive application updates.

While creating a deployment group, you must specify:

• Deployment group name
• Service role with deployment permissions
• Target EC2 instances
• Deployment configuration

Deployment groups allow you to control how and where deployments occur.

Configure EC2 instances for CodeDeploy

Before deploying applications, EC2 instances must be configured to work with CodeDeploy.

Important requirements include:

• Installing the CodeDeploy agent

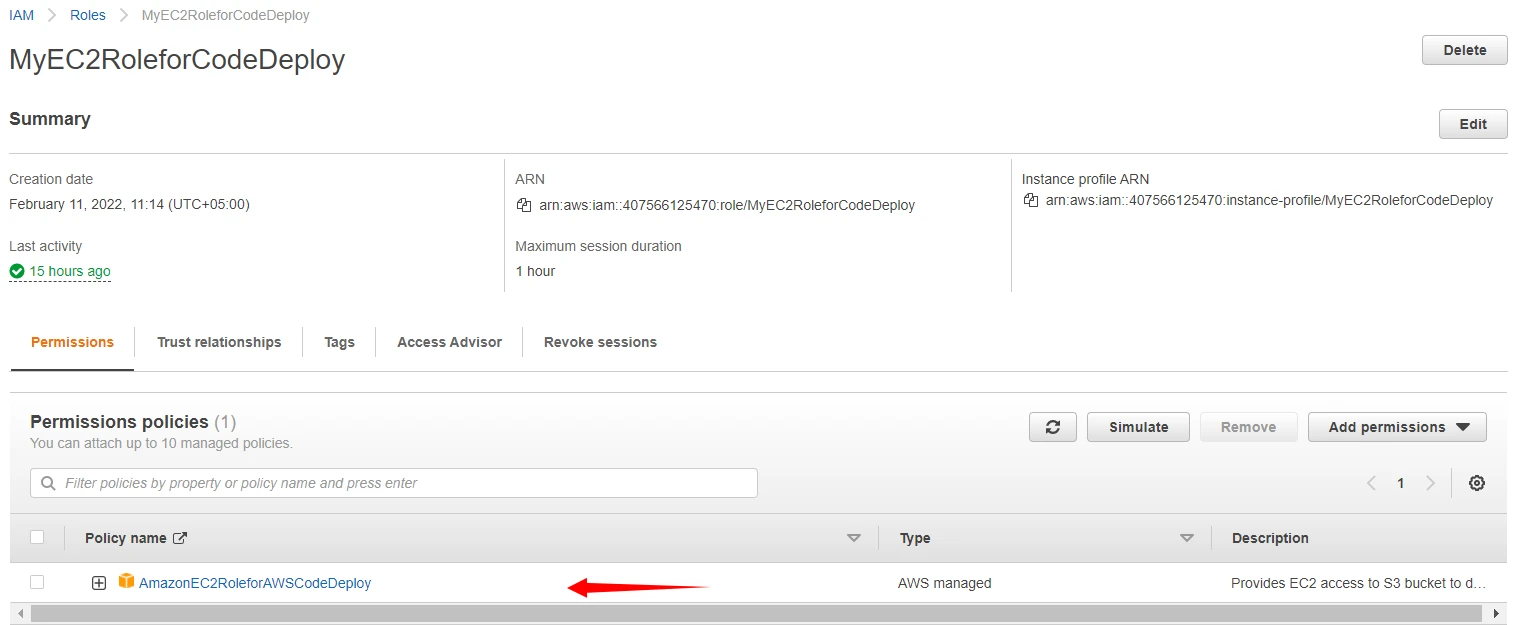

• Assigning IAM roles with required permissions

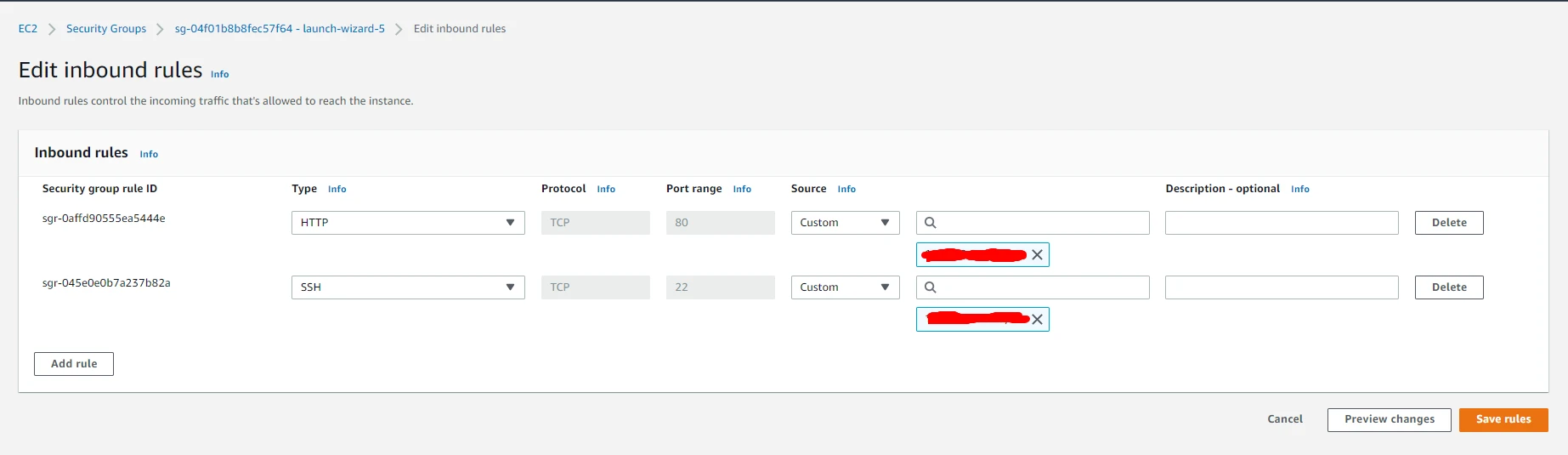

• Allowing network access for deployment services

These steps ensure that EC2 instances can receive and execute deployment instructions.

Install CodeDeploy agent on EC2

The CodeDeploy agent is responsible for receiving deployment instructions and executing them on EC2 instances.

Example installation commands:

sudo yum update -y
sudo yum install ruby -y
sudo wget https://aws-codedeploy-region.s3.amazonaws.com/latest/install
sudo chmod +x install
sudo ./install auto

Once installed, the agent communicates with CodeDeploy to perform deployments.

Deploy application revision to EC2 instances

After configuring the application and deployment group, you can initiate a deployment.

The deployment process typically involves:

1. Uploading application code
2. Running lifecycle hooks defined in appspec.yml
3. Copying files to target instances
4. Executing deployment scripts

Successful deployment updates the application across all targeted EC2 instances.

Configure Deployment Strategies in CodeDeploy

AWS CodeDeploy provides multiple deployment strategies to control how application updates are released across servers.

In-place deployment strategy explained

In-place deployments update the application on the same instances where it is currently running. Instances are updated sequentially or in batches depending on deployment configuration.

During this process:

1. The application is stopped
2. New files are installed
3. The application is restarted

This approach is simple but may cause temporary downtime.

Blue/Green deployment in CodeDeploy

Blue/Green deployment reduces downtime by creating a new environment (green) while the current environment (blue) continues running.

Deployment steps include:

1. Launch new instances with the updated application
2. Test the new environment
3. Redirect traffic from old instances to new instances

This method provides safer deployments and quick rollback options.

Advantages of Blue/Green deployments

Blue/Green deployments provide several benefits:

• Reduced downtime
• Faster rollback in case of errors
• Ability to test new versions before switching traffic
• Improved reliability during production releases

These advantages make Blue/Green deployments a preferred strategy for production systems.

Configure traffic shifting during deployment

Traffic shifting allows gradual redirection of user traffic to the new deployment environment.

CodeDeploy supports multiple traffic shifting strategies:

• All-at-once
• Linear deployment
• Canary deployment

Gradual traffic shifting reduces risk by monitoring application performance during rollout.

Create and Manage Deployment Groups

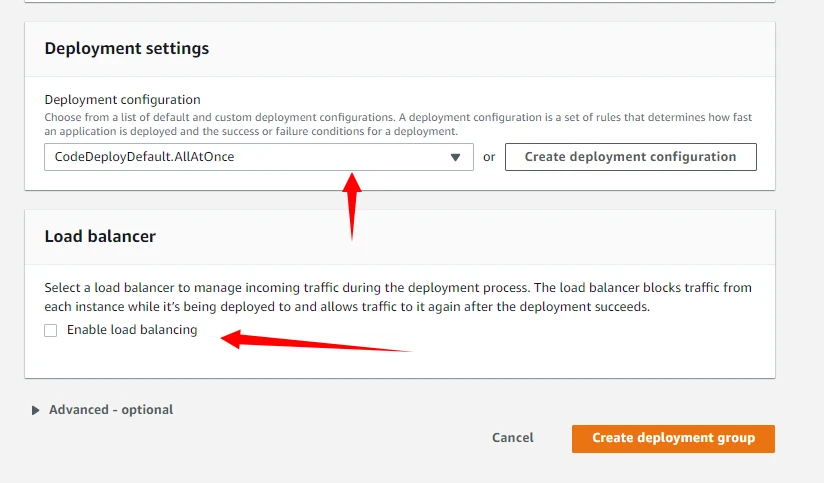

Configure deployment group settings

Deployment groups define key configuration settings including:

• Deployment type
• Target instances
• Load balancer integration
• Deployment strategy

These settings control the behavior of application deployments.

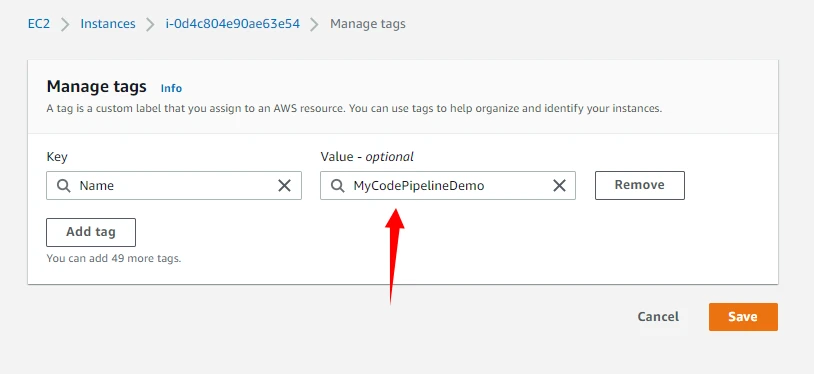

Use EC2 instance tags for deployment targets

Instead of manually selecting instances, CodeDeploy allows targeting instances using EC2 tags.

Example:

Key: Environment
Value: Production

All instances with matching tags will automatically receive deployments.

Configure load balancer integration

CodeDeploy can integrate with Elastic Load Balancers to manage traffic during deployments.

During deployment:

• Instances are temporarily removed from the load balancer
• Application updates are applied
• Instances are re-registered with the load balancer

This ensures minimal service disruption.

Configure automatic rollback options

Automatic rollback allows deployments to revert to the previous version if errors occur.

Rollback can be triggered by:

• Deployment failures
• CloudWatch alarms
• Manual rollback actions

This feature helps maintain application stability during deployment failures.

Prepare Application Deployment Package

Before deploying applications using AWS CodeDeploy, you must prepare a deployment package that contains your application files and configuration instructions. This package typically includes application source code along with an appspec.yml file that tells CodeDeploy how to deploy the application on target servers.

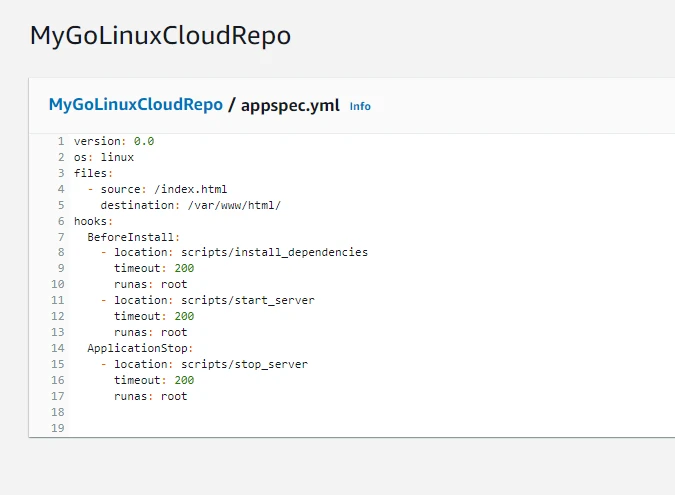

Understanding appspec.yml structure

The appspec.yml file is the configuration file used by AWS CodeDeploy to define deployment instructions. It specifies which files should be copied to the server and which scripts should be executed during different stages of deployment.

A typical appspec.yml file includes:

• Version of the appspec format
• Files to copy during deployment
• Lifecycle hooks
• Script execution instructions

Example structure:

version: 0.0
os: linux

files:
  - source: /
    destination: /var/www/html

hooks:
  BeforeInstall:
    - location: scripts/install_dependencies.sh
      timeout: 300

  AfterInstall:
    - location: scripts/start_application.sh
      timeout: 300

This configuration allows CodeDeploy to automate application installation and configuration.

Define lifecycle hooks in appspec.yml

Lifecycle hooks allow developers to run scripts at different stages of the deployment process. These hooks help automate tasks such as installing dependencies, stopping services, or starting applications.

Common lifecycle events include:

Using lifecycle hooks ensures deployments follow a consistent automated workflow.

Configure BeforeInstall and AfterInstall hooks

The BeforeInstall hook runs before application files are copied to the server. It is typically used to prepare the system environment.

Example tasks include:

• Installing system dependencies
• Stopping running services
• Cleaning previous deployments

The AfterInstall hook runs after files are copied. This stage is often used to configure application settings and start services.

Example tasks include:

• Updating configuration files
• Setting permissions
• Restarting application services

Run custom scripts during deployment

CodeDeploy allows developers to execute custom scripts during deployment. These scripts can automate complex setup tasks required for application installation.

Examples of custom scripts include:

• Installing required software packages
• Configuring application environment variables
• Running database migrations
• Restarting application services

By combining lifecycle hooks and custom scripts, CodeDeploy can fully automate application deployment workflows.

Automate CI/CD Pipeline Using AWS CodePipeline

After preparing application deployments with CodeDeploy, the next step is automating the entire CI/CD workflow. AWS CodePipeline orchestrates the process of retrieving source code, building applications, and deploying them automatically.

What is AWS CodePipeline

AWS CodePipeline is a continuous delivery service that automates software release workflows. It connects different AWS services to create a complete CI/CD pipeline.

When developers push code to a repository, CodePipeline automatically triggers the pipeline and runs the configured stages such as build and deployment.

Components of CodePipeline

A CodePipeline workflow consists of several components that define how the pipeline operates.

These components allow developers to define automated workflows for building and deploying applications.

Pipeline stages explained

A typical CI/CD pipeline contains multiple stages such as:

• Source stage – Retrieves code from repositories
• Build stage – Compiles and tests application code
• Deploy stage – Deploys the application to target infrastructure

Each stage can contain one or more actions that perform specific tasks.

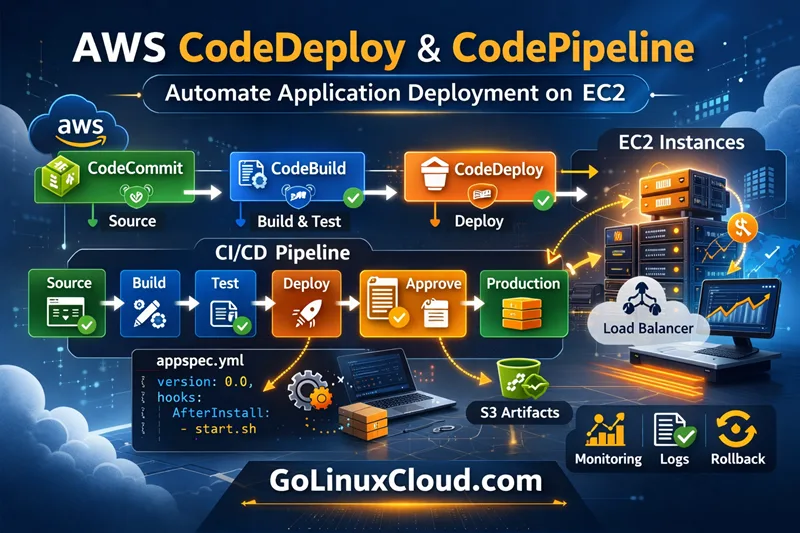

Integrating CodeCommit, CodeBuild and CodeDeploy

AWS CodePipeline integrates easily with other AWS DevOps services.

Typical workflow:

1. Developer pushes code to AWS CodeCommit
2. CodePipeline triggers AWS CodeBuild to compile and test code
3. CodeDeploy automatically deploys the application to EC2 instances

This integration creates a fully automated CI/CD pipeline.

Create a CI/CD Pipeline in AWS CodePipeline

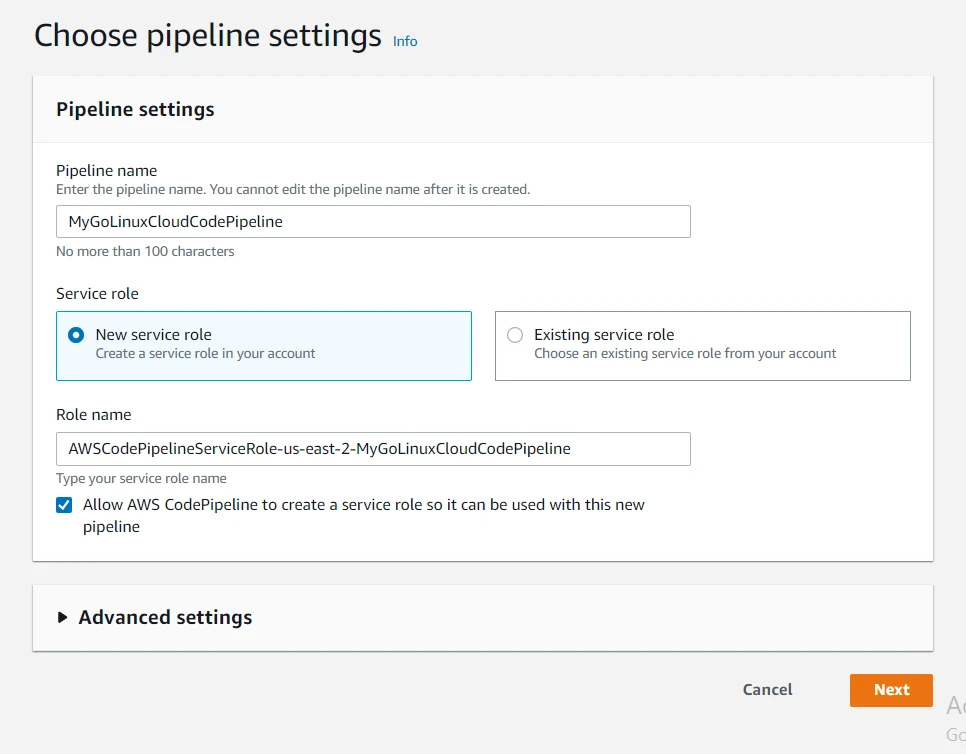

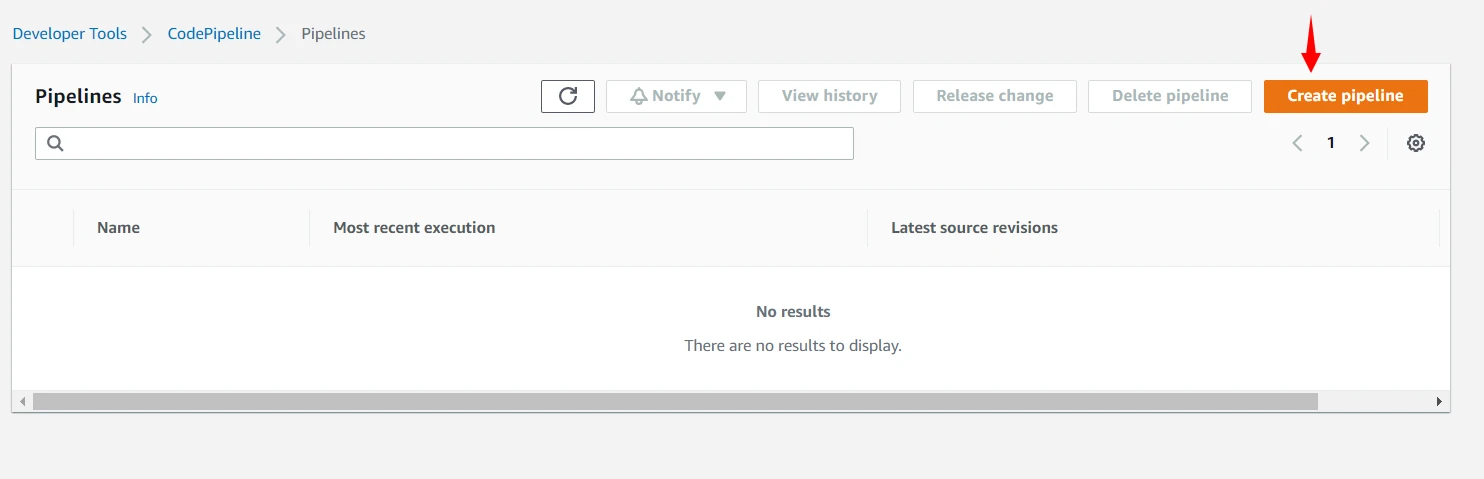

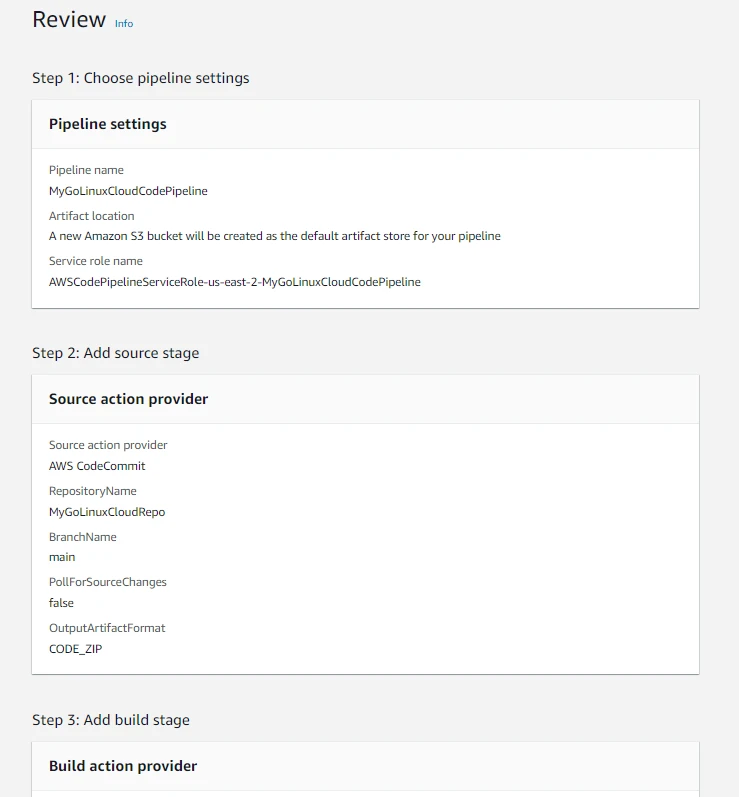

Create a new pipeline in AWS Console

Steps to create a pipeline:

1. Open AWS CodePipeline from the AWS Management Console
2. Click Create pipeline
3. Enter a pipeline name
4. Select or create a service role

The service role allows CodePipeline to interact with other AWS services.

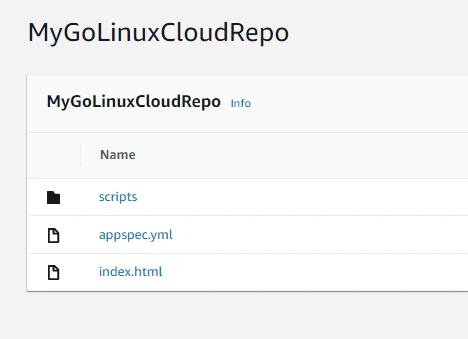

Configure source stage using CodeCommit

The source stage retrieves application code from a repository.

Configuration steps:

• Select AWS CodeCommit as the source provider
• Choose the repository
• Select the branch to monitor for changes

Whenever new code is pushed to the branch, the pipeline is triggered.

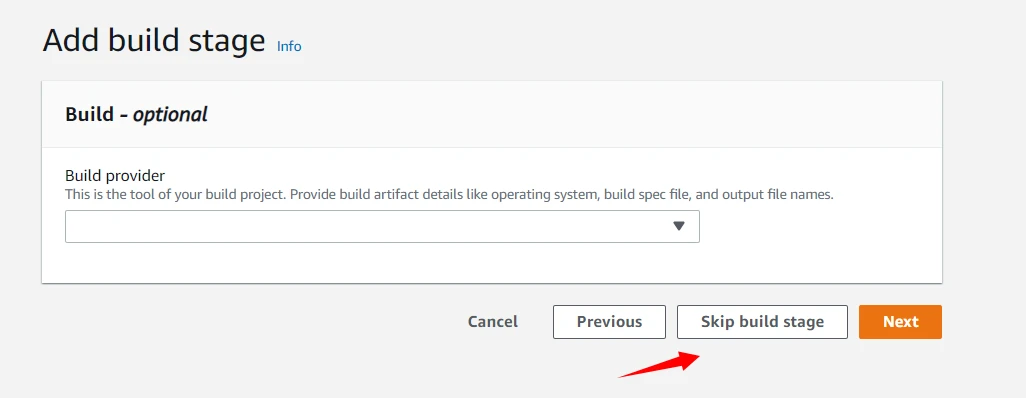

Configure build stage using CodeBuild

The build stage compiles and validates application code.

Steps:

1. Select AWS CodeBuild as the build provider
2. Choose an existing build project
3. Configure build artifacts

CodeBuild executes commands defined in the buildspec.yml file.

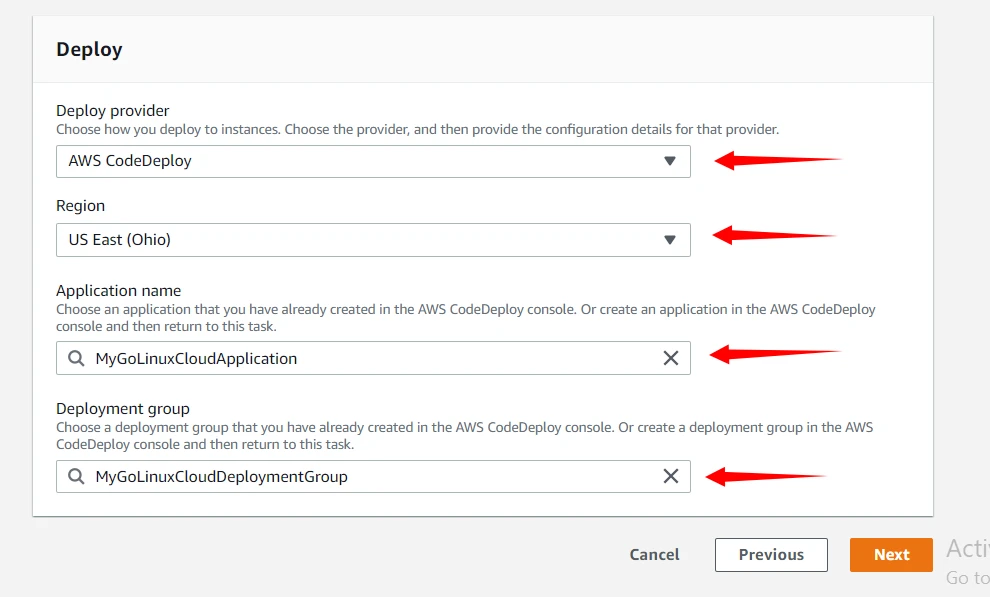

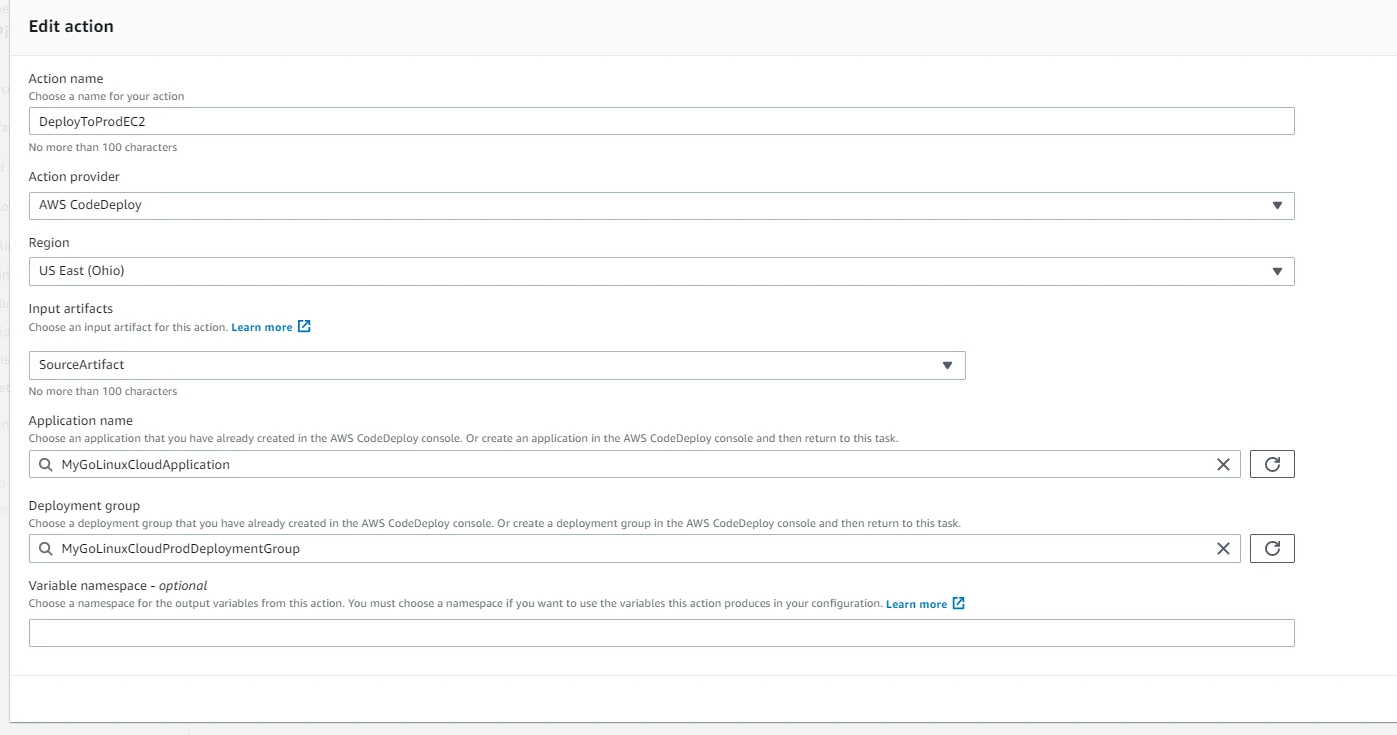

Configure deployment stage using CodeDeploy

The deployment stage automatically releases the built application to servers.

Configuration includes:

• Selecting CodeDeploy as the deployment provider
• Choosing the CodeDeploy application
• Selecting the deployment group

Once configured, CodeDeploy will deploy the application to EC2 instances.

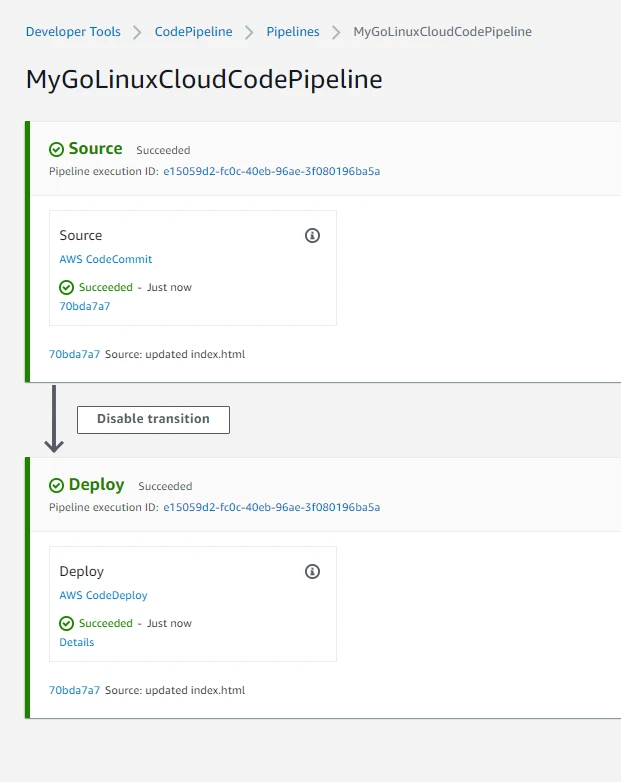

Execute pipeline after code commit

After the pipeline is configured, pushing code to the repository automatically triggers pipeline execution.

Pipeline workflow:

1. CodeCommit receives new code
2. CodePipeline starts execution
3. CodeBuild compiles and validates code
4. CodeDeploy deploys application to EC2

This completes a fully automated CI/CD workflow.

Add Manual Approval Stage in CI/CD Pipeline

In production environments, it is often necessary to manually approve deployments before releasing them to users. CodePipeline supports manual approval stages that allow teams to review changes before deployment.

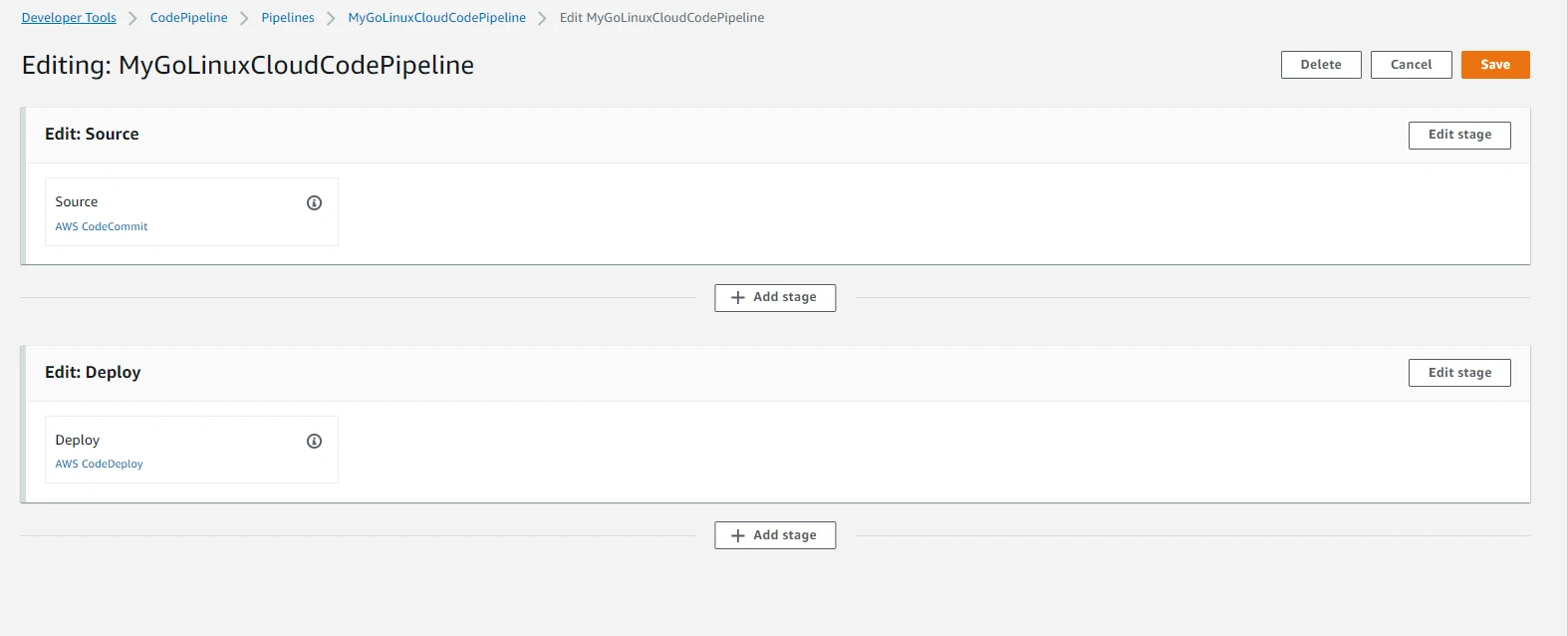

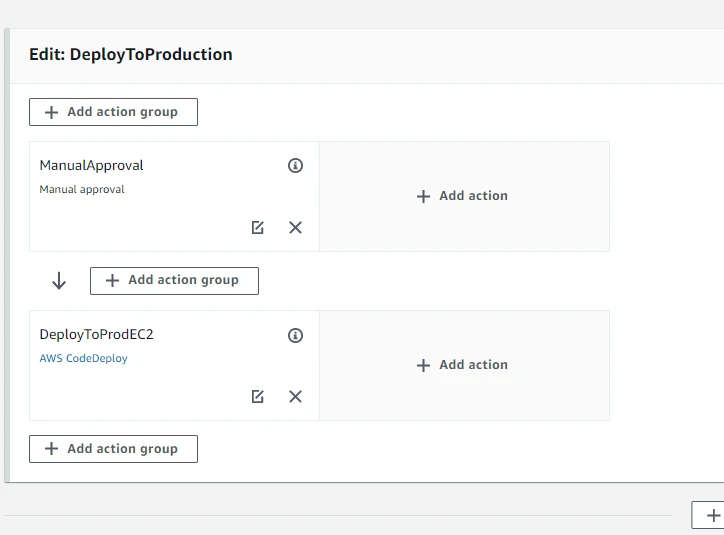

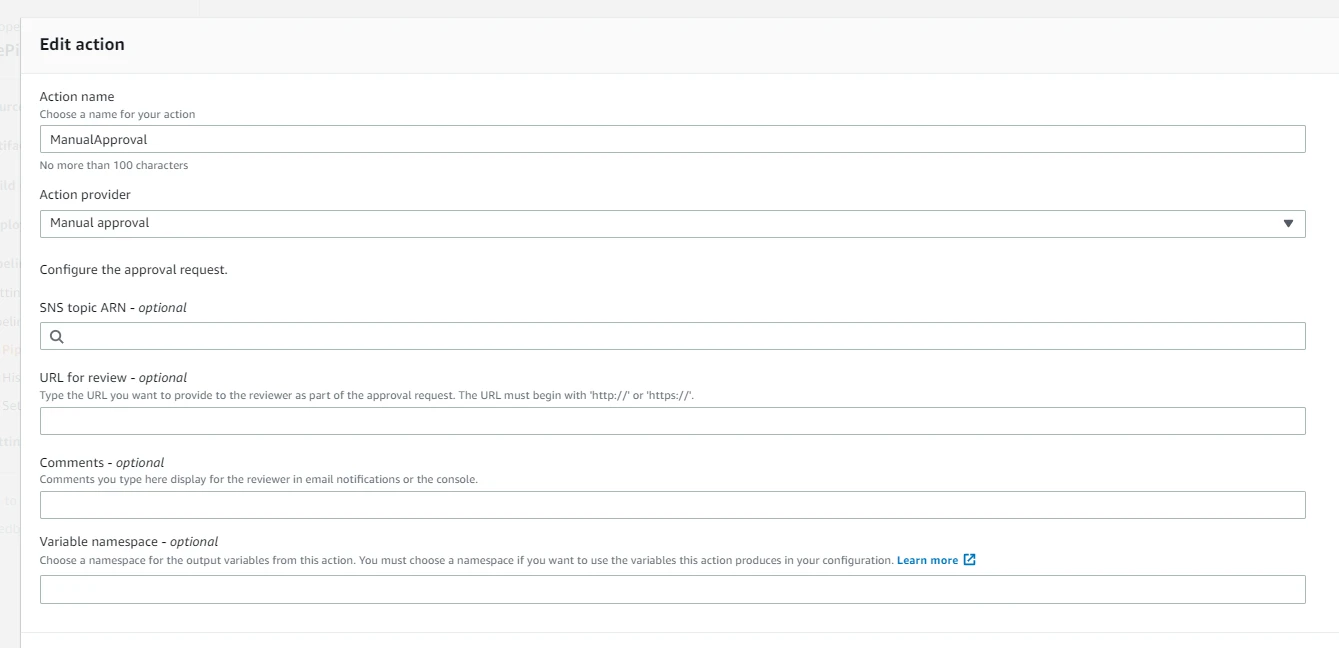

Configure approval action in CodePipeline

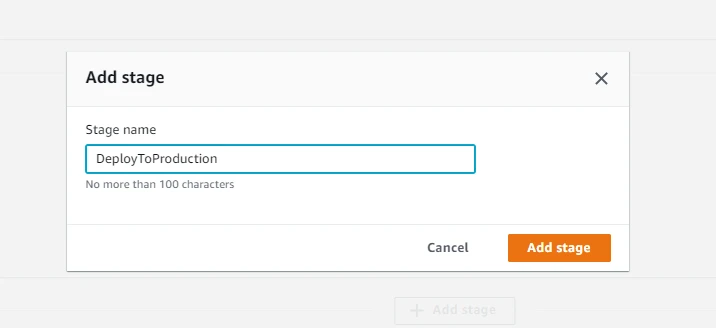

To add an approval stage:

1. Edit the existing pipeline
2. Add a new stage before production deployment
3. Select Manual approval as the action type

This stage pauses pipeline execution until approval is granted.

When to use manual approvals

Manual approvals are commonly used when deploying applications to production environments where additional verification is required.

Examples include:

• Security reviews
• Quality assurance validation
• Business approval before release

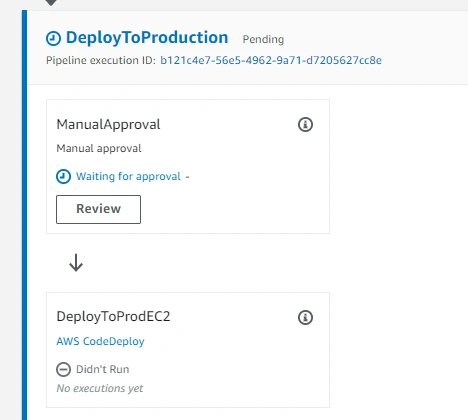

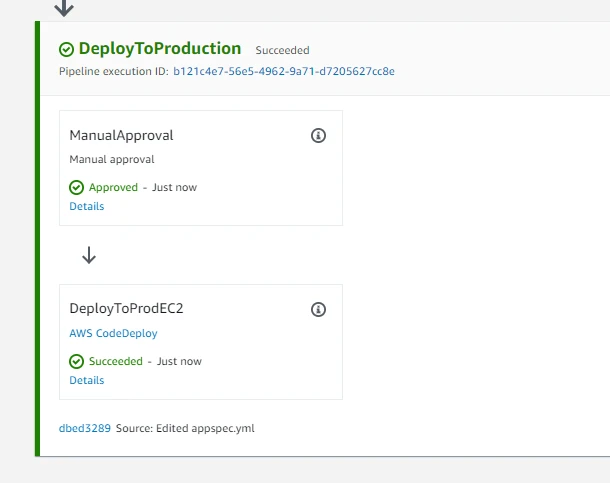

Approve or reject pipeline execution

When a pipeline reaches the approval stage, authorized users can either approve or reject the deployment.

If approved, the pipeline continues execution.
If rejected, the pipeline stops and deployment is canceled.

Implement production deployment approval workflow

Organizations often implement a workflow where:

1. Code is deployed automatically to staging
2. Tests and validation are performed
3. A manual approval is required before production deployment

This approach ensures better control over production releases.

Deploy Applications Automatically to EC2

Configure deployment automation in pipeline

Deployment automation is achieved by connecting CodePipeline with CodeDeploy.

Whenever the build stage completes successfully, CodeDeploy automatically starts deployment to target instances.

Trigger deployments after successful build

The pipeline ensures deployments only occur after the build stage completes successfully.

This helps prevent deploying broken or untested code to production environments.

Monitor deployment status

You can monitor deployment progress through:

• AWS CodeDeploy dashboard
• AWS CodePipeline execution history
• Amazon CloudWatch logs

These tools provide visibility into deployment activities.

Validate deployment on EC2 instance

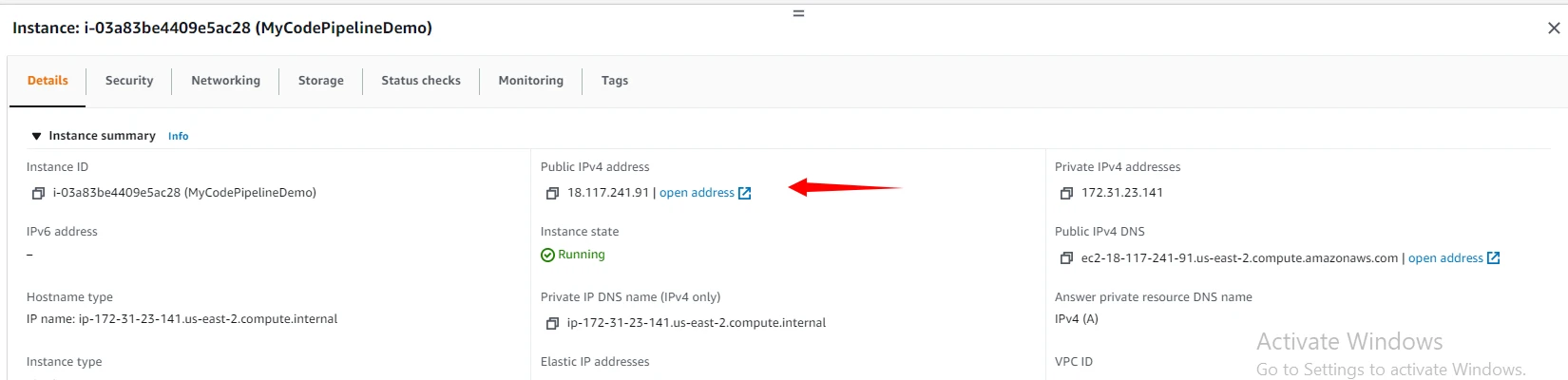

After deployment completes, you can validate the application by connecting to the EC2 instance and verifying that the application is running correctly.

Typical validation steps include:

• Checking application services
• Verifying logs

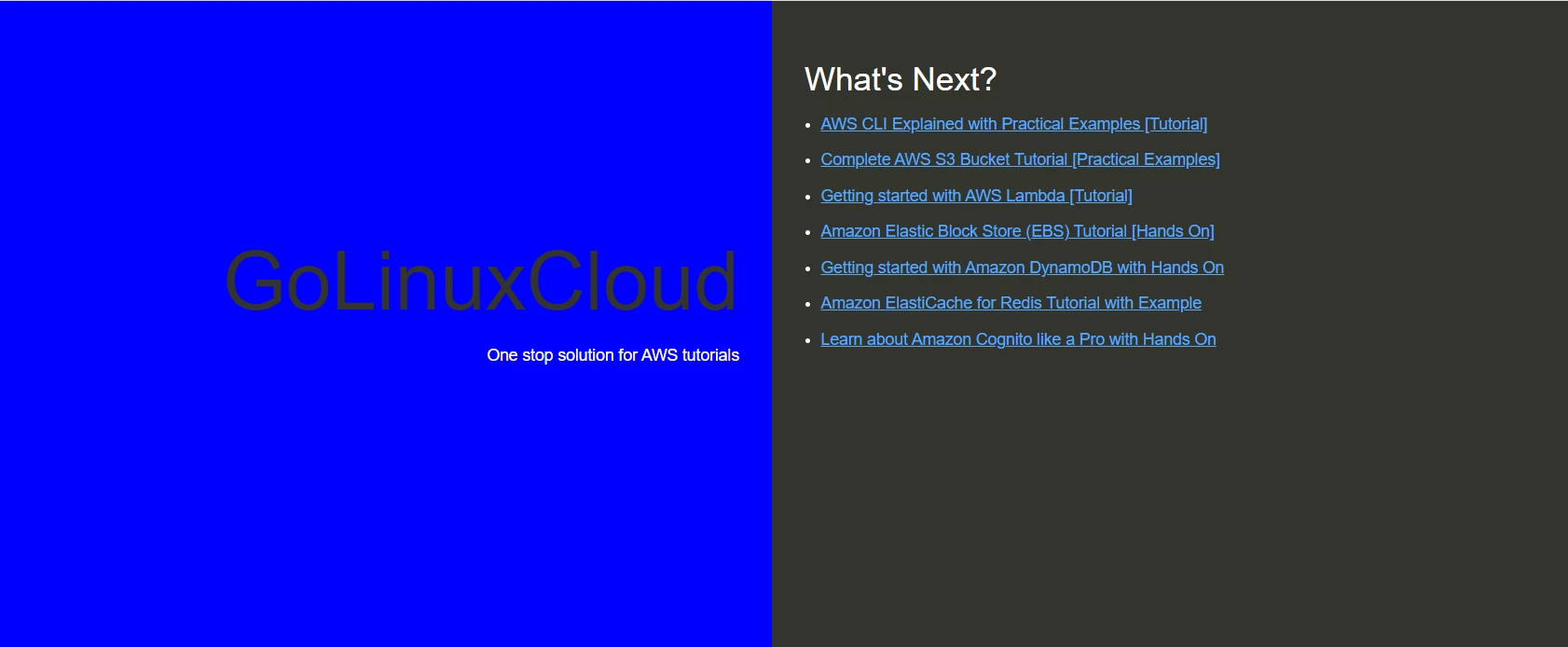

• Accessing the application through the browser or API endpoint

Monitor and Troubleshoot CodeDeploy Deployments

After deploying applications using AWS CodeDeploy, it is important to monitor deployment progress and troubleshoot issues if deployments fail. AWS provides several tools and logs that help diagnose problems during the deployment lifecycle.

View deployment history in CodeDeploy

AWS CodeDeploy maintains a detailed history of all deployments. This history allows you to track when deployments were executed, which instances were targeted, and whether the deployment succeeded or failed.

Steps to view deployment history:

1. Open the AWS Management Console
2. Navigate to AWS CodeDeploy
3. Select the application
4. Click on Deployments

You will see a list of deployments along with their status, deployment IDs, and timestamps.

Analyze deployment logs

Deployment logs provide detailed insights into what happened during each deployment step. These logs help identify errors or misconfigurations.

Logs can be accessed from:

• CodeDeploy console
• EC2 instance log files
• Amazon CloudWatch logs

Common log locations on EC2 instances include:

/opt/codedeploy-agent/deployment-root/deployment-logs/codedeploy-agent-deployments.log

Reviewing these logs helps determine whether deployment scripts executed successfully.

Troubleshoot failed deployments

Deployments may fail for several reasons such as configuration errors, permission issues, or script failures.

Common causes of deployment failures include:

• Incorrect file paths in appspec.yml
• Missing application files
• Permission issues on target directories
• Errors in lifecycle scripts

To troubleshoot failures:

1. Review deployment logs
2. Verify appspec.yml configuration
3. Check EC2 instance connectivity
4. Confirm IAM role permissions

Identifying these issues early helps maintain stable deployments.

Debug lifecycle hook errors

Lifecycle hooks execute scripts during deployment phases such as BeforeInstall, AfterInstall, and ApplicationStart.

If these scripts fail, the deployment will fail as well.

To debug lifecycle hook errors:

• Verify script permissions
• Ensure scripts are executable
• Review script output logs
• Validate command syntax

Proper debugging ensures that deployment scripts execute correctly during application updates.

Monitor CodePipeline Execution

Monitoring CI/CD pipelines helps ensure that application updates move smoothly from source code to production deployment. AWS CodePipeline provides tools to track pipeline executions and identify failures.

View pipeline execution history

AWS CodePipeline maintains execution history for each pipeline run. This history shows the status of each stage and action within the pipeline.

Steps to view pipeline execution history:

1. Open AWS CodePipeline
2. Select your pipeline
3. View the execution timeline

The timeline shows which stage succeeded or failed and how long each stage took to complete.

Analyze pipeline stage failures

If a pipeline stage fails, CodePipeline highlights the failing stage and provides detailed error information.

Common causes of stage failures include:

• Source repository connection issues
• Build failures in CodeBuild
• Deployment failures in CodeDeploy
• Incorrect pipeline configuration

Reviewing stage logs helps identify the root cause of pipeline failures.

Debug pipeline integration issues

CI/CD pipelines often integrate multiple services such as CodeCommit, CodeBuild, and CodeDeploy. Integration problems may occur if permissions or configurations are incorrect.

To debug integration issues:

• Verify IAM role permissions
• Confirm service integrations are configured correctly
• Check artifact storage configuration
• Ensure pipeline stages reference the correct resources

Resolving integration issues ensures smooth pipeline execution.

Monitor pipeline using CloudWatch

Amazon CloudWatch provides monitoring and logging capabilities for CI/CD pipelines.

Using CloudWatch you can:

• Track pipeline execution metrics
• Monitor deployment success and failure rates
• Configure alarms for pipeline failures
• Analyze logs generated by pipeline stages

CloudWatch monitoring helps maintain reliable and observable CI/CD workflows.

Summary

In this tutorial, we explored how to automate application deployments using AWS CodeDeploy and AWS CodePipeline. We learned how to configure deployment groups, prepare deployment packages using appspec.yml, and deploy applications to EC2 instances automatically.

We also implemented a CI/CD pipeline that integrates CodeCommit, CodeBuild, and CodeDeploy, enabling automated build and deployment workflows. Finally, we discussed how to monitor deployments and troubleshoot pipeline failures using deployment logs and CloudWatch monitoring tools.

Official Documentation

For more information, refer to the official AWS documentation:

• AWS CodeDeploy Documentation
• AWS CodePipeline Documentation
• AWS DevOps CI/CD Overview
