AWS Auto Scaling Tutorial: Auto Scaling Groups Explained with Practical Examples

How AWS Auto Scaling Works

AWS Auto Scaling automatically adjusts the number of EC2 instances running in your infrastructure based on application demand. Instead of manually launching or terminating servers, Auto Scaling dynamically increases or decreases compute capacity depending on workload.

The service continuously monitors metrics such as CPU utilization, request count, or network traffic using Amazon CloudWatch. When these metrics cross predefined thresholds, scaling policies trigger actions to launch new instances or terminate existing ones.

This approach ensures that your application always has the required compute resources while avoiding unnecessary infrastructure costs during low traffic periods.

Components of AWS Auto Scaling

AWS Auto Scaling consists of several components that work together to manage scaling behavior.

Auto Scaling Group (ASG)
An Auto Scaling Group contains a collection of EC2 instances treated as a logical unit for scaling and management. It defines:

• Minimum number of instances
• Maximum number of instances
• Desired number of instances

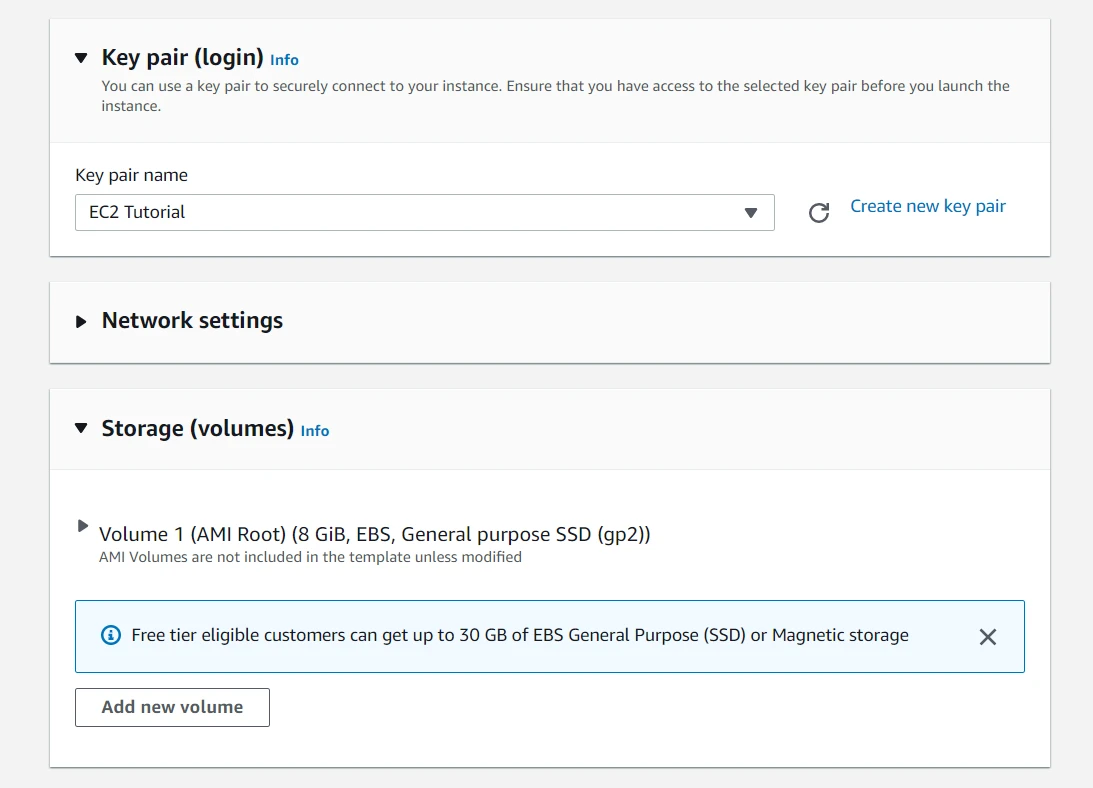

Launch Template or Launch Configuration
This defines how new EC2 instances should be launched. It includes parameters such as:

• Amazon Machine Image (AMI)
• Instance type
• Security groups
• Storage configuration

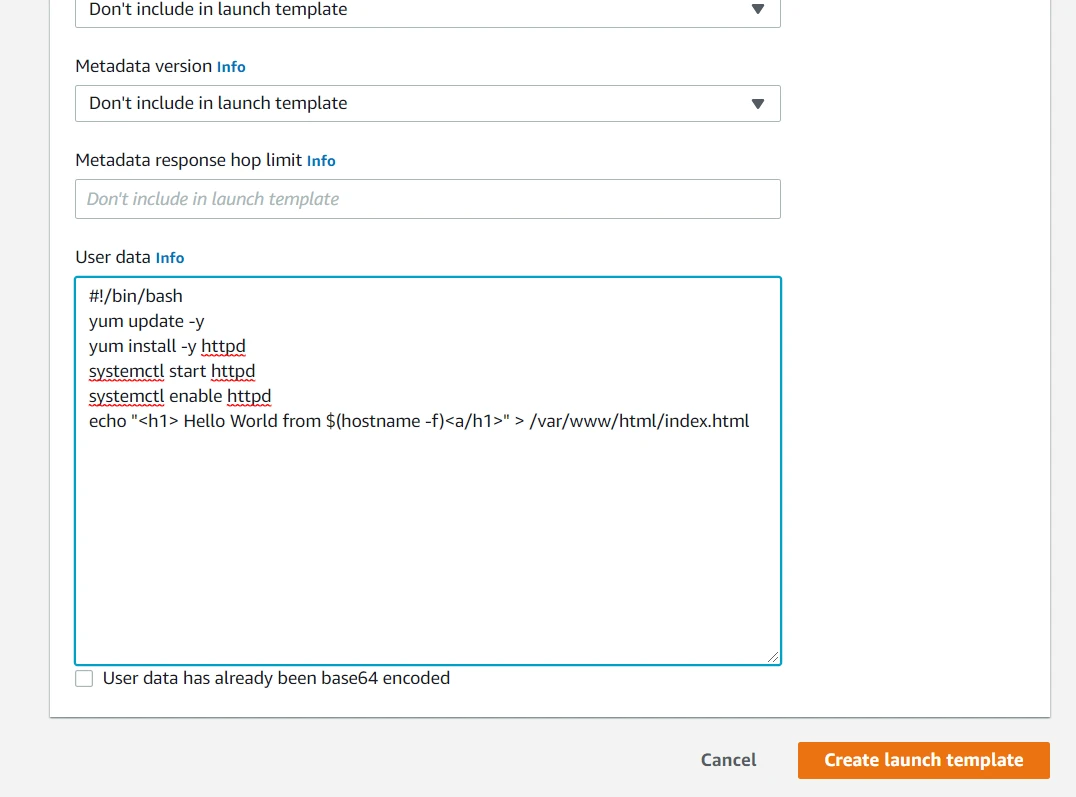

• User data scripts

Scaling Policies
Scaling policies define when the Auto Scaling Group should scale up or scale down. These policies are triggered based on metrics collected from CloudWatch.

CloudWatch Metrics
CloudWatch provides real-time monitoring data such as CPU utilization, network usage, or request count. These metrics are used to trigger scaling actions.

Relationship Between EC2, Auto Scaling Groups, and Load Balancers

In most production architectures, Auto Scaling Groups work together with Elastic Load Balancers (ELB) to distribute traffic efficiently.

The workflow typically works as follows:

1. Users send requests to an Application Load Balancer (ALB).
2. The load balancer distributes incoming traffic across multiple EC2 instances.
3. The EC2 instances are part of an Auto Scaling Group.
4. If traffic increases and instance CPU usage rises, Auto Scaling launches additional EC2 instances.
5. The load balancer automatically starts routing traffic to the new instances.

This integration ensures that your application can handle sudden traffic spikes without manual intervention.

Role of CloudWatch Metrics in Auto Scaling

Amazon CloudWatch plays a critical role in Auto Scaling because it provides the metrics used to trigger scaling actions.

Common metrics used for scaling include:

• CPU utilization
• Network in/out traffic
• Request count per target
• Memory utilization (custom metric)

For example, you can configure a scaling policy such as:

• If average CPU utilization exceeds 40%, launch a new EC2 instance.
• If CPU utilization drops below 20%, terminate an instance.

CloudWatch continuously monitors these metrics and triggers scaling events automatically.

Scaling Workflow Explained

The Auto Scaling workflow typically follows these steps:

1. Application traffic increases.
2. CloudWatch detects increased CPU utilization or request load.
3. The scaling policy is triggered.
4. Auto Scaling launches new EC2 instances using the launch template.
5. The new instances are automatically registered with the load balancer.
6. Traffic is distributed across all instances.

When traffic decreases:

1. CloudWatch detects lower resource utilization.
2. The scaling policy triggers scale-in action.
3. Auto Scaling terminates excess instances.
4. Infrastructure cost is reduced.

This automated workflow allows AWS environments to remain highly efficient and scalable.

AWS Auto Scaling Architecture

A typical AWS Auto Scaling architecture ensures that applications remain highly available and scalable by distributing traffic across multiple EC2 instances.

In this architecture, traffic first reaches a load balancer, which distributes requests to EC2 instances running inside an Auto Scaling Group. These instances are deployed across multiple availability zones to ensure high availability.

When workload increases, Auto Scaling automatically launches additional EC2 instances. When workload decreases, unnecessary instances are terminated.

This dynamic infrastructure model allows applications to handle varying traffic patterns without manual intervention.

Typical Auto Scaling Architecture Diagram

A common Auto Scaling architecture consists of the following components:

• Users or clients sending application requests
• Application Load Balancer (ALB) receiving and distributing traffic
• Auto Scaling Group managing EC2 instance capacity
• EC2 instances running the application
• CloudWatch monitoring metrics
• Scaling policies triggering instance creation or termination

The architecture ensures that new instances are automatically added during traffic spikes and removed during low demand.

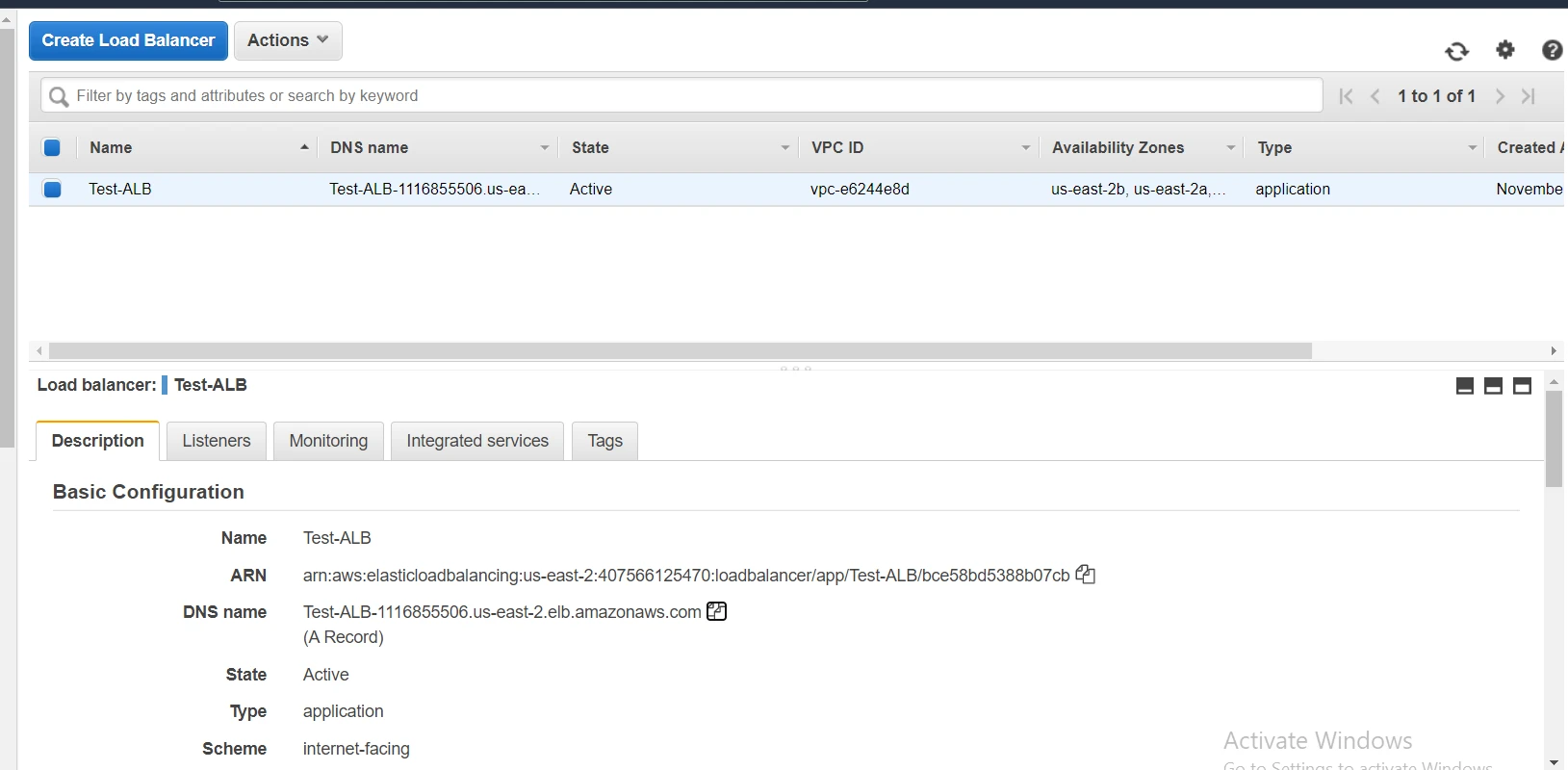

Auto Scaling with Application Load Balancer

Application Load Balancer (ALB) works closely with Auto Scaling Groups to distribute traffic efficiently across instances.

Key benefits include:

• Automatic traffic distribution
• Improved application availability
• Health checks for EC2 instances
• Seamless integration with Auto Scaling

When a new EC2 instance is launched by Auto Scaling, it is automatically registered with the load balancer's target group. If an instance becomes unhealthy, the load balancer stops routing traffic to it and Auto Scaling replaces the failed instance.

High Availability Across Multiple Availability Zones

AWS Auto Scaling supports deployment across multiple Availability Zones (AZs) within a region.

This improves reliability because:

• If one availability zone fails, instances in other zones continue serving traffic.
• Load balancers distribute traffic across zones automatically.
• Auto Scaling launches replacement instances in healthy zones if failures occur.

Using multiple availability zones is considered a best practice for production workloads.

How Auto Scaling Improves Fault Tolerance

Auto Scaling significantly improves application fault tolerance by automatically replacing unhealthy instances.

Health checks can be performed using:

• EC2 status checks
• Elastic Load Balancer health checks

If an instance fails a health check:

1. Auto Scaling marks the instance as unhealthy.
2. The unhealthy instance is terminated.
3. A new instance is launched automatically.

This self-healing mechanism ensures that the application remains available even when infrastructure failures occur.

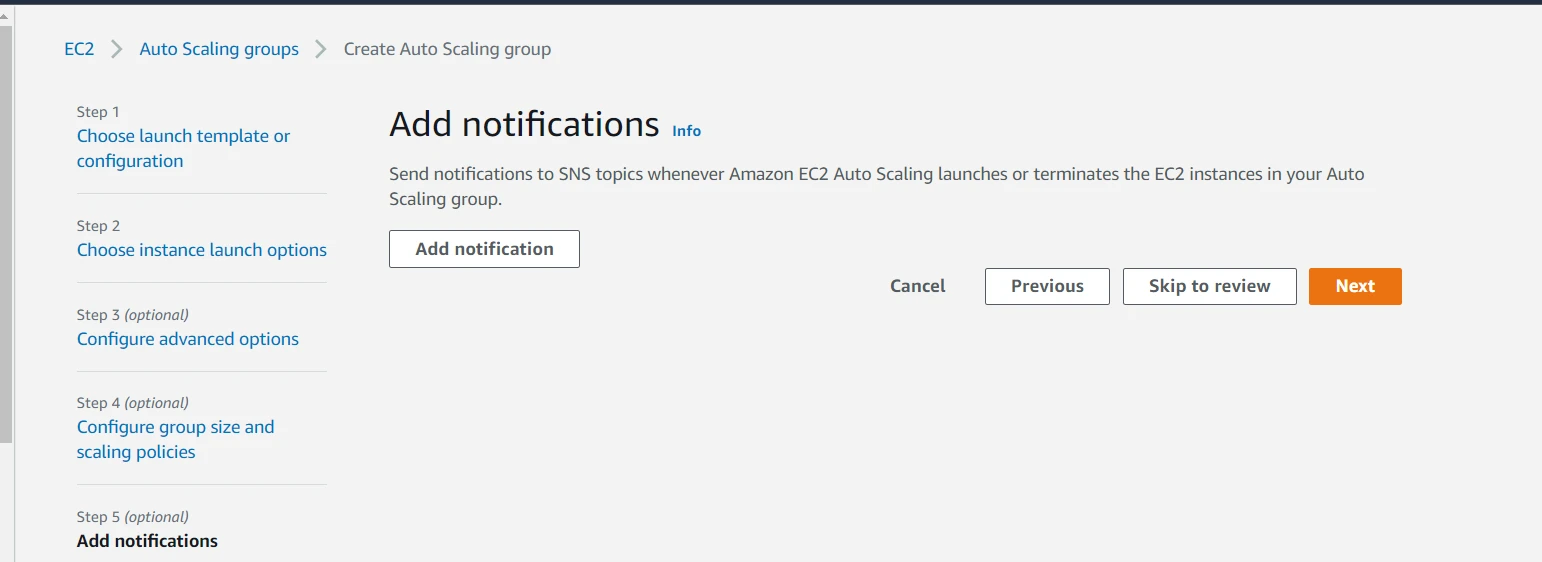

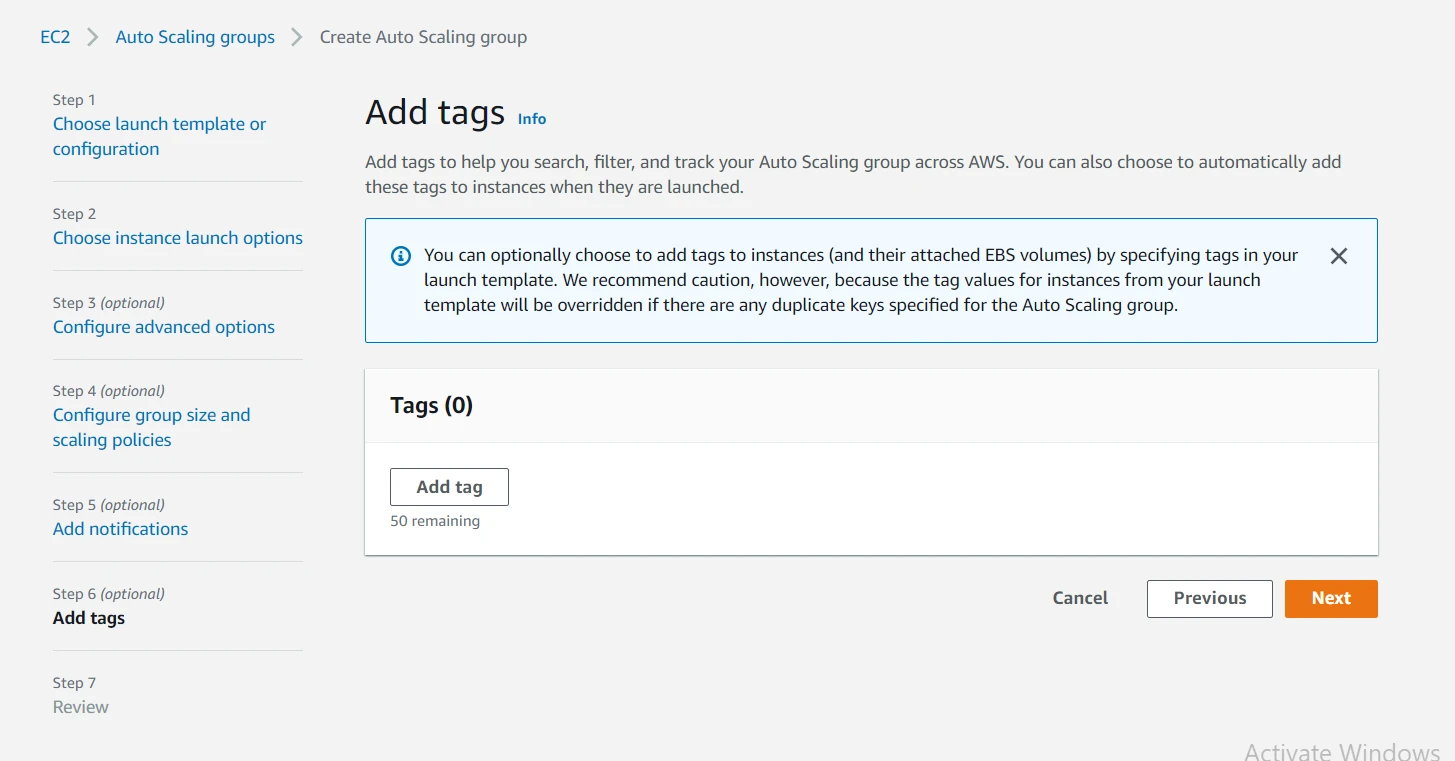

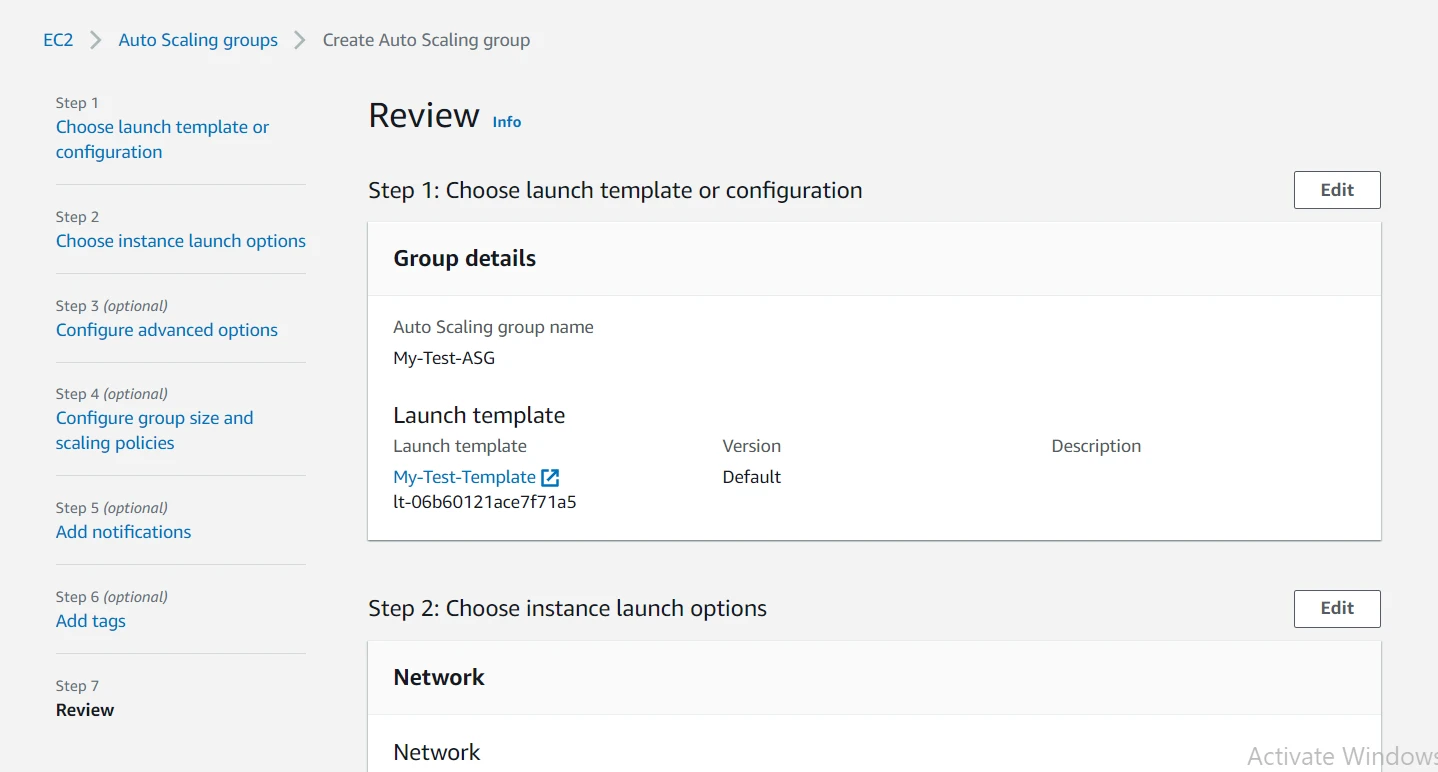

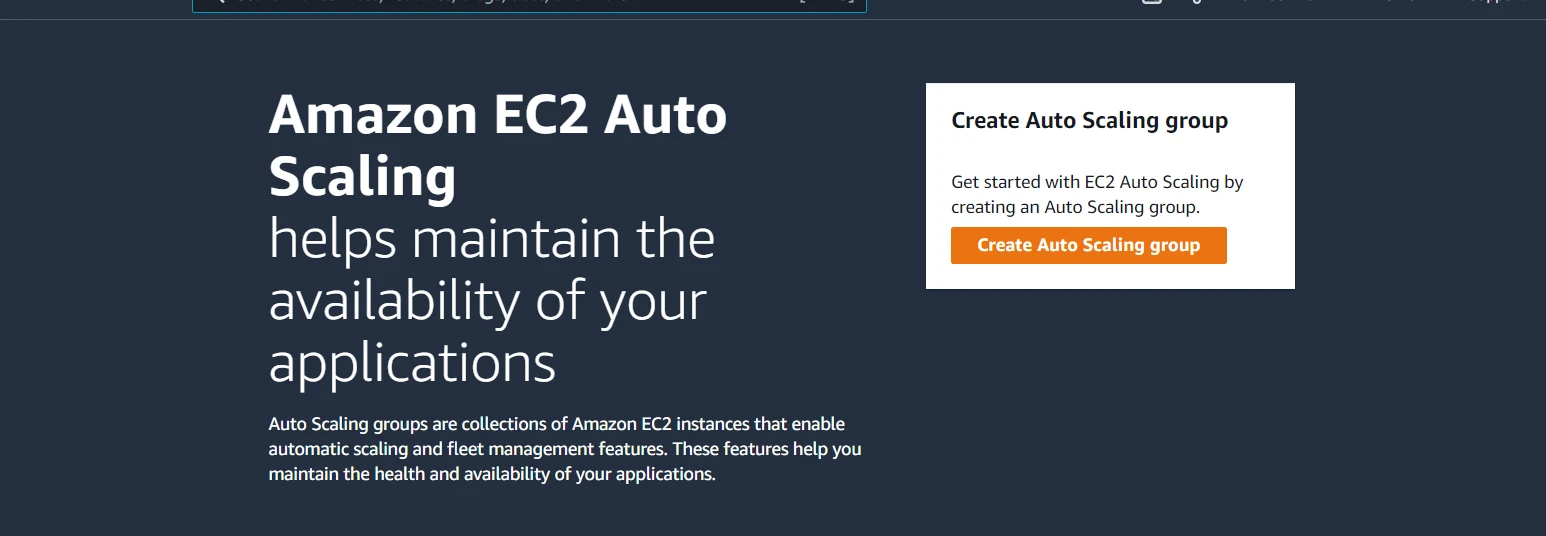

Creating an Auto Scaling Group in AWS

An Auto Scaling Group (ASG) allows you to automatically manage the number of EC2 instances running in your infrastructure. It ensures that the application always has the required number of instances to handle traffic while minimizing costs during low demand.

When you create an Auto Scaling Group, AWS continuously monitors the health and performance of the instances. Based on scaling policies and defined thresholds, the service launches or terminates instances automatically.

Prerequisites Before Creating an Auto Scaling Group

Before creating an Auto Scaling Group, some components must already be configured in your AWS environment.

Common prerequisites include:

• An Amazon Machine Image (AMI) that will be used to launch EC2 instances.
• A Launch Template or Launch Configuration defining instance parameters.
• A Virtual Private Cloud (VPC) and subnets where the instances will run.

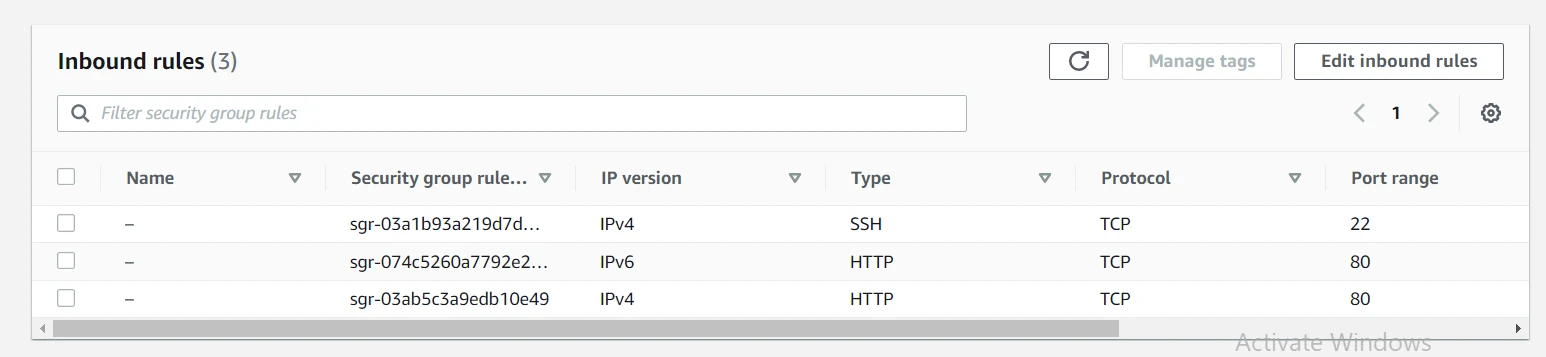

• A security group allowing required network access.
• An optional Elastic Load Balancer to distribute traffic across instances.

Having these components prepared ensures a smooth Auto Scaling configuration process.

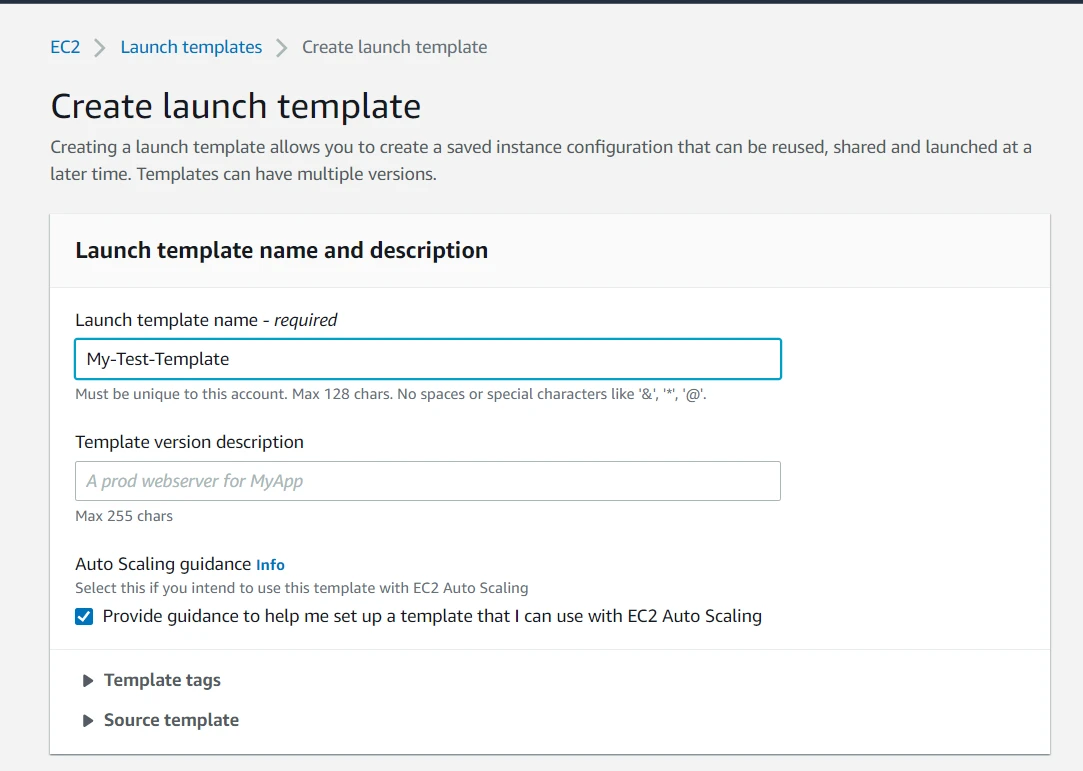

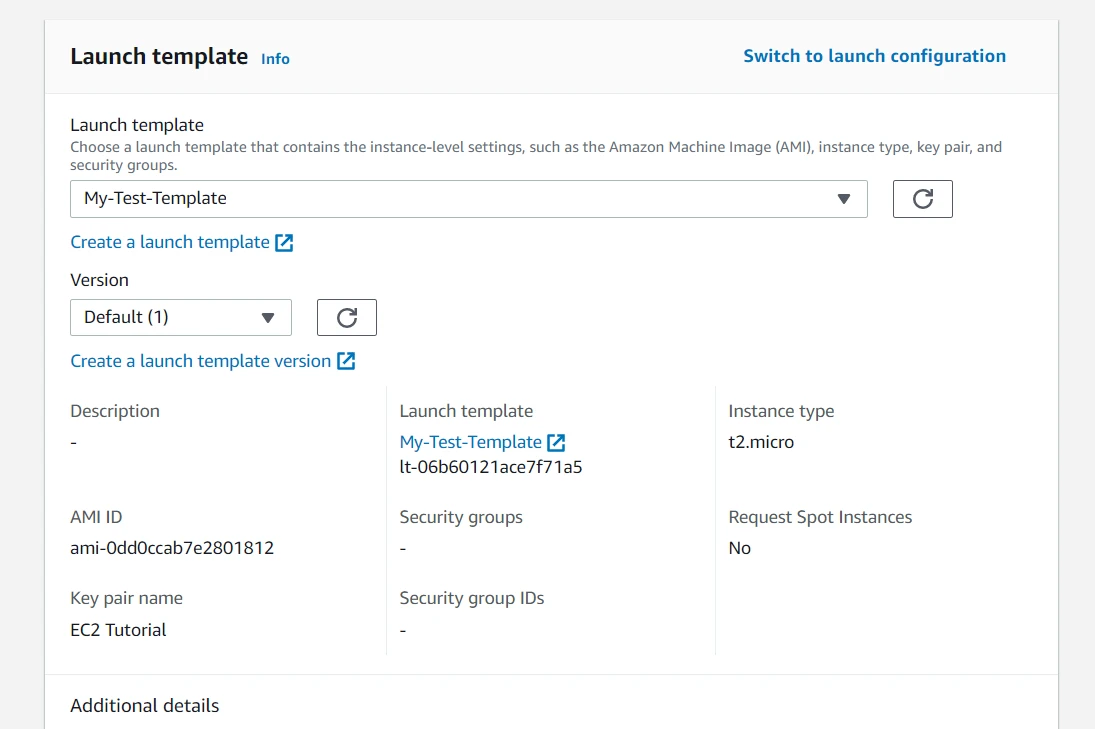

Launch Templates vs Launch Configurations

AWS allows two methods for defining how instances are launched: Launch Templates and Launch Configurations.

Launch Configurations were originally used for Auto Scaling but are now considered legacy. AWS recommends using Launch Templates because they provide additional features and flexibility.

Launch Templates support:

• Versioning of configurations
• Multiple instance types
• Advanced networking settings
• Integration with Spot Instances
• Improved security options

Because of these advantages, Launch Templates are the preferred approach for modern Auto Scaling deployments.

Selecting Instance Type and AMI

When configuring Auto Scaling, you must choose the instance type and Amazon Machine Image (AMI) used to launch new EC2 instances.

The AMI defines the base operating system and installed software, such as:

• Amazon Linux
• Ubuntu
• Windows Server
• Custom application images

The instance type determines the compute capacity of the instance, including CPU, memory, and networking performance.

For example:

• t2.micro or t3.micro are suitable for testing or small workloads.
• m5.large or c5.large are better suited for production environments requiring higher compute power.

Choosing the right instance type ensures efficient resource usage and optimal application performance.

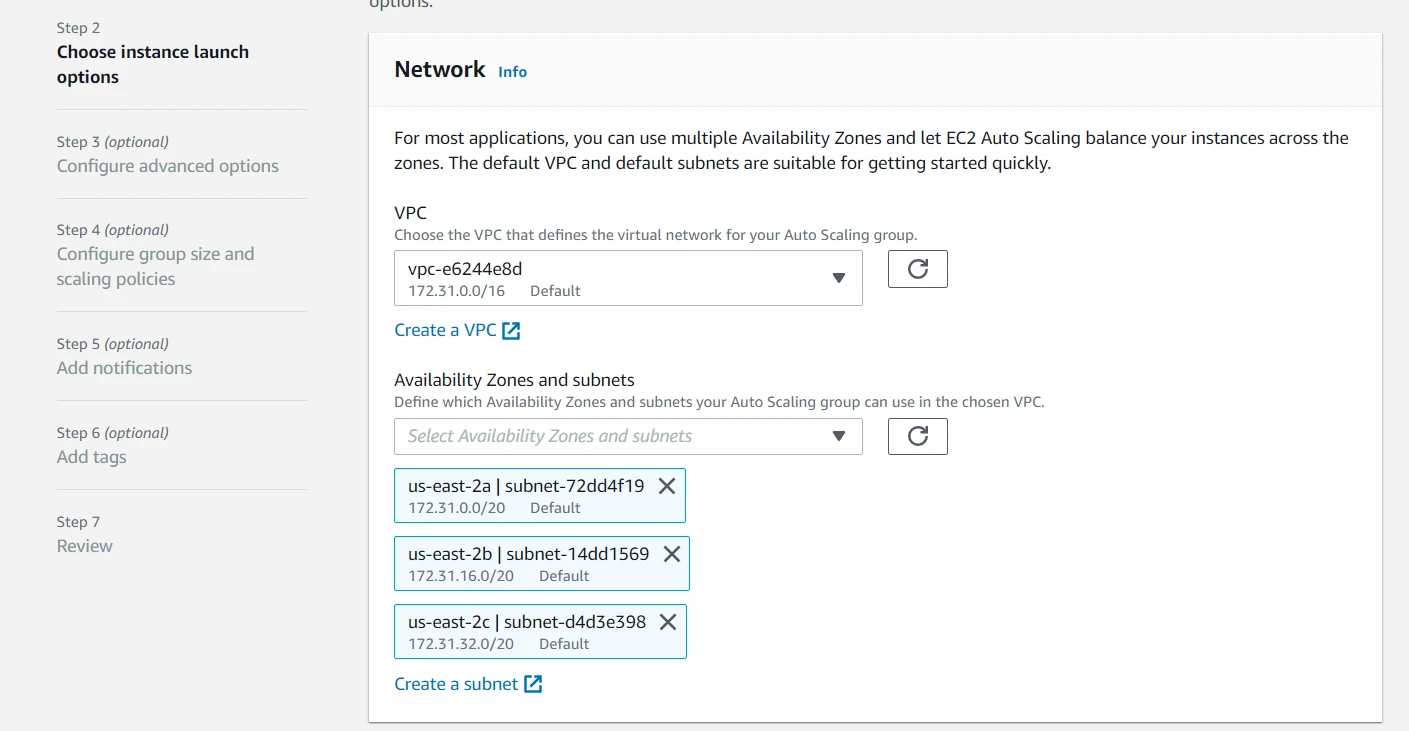

Configuring VPC, Subnets, and Availability Zones

Auto Scaling Groups operate within a Virtual Private Cloud (VPC). When creating the group, you must specify the subnets and availability zones where instances can be launched.

Using multiple availability zones provides several benefits:

• Improved fault tolerance
• Better traffic distribution
• Increased application availability

AWS automatically distributes instances across the selected availability zones to maintain balance and resilience.

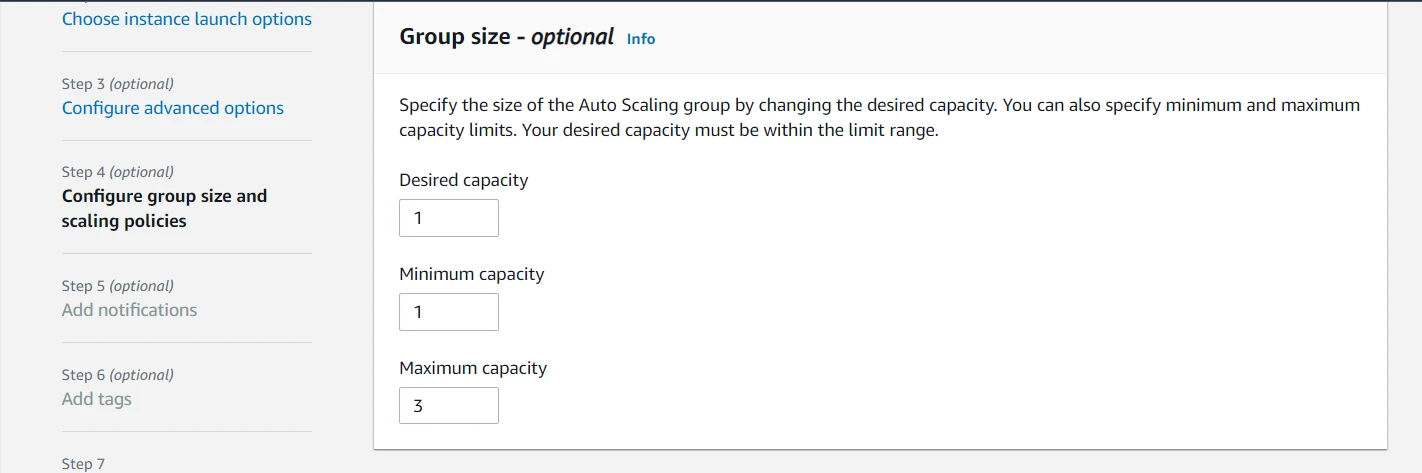

Setting Minimum, Maximum, and Desired Capacity

When creating an Auto Scaling Group, you must define three capacity parameters.

Minimum capacity
The minimum number of EC2 instances that must always remain running.

Maximum capacity
The upper limit of instances that the Auto Scaling Group can launch.

Desired capacity
The target number of instances that should currently be running.

For example:

• Minimum capacity: 1
• Desired capacity: 2
• Maximum capacity: 5

Auto Scaling adjusts the instance count between the minimum and maximum values based on demand.

AWS Auto Scaling Policies Explained

Scaling policies determine when and how the Auto Scaling Group increases or decreases the number of EC2 instances.

These policies monitor CloudWatch metrics and trigger scaling actions when predefined thresholds are reached.

Target Tracking Scaling Policy

Target tracking is the most commonly used scaling policy in AWS. It automatically adjusts the number of instances to maintain a target value for a specific metric.

For example, you can configure Auto Scaling to maintain average CPU utilization at 40%. If CPU usage increases beyond this threshold, new instances are launched. When utilization drops, instances are terminated.

This policy simplifies scaling because AWS automatically calculates the required capacity.

Step Scaling Policy

Step scaling allows you to define multiple scaling actions based on different metric thresholds.

For example:

• CPU utilization above 50% → add 1 instance
• CPU utilization above 70% → add 2 instances
• CPU utilization above 90% → add 3 instances

This policy provides more granular control over scaling behavior compared to target tracking.

Simple Scaling Policy

Simple scaling was one of the earliest scaling mechanisms in AWS. It allows scaling actions to be triggered based on a single CloudWatch alarm.

For example:

• If CPU utilization exceeds 60%, add one instance.
• If CPU utilization drops below 20%, remove one instance.

Although simple scaling is still supported, AWS generally recommends using target tracking or step scaling for better control.

Scheduled Scaling Policy

Scheduled scaling allows you to increase or decrease instance capacity at specific times.

This policy is useful when traffic patterns are predictable. For example:

• Increase instances during business hours.
• Reduce instances during nighttime.

By scheduling scaling actions in advance, you can ensure sufficient resources during peak hours while minimizing infrastructure costs.

Predictive Scaling Policy

Predictive scaling uses machine learning to forecast traffic patterns based on historical usage data.

AWS analyzes past workload patterns and predicts future demand. The system then automatically scales capacity in advance of expected traffic increases.

This approach helps ensure that resources are available before demand spikes occur.

AWS Auto Scaling Based on CPU Utilization

One of the most common scaling strategies is based on CPU utilization. This method automatically adjusts the number of instances depending on how heavily the CPU is being used.

If CPU usage rises beyond the defined threshold, Auto Scaling launches additional instances. When CPU usage drops, instances are terminated.

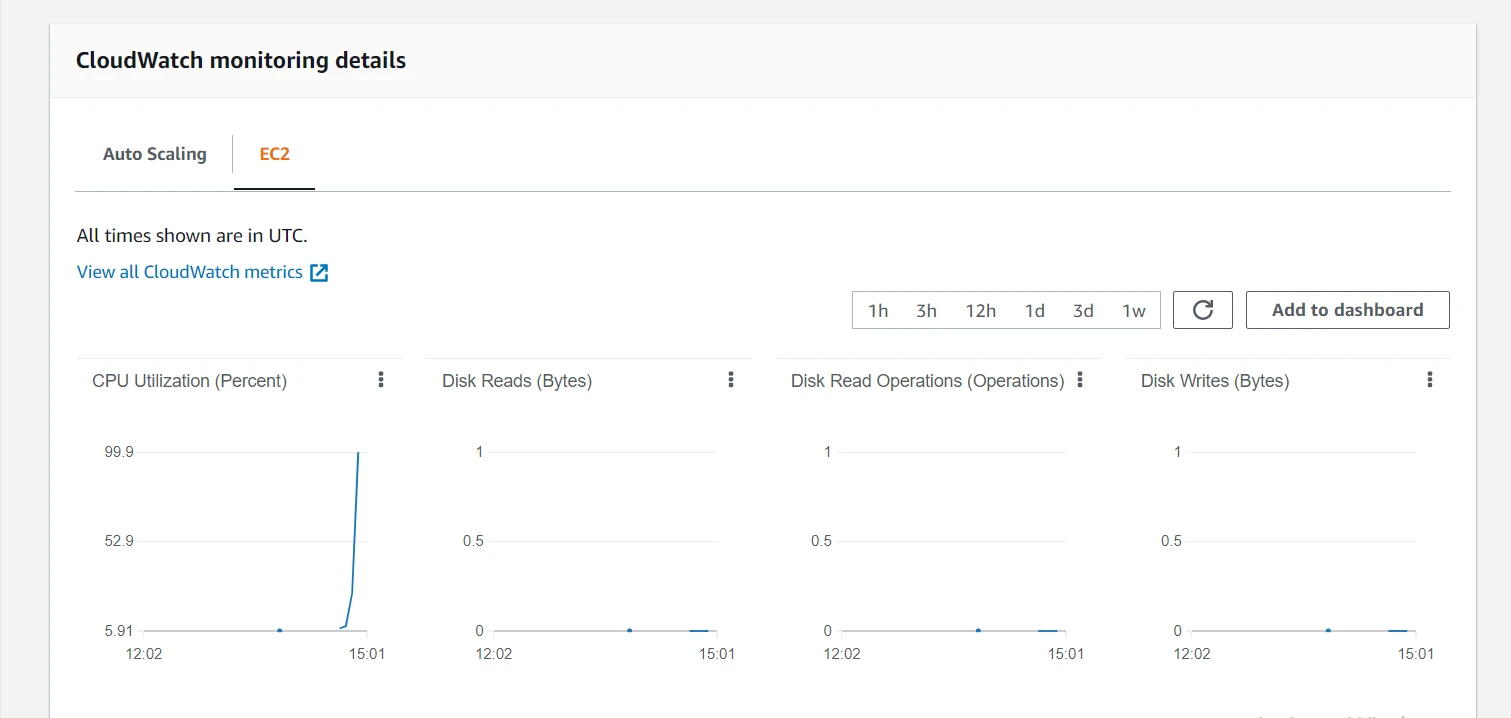

Using CPU Utilization as a Scaling Metric

CPU utilization is a widely used metric because it directly reflects how much processing power the application requires.

For example:

• CPU above 70% may indicate high traffic.
• CPU below 20% may indicate underutilized resources.

Auto Scaling monitors CPU utilization through CloudWatch metrics and triggers scaling actions accordingly.

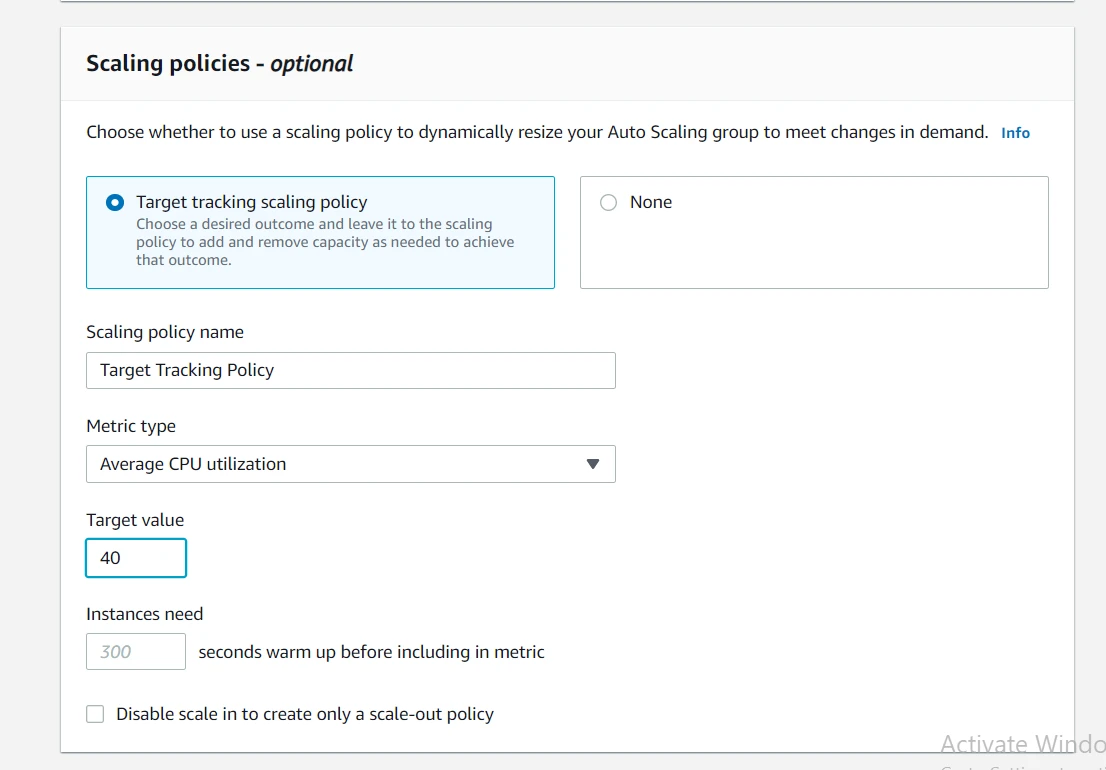

Setting Target CPU Utilization

With target tracking policies, you can define a desired CPU utilization percentage.

For example:

Target CPU utilization: 40%

This means the Auto Scaling Group will continuously adjust the number of EC2 instances so that the average CPU usage remains close to 40%.

If traffic increases and CPU rises above this threshold, additional instances are launched automatically.

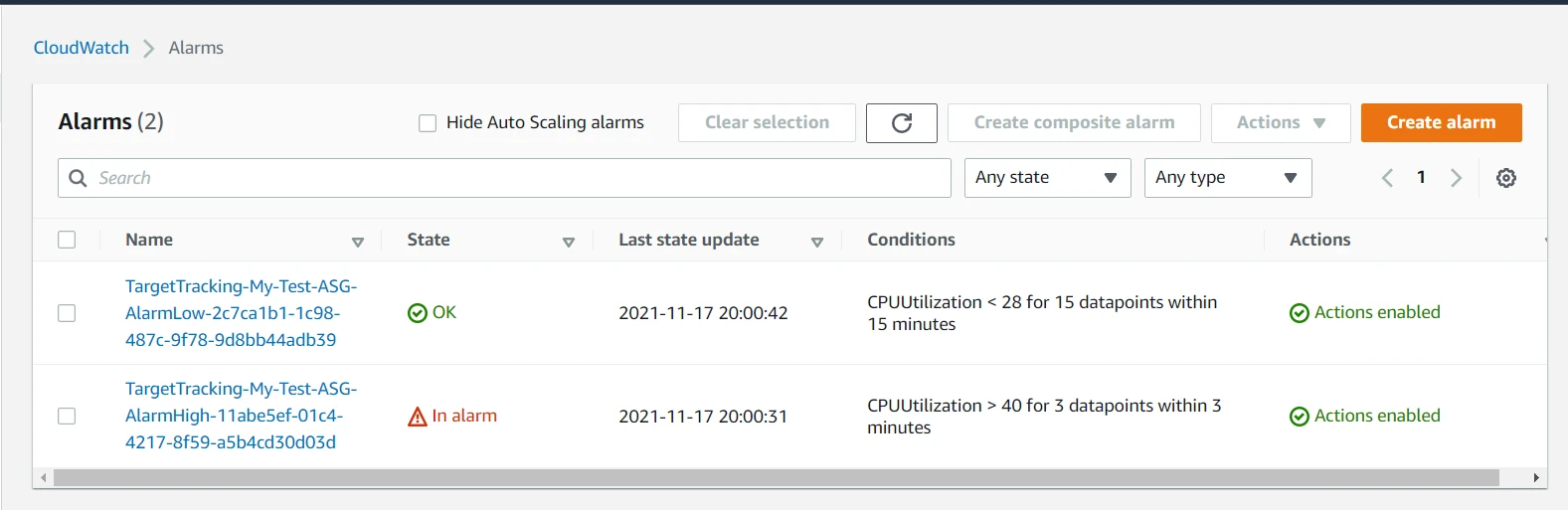

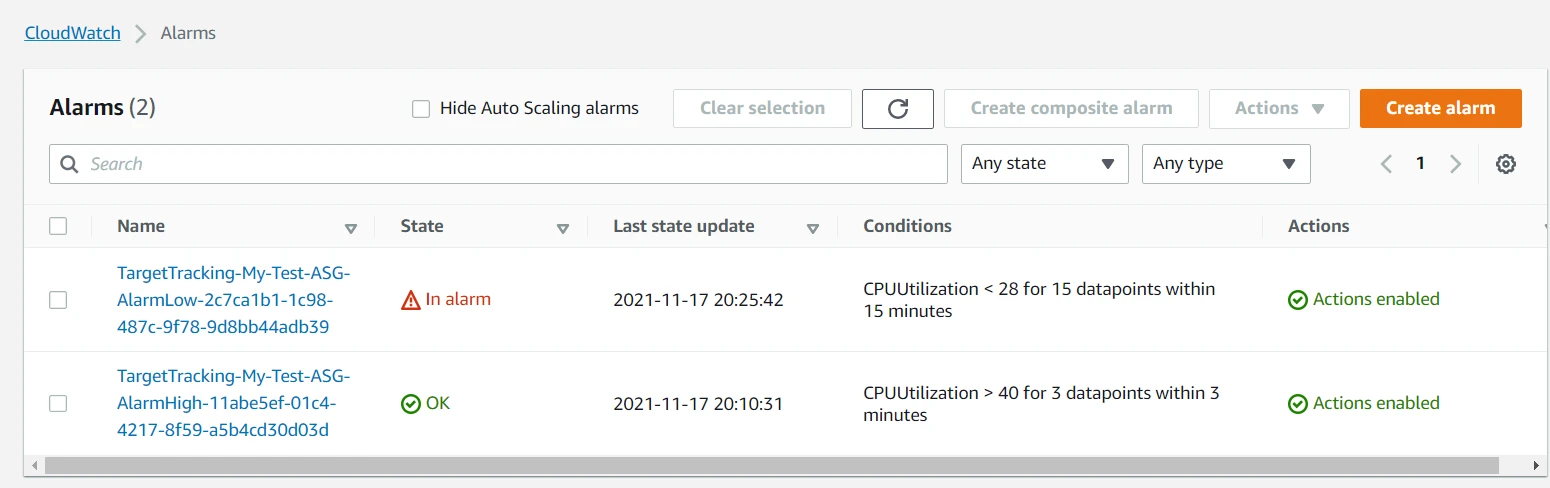

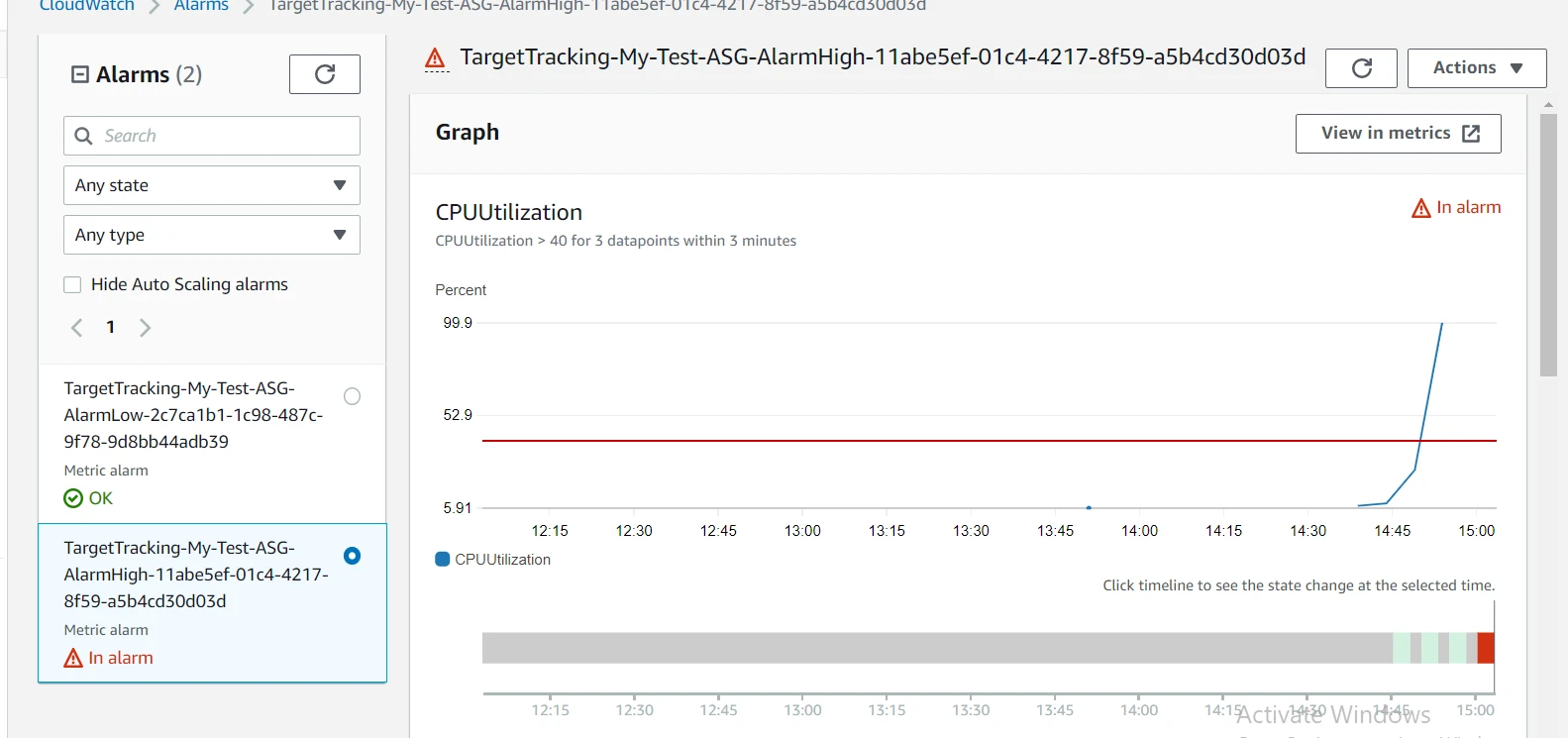

CloudWatch Alarms for Scaling

CloudWatch alarms are responsible for triggering scaling events.

When a monitored metric crosses the defined threshold, the alarm changes its state and initiates a scaling action.

Typical alarm configurations include:

• High CPU alarm to trigger scale-out events.
• Low CPU alarm to trigger scale-in events.

These alarms allow the Auto Scaling Group to react automatically to changing workloads.

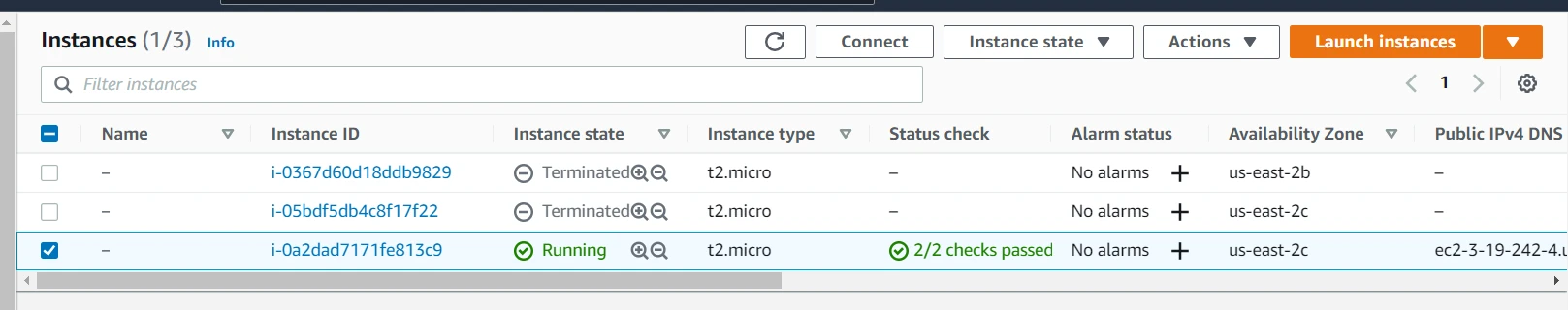

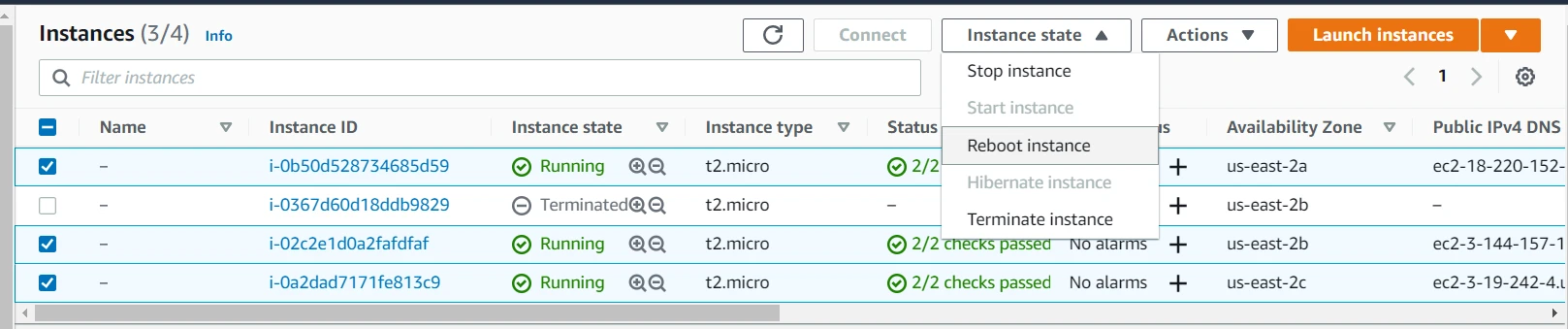

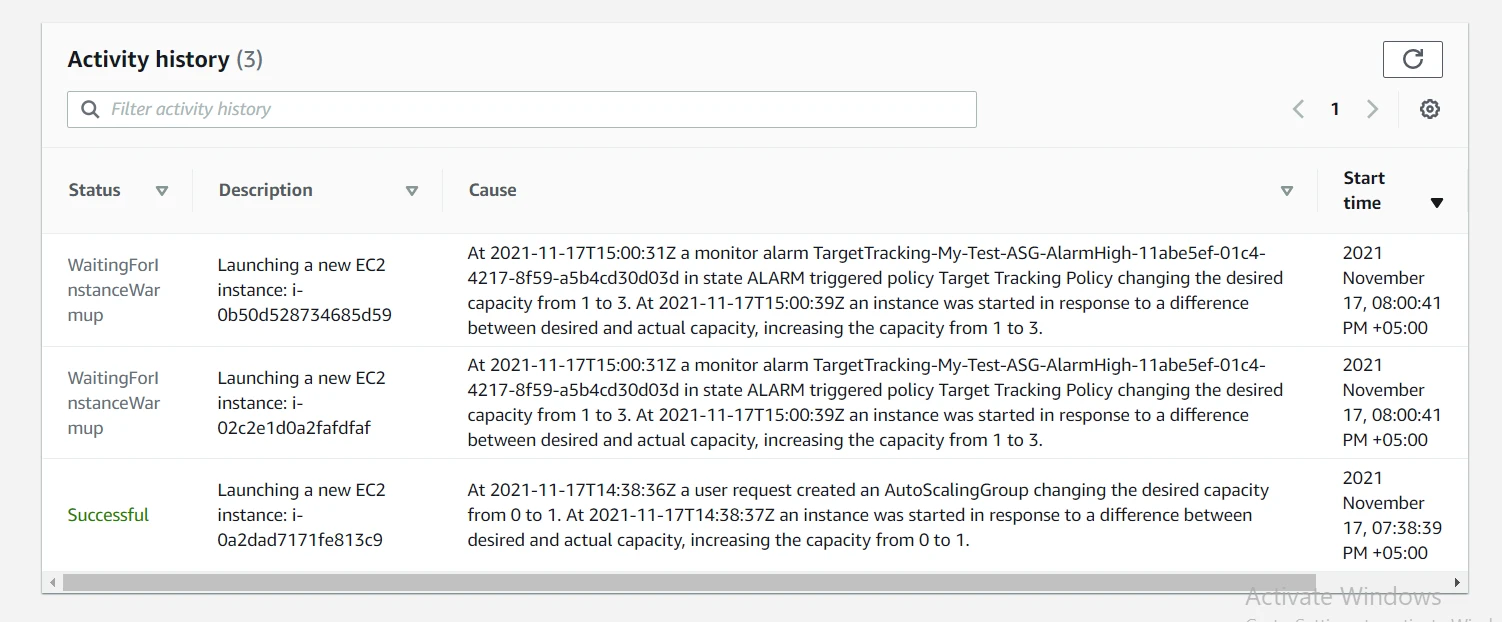

Scaling EC2 Instances Automatically

Once the scaling policies and CloudWatch alarms are configured, AWS automatically manages the lifecycle of EC2 instances.

The Auto Scaling service performs the following actions:

• Launch new instances when workload increases.
• Register new instances with the load balancer.
• Terminate unnecessary instances when demand decreases.
• Replace unhealthy instances automatically.

This automated process ensures that applications remain highly available while maintaining cost efficiency.

Using AWS CLI to Manage Auto Scaling Groups

AWS provides the AWS Command Line Interface (AWS CLI) to manage Auto Scaling resources directly from the terminal. Using CLI commands, administrators and DevOps engineers can automate infrastructure management tasks such as creating Auto Scaling groups, modifying capacity, or listing existing groups.

The CLI approach is commonly used in automation pipelines, infrastructure scripts, and CI/CD workflows where manual interaction through the AWS console is not practical.

List Auto Scaling Groups Using AWS CLI

You can list all existing Auto Scaling Groups in your AWS account using the following command:

aws autoscaling describe-auto-scaling-groups

This command returns detailed information about each Auto Scaling Group, including:

• Group name
• Desired capacity
• Minimum and maximum instance limits
• Launch template information
• Availability zones
• Health status of instances

You can also filter specific fields using query parameters if needed.

Create Auto Scaling Group Using AWS CLI

An Auto Scaling Group can be created using the AWS CLI by specifying the required parameters such as launch template, instance capacity, and network configuration.

Example command:

aws autoscaling create-auto-scaling-group \
  --auto-scaling-group-name my-auto-scaling-group \
  --launch-template LaunchTemplateName=my-template \
  --min-size 1 \
  --max-size 3 \
  --desired-capacity 1 \
  --vpc-zone-identifier subnet-12345

This command creates an Auto Scaling Group with:

• Minimum instance capacity of 1
• Maximum instance capacity of 3
• Initial desired capacity of 1 instance

Update Auto Scaling Group Capacity

If your application workload changes, you may need to adjust the capacity of the Auto Scaling Group.

You can update the desired number of instances using the following command:

aws autoscaling update-auto-scaling-group \
  --auto-scaling-group-name my-auto-scaling-group \
  --desired-capacity 2

This increases the desired capacity to two EC2 instances. The Auto Scaling service automatically launches the additional instance.

Delete Auto Scaling Groups

If an Auto Scaling Group is no longer required, it can be removed using the AWS CLI.

Example command:

aws autoscaling delete-auto-scaling-group \
  --auto-scaling-group-name my-auto-scaling-group

Before deleting the group, you may need to set the desired capacity to zero so that all running instances are terminated.

Monitoring AWS Auto Scaling

Monitoring is an important part of managing Auto Scaling infrastructure. AWS provides built-in monitoring capabilities through Amazon CloudWatch and Auto Scaling activity logs.

These tools allow administrators to track scaling events, instance health, and performance metrics.

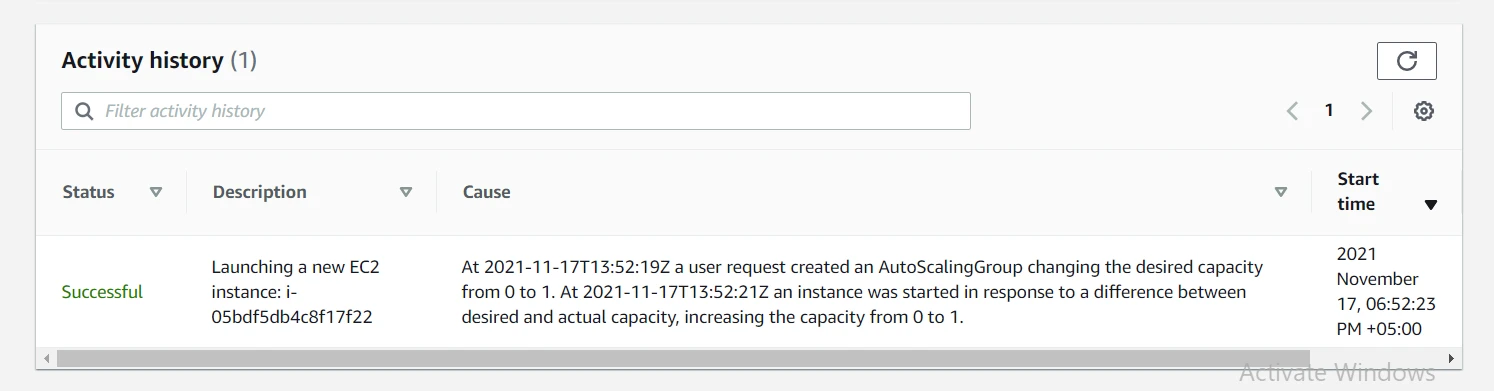

Viewing Auto Scaling Activity History

The Auto Scaling activity history records all scaling operations performed by the service.

This includes actions such as:

• Launching new instances
• Terminating instances
• Replacing unhealthy instances
• Updating scaling configurations

By reviewing the activity history, administrators can identify when scaling actions occurred and why they were triggered.

Monitoring Scaling Events in CloudWatch

Amazon CloudWatch continuously collects performance metrics from EC2 instances and other AWS resources.

These metrics are used by Auto Scaling policies to determine when scaling actions should occur.

Common metrics monitored include:

• CPU utilization
• Network traffic
• Request count
• Disk activity

CloudWatch dashboards allow you to visualize these metrics and understand workload trends over time.

Understanding Auto Scaling Metrics

Auto Scaling publishes several metrics that help administrators monitor scaling behavior.

Examples include:

• GroupDesiredCapacity – number of instances that should be running
• GroupInServiceInstances – number of healthy instances currently running
• GroupTotalInstances – total instances managed by the Auto Scaling Group

Monitoring these metrics helps ensure that the scaling policies are functioning correctly.

Debugging Failed Scaling Activities

Sometimes scaling events may fail due to configuration issues or resource limitations.

Common causes include:

• Incorrect launch template configuration
• Missing IAM permissions
• Insufficient EC2 instance quotas
• Invalid subnet or network settings

Checking the Auto Scaling activity history and CloudWatch logs can help identify the root cause of failed scaling operations.

AWS Auto Scaling Best Practices

Choose Proper Minimum and Maximum Capacity

Defining appropriate minimum and maximum capacity limits is important for balancing performance and cost.

• The minimum capacity ensures that a baseline number of instances is always available.
• The maximum capacity prevents uncontrolled scaling during unexpected traffic spikes.

Choosing realistic limits helps maintain predictable infrastructure behavior.

Use Launch Templates Instead of Launch Configurations

AWS recommends using Launch Templates rather than Launch Configurations for new deployments.

Launch Templates provide several advantages:

• Version control for configuration changes
• Support for multiple instance types
• Integration with advanced features such as Spot Instances
• Improved flexibility and security options

Using Launch Templates ensures better compatibility with modern AWS features.

Enable Health Checks for EC2 Instances

Auto Scaling can automatically replace unhealthy EC2 instances if health checks are enabled.

Health checks can be based on:

• EC2 instance status checks
• Load balancer health checks

When an instance fails a health check, Auto Scaling terminates it and launches a replacement instance automatically.

Avoid Rapid Scaling Events

Rapid scaling events can lead to instability and unnecessary infrastructure costs.

To prevent this issue:

• Configure cooldown periods between scaling actions.
• Use appropriate scaling thresholds.
• Avoid overly aggressive scaling policies.

This ensures that the Auto Scaling Group has enough time to stabilize before performing additional scaling operations.

Combine Auto Scaling with Load Balancers

Combining Auto Scaling Groups with Elastic Load Balancers is considered a best practice for highly available architectures.

Load balancers distribute incoming traffic across multiple instances, while Auto Scaling adjusts the number of instances based on demand.

This combination provides:

• Improved fault tolerance
• Automatic traffic distribution
• High availability across multiple availability zones

Troubleshooting AWS Auto Scaling Issues

Even with proper configuration, Auto Scaling Groups may sometimes not behave as expected. Instances might fail to scale up during high traffic, scale down when they should not, or health checks may repeatedly replace instances.

Troubleshooting Auto Scaling issues usually involves reviewing CloudWatch metrics, scaling policies, activity history, and instance health checks. Understanding how these components interact helps quickly identify the root cause of scaling problems.

Instances Not Scaling Up

If instances are not scaling up during increased workload, the most common cause is an issue with scaling policies or CloudWatch alarms.

Possible reasons include:

• CPU utilization or other monitored metrics have not crossed the defined threshold.
• Scaling policies are not correctly attached to the Auto Scaling Group.
• Maximum capacity limit has already been reached.
• CloudWatch alarms are not configured properly.

To troubleshoot this issue, review the CloudWatch alarm state, check Auto Scaling activity history, and confirm that the Auto Scaling Group has not already reached its maximum capacity.

Instances Not Scaling Down

Sometimes Auto Scaling Groups fail to reduce the number of instances even when the workload drops.

Common causes include:

• Minimum capacity setting prevents scaling below a certain number of instances.
• Cooldown periods delay scaling actions.
• CloudWatch metrics remain above the scale-in threshold.
• Instances are protected from scale-in.

To resolve this issue, verify the minimum capacity configuration, review scaling policies, and check whether instance protection has been enabled.

CloudWatch Alarm Not Triggering

CloudWatch alarms play a critical role in triggering Auto Scaling actions. If alarms do not change state, scaling events will not occur.

Possible reasons include:

• Incorrect metric configuration
• Wrong threshold values
• Insufficient evaluation periods
• Missing permissions or misconfigured policies

You can troubleshoot this issue by reviewing the alarm configuration, ensuring that the correct metric is monitored, and confirming that the alarm threshold values are appropriate for the workload.

Auto Scaling Health Check Failures

Health checks ensure that unhealthy instances are automatically replaced by the Auto Scaling Group.

Instances may repeatedly fail health checks due to:

• Application not responding on the expected port
• Incorrect security group rules
• Load balancer health check path misconfiguration
• Startup scripts taking too long to initialize services

To troubleshoot this issue, review the EC2 instance logs, verify load balancer health check settings, and confirm that the application service starts correctly when the instance launches.

Summary

AWS Auto Scaling helps automatically adjust the number of EC2 instances based on application demand. By using Auto Scaling Groups, CloudWatch metrics, and scaling policies, AWS environments can dynamically respond to changes in workload.

In this tutorial, we explored:

• How AWS Auto Scaling works
• Components of Auto Scaling Groups
• Creating and configuring Auto Scaling Groups
• Different scaling policies available in AWS
• Scaling EC2 instances based on CPU utilization
• Managing Auto Scaling Groups using AWS CLI
• Monitoring and troubleshooting Auto Scaling behavior

By implementing Auto Scaling correctly, organizations can maintain high availability, improved fault tolerance, and optimized infrastructure costs in their cloud environments.

Official Documentation

For more detailed information about AWS Auto Scaling and advanced configuration options, refer to the official AWS documentation:

• AWS Auto Scaling official documentation
• AWS Auto Scaling Group documentation
• AWS Auto Scaling CLI reference
• Amazon CloudWatch documentation
